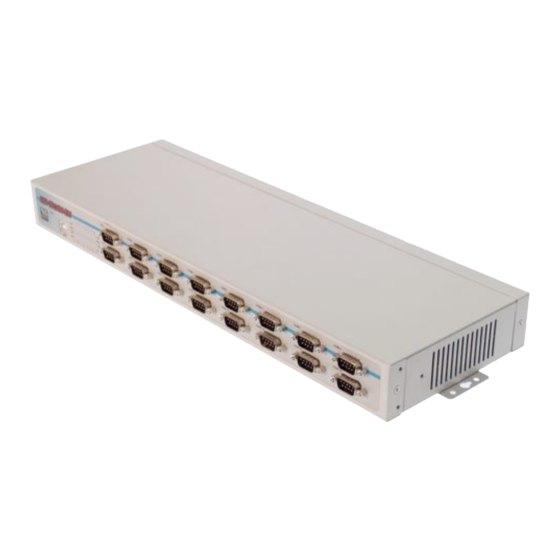

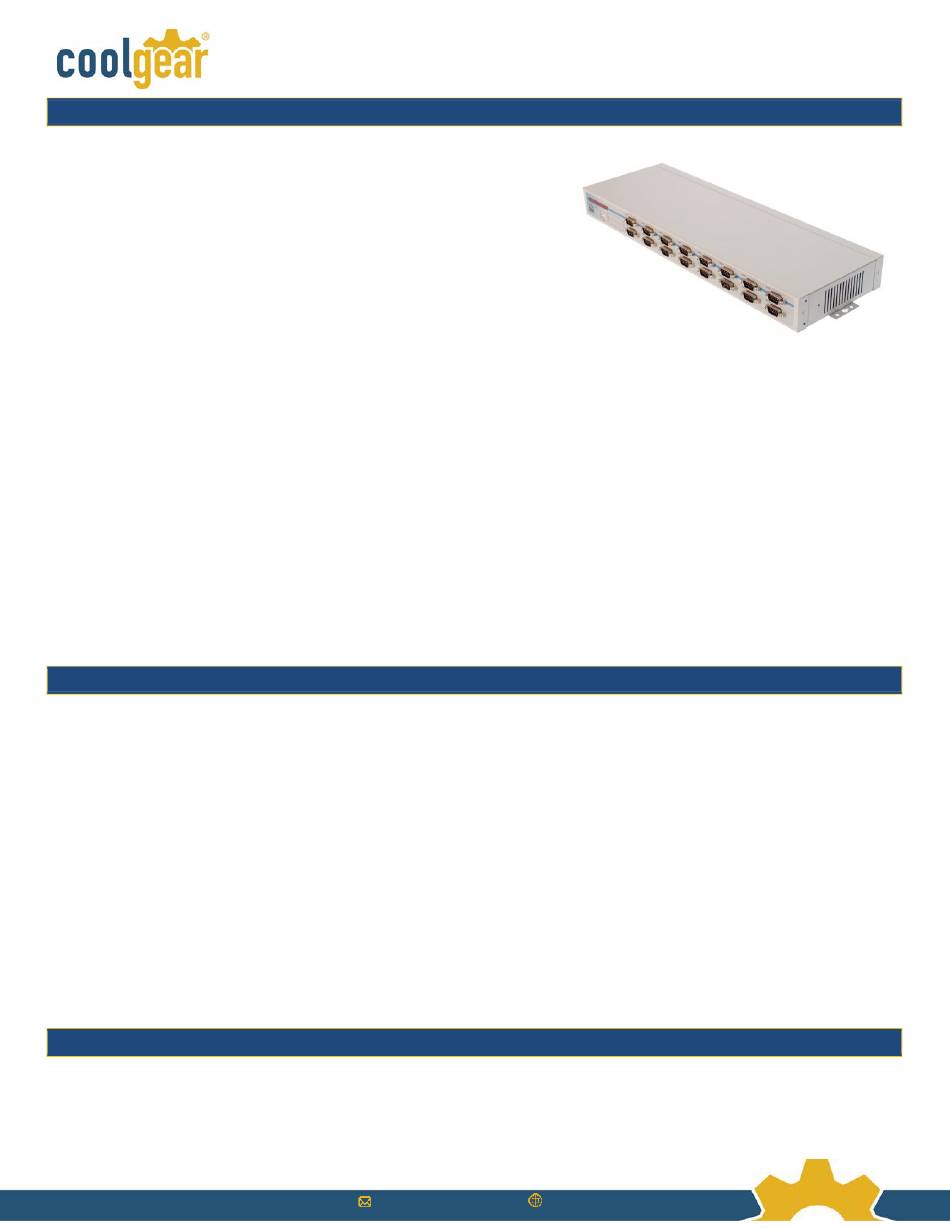

USB-16COMi-RM USB to Industrial 16-Port RS-232/422/485 Adapter User Manual
The USB to industrial 16-Port RS-232/422/485 Adapter is designed to
make serial port expansion quick and simple. Connecting to a USB port
on your computer or USB hub, the USB Serial Adapter instantly adds
16 RS-232/422/485 multi-electrical interface serial communication
ports to your system. By taking advantage of the USB bus, the USB-
16COMi-RM Adapter makes it easier than ever to add 16 serial ports
and serial devices to your system with easy plug-and-play and hot plug
features. Adapting the new technology, the serial port expansion now
takes the new bus with easy and convenient connectivity.
Plugging the USB 16-Port RS-232/422/485 Adapter to the USB port,
the adapter is automatically detected and installed. There are no IRQ
& COM port conflicts, since the port doesn't require any additional
IRQ, DMA, memory as resources on the system. The RS-232, or RS-422/485, port functions as native Windows COM port,
and it is compatible with Windows serial communication applications. Each port is individually configurable. The adapter
is designed with external switches to set RS-232, RS-422 or RS-485 ports and different operation modes conveniently.
There is no need to open the chassis to set the ports.
The USB Serial Adapter provides instant connectivity to RS-232, or RS-422/485, communication devices for factory
automation equipment, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals,
ATMs and serial communication in harsh environment. The USB to Serial Adapter is suitable for remote access, retail and
industrial application, data collection and other applications requiring high speed RS-232, or RS-422/485,
communication ports.
Features and Specifications
Adds sixteen high speed RS-232/ 422 / 485 serial ports via USB connection.
•
384 byte receive buffer.
•
128 byte transmit buffer for high speed data throughput.
•
Requires no IRQ, DMA, I/O port.
•
Data rates: 300 bps to 921.6K bps.
•
Serial Connector: one DB-9 male connector.
•
Auto transmit buffer control for 2-wire RS-485 half-duplex operation.
•
Termination resistors installed on-board.
•
RS-232 data signals: DCD, RxD ,TxD, DTR,GND,DSR,RTS,CTS.
•
RS-422 data signals: Tx-, Tx+, Rx+, Rx-, GND, RTS-, RTS+, CTS+, CTS-.
•
RS-485 data signals: Tx-, Tx+, Rx+, Rx-(4 wire) and data-, data+ (2 wire).
•
Monitor LEDs of TxD, RxD indicating port status.
•
AC 100V – 240V input for DC 5V, 4A switching power supply.
•
Virtual COM port drivers available for Windows 7, Vista, 2003, XP, 2000.
•
Power Supply
•
Input: AC 100V ~ 240V, 47 – 63 Hz.
• Output: DC 5.0V 4A.
