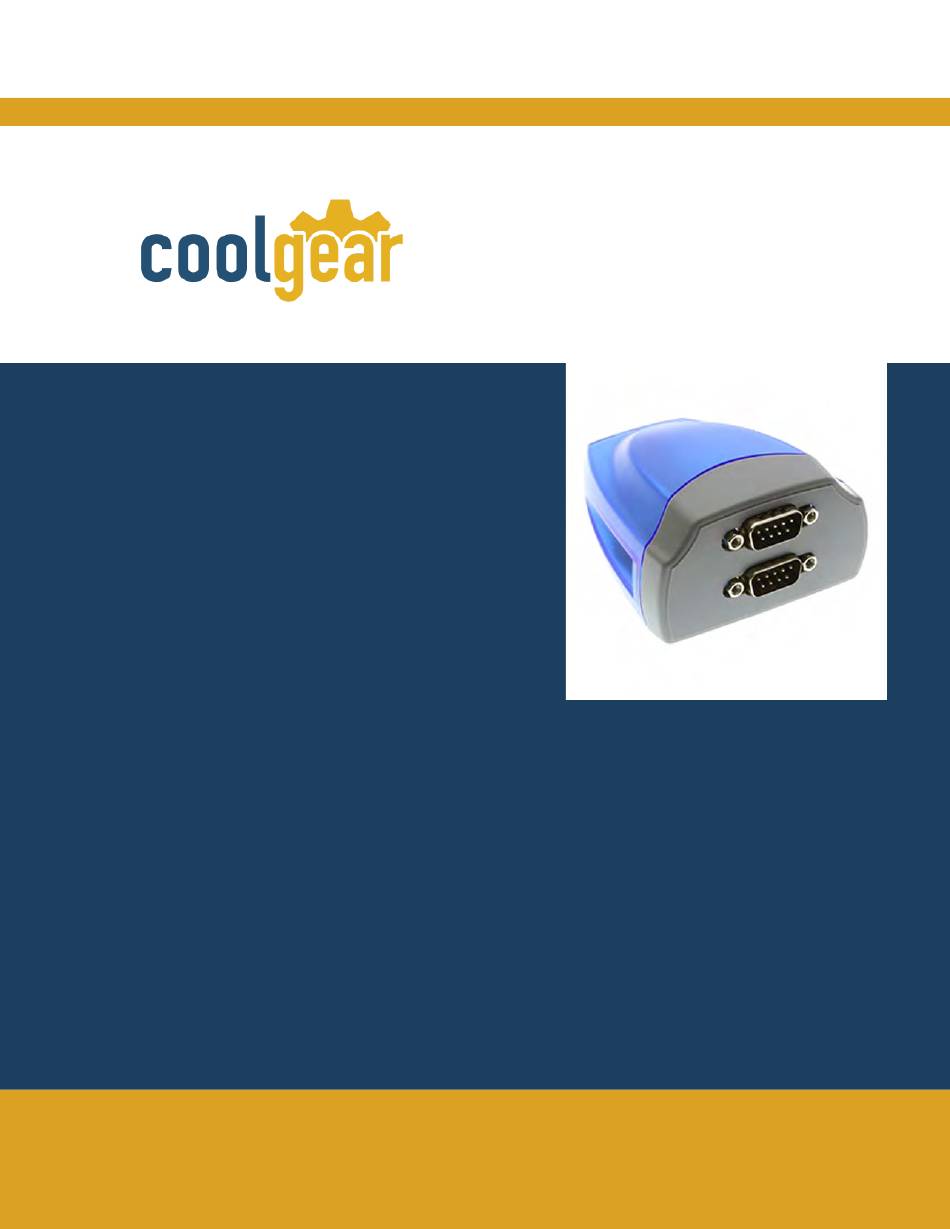

- Page 1 Dual Port USB to Serial RS-232 DB-9 Adapter Cable FTDI Chip Product Manual Coolgear, Inc. Version 1.1 September 2017 Model Number: XC-232-C www.coolgear.com...
-
Page 2: About This Document
Revision History Revision Date Author Comments 02/27/2018 Coolgear New Manual About this document This product manual outlines installation and features of the XC-232-C Dual Port USB to Serial RS-232 DB-9 Adapter Cable FTDI Chip. Scope The scope of this manual is to give the user of the product an understanding of its use with detailed diagrams and verbiage. -
Page 3: Table Of Contents
6. Supporting References ..................14 Table of Figures Figure 1 – Driver Installation……………….…………………………………………………………………….…..5 Figure 2, 3, 4, 5, 6, 7 – Uninstalling XP Drivers.……………………….…………………………….….…7-8 Figure 8, 9, 10, 11, 12 – Uninstalling Win7 Drivers……….…….………………………………..……9-11 Figure 13 – DB-9 Male Connector Pin-out…….………………………………………………..………….…12 www.coolgear.com... -
Page 4: Introduction
CTS, DSR, DTR, DCD, RI, GND changed to any COM port number • High speed serial port with the baud required rate up to 921.6K bps. • Works with USB 1.1 & 2.0 host port • Non-standard baud rates supported www.coolgear.com... -
Page 5: Windows 7 / Vista / 2003 / Xp / 2000 Driver Installation
5. After the message “FTDI CDM Driver installation process completed” appears, press “Enter” to complete the driver installation. 6. Plug in the USB to Serial Adapter to the USB port of your computer. Windows will finish installing the driver files. www.coolgear.com... -
Page 6: Check Installation
2. The “USB COM Series Driver and Utility CD” dialog box appears. 3. Under “Driver Uninstalling”, double click “Windows 2003, XP, 2000 driver uninstall” to uninstall the device driver. 4. When following dialog box appears, double click “Clean System” to uninstall the 2003/XP/2000 drivers. www.coolgear.com... -
Page 7: Figure 2, 3, 4, 5, 6, 7 - Uninstalling Xp Drivers
5. You need to disconnect all USB-COM-I from your PC, when the message below appears. Double click “OK” to start uninstalling Windows 2003/XP/2000 USB to Serial drivers. Figure 3 6. Double click “Yes” to confirm it. Figure 4 7. Click “No” to proceed. Figure 5 www.coolgear.com... - Page 8 12. Click “Change/Remove” and “Yes” to remove the first Windows Driver Package. 13. Remove the second “Windows Driver Package – FTDI CDM Driver Package (…)”. 14. Click “Change/Remove” and “Yes” to remove the second Windows Driver Package. 15. Reboot the computer to complete the driver uninstall. www.coolgear.com...
-
Page 9: Uninstalling Windows 7 Or Vista Drivers
3. Select “Classic View” from the top left hand corner and then “System” from the list. 4. Select “Device Manager” from the top left hand corner. Figure 8 5. Locate your device under the ports (COM & LPT) section and right click on it to bring up the menu shown. Figure 9 www.coolgear.com... - Page 10 Note: if you have more than one USB-COM-1 installed in your PC, you need to repeat from step 5 to step 6 to delete the driver software for each port. 7. Locate your Device under the Universal Serial Bus Controllers section, and right click on it to bring up the menu shown. Figure 11 www.coolgear.com...
- Page 11 “OK”. Figure 12 Note: if you have more than one USB Serial Converter installed in your PC, you need to repeat step 7 and step 8 to delete the driver software for all devices. www.coolgear.com...
-
Page 12: Rs-232 Db-9 Male Connector Pin-Out Diagram
XC-232-C – Product Manual 4. RS-232 DB-9 Male Connector Pin-out Diagram Figure 13 4.1 RS-232 Signal Pin-outs Assignment Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 www.coolgear.com... -
Page 13: Notes, Tips, And Warnings
• Do not disassemble the product. Handling the product’s internal components can expose it to ESD (Electro-Static Discharge) hazards that can affect the function of the device. • If this product is not functioning properly, email our support team at support@coolgear.com. www.coolgear.com... -
Page 14: Supporting References
© 2017 Coolgear, Inc. All Rights Reserved. All products and accompanying digital documentation including images are the property and / or trademarks of Coolgear Inc. Coolgear Inc. are continuously improving upon its products. Product specifications are subject to change without notice.
