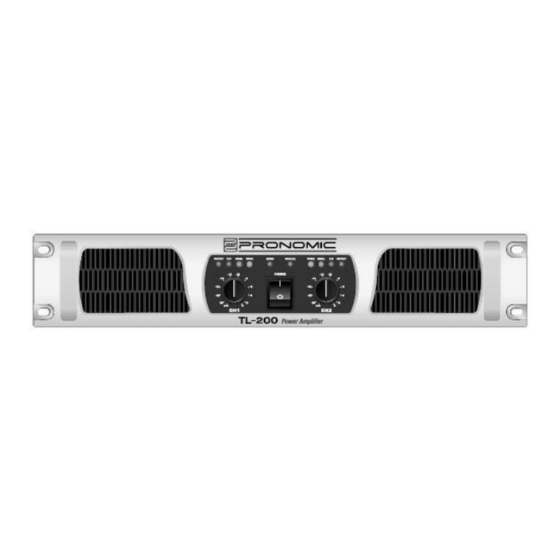

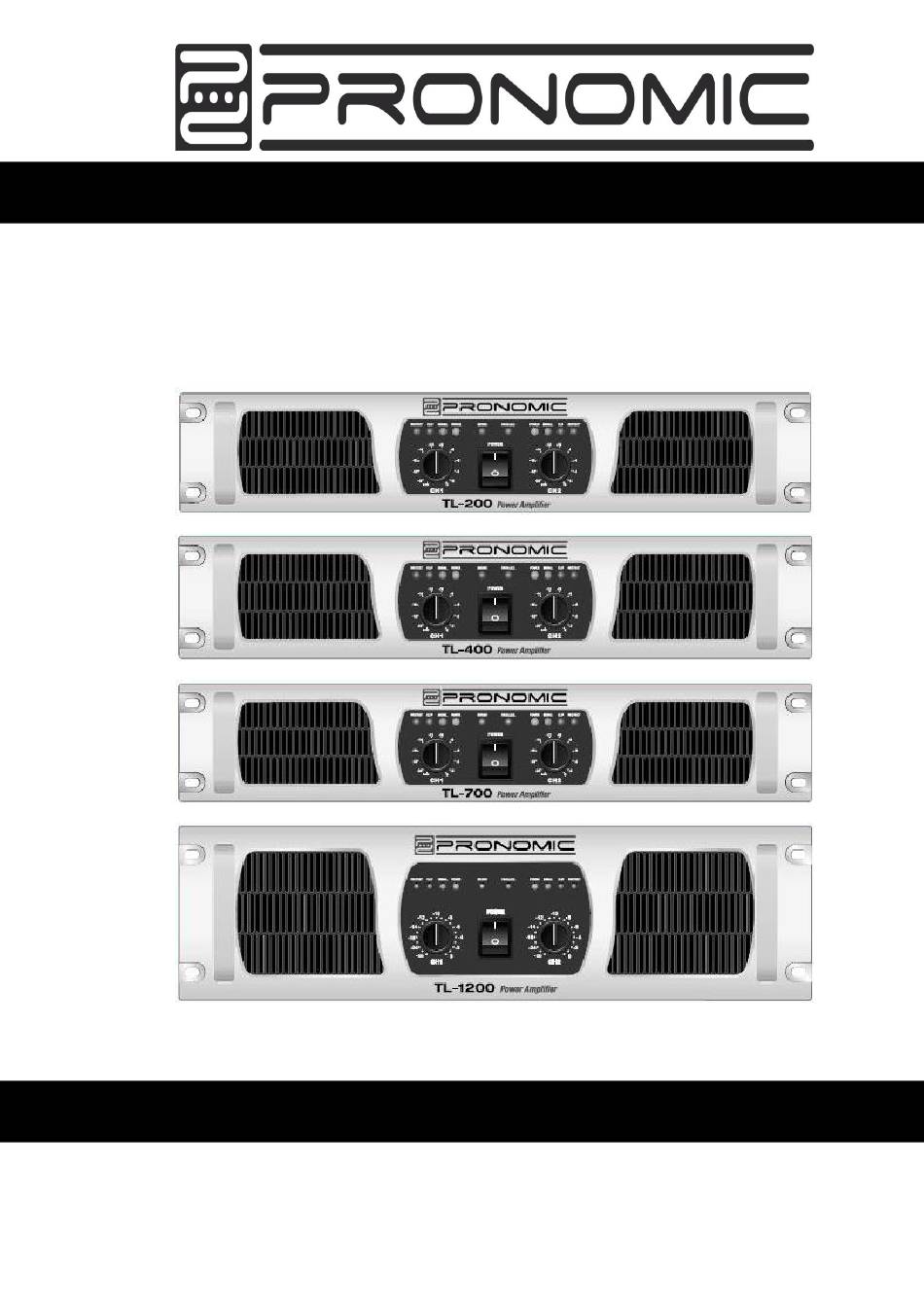

Pronomic Amplifier TL 200, TL 400, TL 700, TL 1200
Art. Nr.: TL 200: 00063864
TL 400: 00021732
TL 700: 00021733
TL 1200: 00021734
Operating Manual
Revision: *-06-2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pronomic TL 200

Summary of Contents for Pronomic TL 200

  • Page 1 Pronomic Amplifier TL 200, TL 400, TL 700, TL 1200 Art. Nr.: TL 200: 00063864 TL 400: 00021732 TL 700: 00021733 TL 1200: 00021734 Operating Manual Revision: *-06-2020...

  • Page 2: Table Of Contents

    Intended Purpose ....................3 Intended Use ......................4 Important Safety Instructions ................4 Installation and Operation ..................4 Power Amplifier TL 200, TL 400; TL 700 ............5 Power Amplifier TL 1200 ................. 11 Block Diagram ....................18 Specifications ..................... 19 CLEANING &...
  • Page 3 Other product, brand or company designations specified in this document are possibly the trademarks of their respective owners. Compliance with all applicable copyright laws is the responsibility of the user of this document. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...

  • Page 4: Product Description

    Using other voltages than specified can cause irreparable damage to the unit. The device must be connected directly to the mains. Do not use dimmer or controllable power supply. Scope of Delivery User manual Power amplifier of the TL series Power cable Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...

  • Page 5: Safety

    Connections Before using the unit, ensure that your mains voltage corresponds to voltage indicated on the unit. Intended Purpose The power amplifiers of the TL series are designed for standard 19-inch rack- mounting. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...

  • Page 6: Intended Use

    Installation and Operation Carefully open the shipping box and check the contents for any obvious damage. Each amplifier of the Pronomic TL series is fully tested before leaving the factory and should arrive in perfect condition. If you find any damage, immediately notify the shipping company.

  • Page 7: Power Amplifier Tl 200, Tl 400; Tl 700

    Power amplifier TL series Power Amplifier TL 200, TL 400; TL 700 Disconnect the unit from the power supply before installation. FRONT ON / OFF SWITCH SIGNAL-LED-INDICATORS to turn the device on or off. These LEDs are light up to confirm the...
  • Page 8 So whatever at any sensitivity, it is recommended to use compressor to avoid clipping. 14. OUTPUT CONNECTIONS FOR SPEAKERS The connections are described under the model name. Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...
  • Page 9 Check that the power amplifier is not overloaded when setting this mode. Connect the input signal to the CH-1 input to bypass the mono operation. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...
  • Page 10 Observe the following wiring diagrams for connecting the loudspeakers. The manufacturer assumes no liability for loudspeakers that have been damaged by improper wiring, improper use of the power amplifier or by overcurrent. Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...
  • Page 11 Set the MODE SELECTOR (16, on the back of the device) to the "PARALLEL" position. The input signal from CH-1 is passed on to the input of CH-2. Connect the input / output lines properly as shown in the illustration above. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...
  • Page 12 "BRIDGED". Connect the input / output lines properly as shown in the illustration above. The signal will be output in CH-1. Turn the volume control of channel "2" counterclockwise until it stops. Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...

  • Page 13: Power Amplifier Tl 1200

    "BRIDGE"-MODE is set the clip LED goes out. This avoids distortion in the sound image and "PARALLEL"-LED-INDICATORS prevents damage to the connected These LEDs are lit when the speakers. "PARALLEL"-MODE is set 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...
  • Page 14 So whatever at any sensitivity, it is recommended to use compressor to avoid clipping. 14. UR CHANNEL OUTPUTS The connections are described under the model name. Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...
  • Page 15 4-ohm loudspeaker, the mains fuse can blow during prolonged overload. Check that the power amplifier is not overloaded when setting this mode. Connect the input signal to the CH-1 input to bypass the mono operation. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...
  • Page 16 Observe the following wiring diagrams for connecting the loudspeakers. The manufacturer assumes no liability for loudspeakers that have been damaged by improper wiring, improper use of the power amplifier or overcurrent. Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...
  • Page 17 Check if the power amplifier is switched off. Set the MODE SELECTOR (16, on the back of the unit) to the middle position "STEREO". Connect the input / output lines properly as shown in the illustration above. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...
  • Page 18 Check if the power amplifier is switched off. Set the MODE SELECTOR (16, on the back of the unit) to the "PARALLEL" position. Connect the input / output lines properly as shown in the illustration above. Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...
  • Page 19 "BRIDGED". Connect the input / output lines properly as shown in the illustration above. The signal will be output in CH-1. Turn the volume control of channel "2" counterclockwise until it stops. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...

  • Page 20: Block Diagram

    Power amplifier TL series Block Diagram Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...

  • Page 21: Specifications

    N WEIGHT IG WEIGHT (Kg) 18.5/20 22.5/24 26/27.5 33/36 CLEANING & MAINTENANCE Never immerse the unit in any liquid. Regularly remove the dust from the inside of the device with compressed air through the ventilation openings. 2022-11-21 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734...

  • Page 22: Simplified Eu Declaration Of Conformity

    Distributors and dealers are not agents of Musikhaus Kirstein GmbH and have no authority to bind Musikhaus Kirstein GmbH legally in any way. Musikhaus Kirstein GmbH Bernbeurener Str. 11 86956 Schongau – Germany Telefon/Phone: 0049-8861-909494-0 Telefax/Fax: 0049-8861-909494-19 Pronomic TL Serie / ArtNr.: 00063864/00021732/00021733/00021734 2022-11-21...
