Assembly Instructions

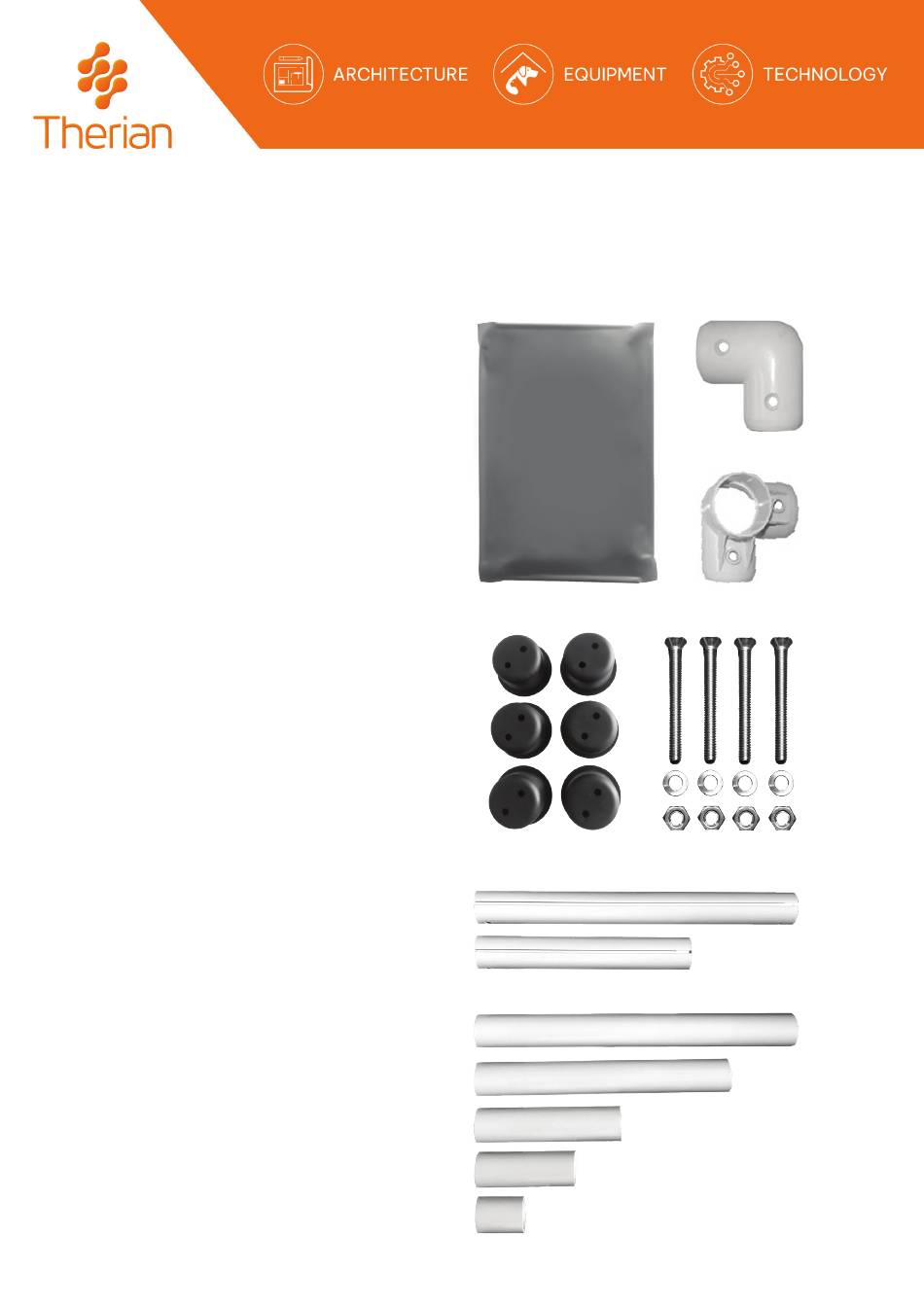

5 Tier Cat Tower Parts
Parts List
• (A) 5 x Vinyl Fabrics
• (B) 6 x Leg Caps
• (C) 6 x Top Corners
• (D) 34 x Bottom Corners
• (E) 40 x Screws
• (F) 40 x Nuts
• (G) 40 x Washers
Tier Pipes - With Channels
• (H) 10 x 41cm (16") Tier Pipe
• (I) 10 x 27.7cm (11") Tier Pipe
Leg Pipes - No Channels
• (J) 4 x 41cm (16") Leg Pipe
• (K) 2 x 31.7cm (12.5") Leg Pipe
• (L) 2 x 21.5cm (8.5") Leg Pipe
• (M) 6 x 17.8cm (7") Leg Pipe
• (N) 6 x 8.2cm (3") Leg Pipe
Needed:
• Flat Surface To Work On
• Phillips Head Screwdriver
• Adjustable Wrench or Pliers
• Optional: Rubber Mallet
(A) Vinyl Fabrics
(B) Leg Caps
Tier Pipes
(L) 21.5cm
(M) 17.8cm
(N) 8.2cm
Leg Pipes
(C) Top Corners
(D) Bottom Corners
(E)
Screws
(G)
Washers
(F) Nuts
(H) 41cm
(I) 27cm
(J) 41cm
(K) 31.7cm
1
