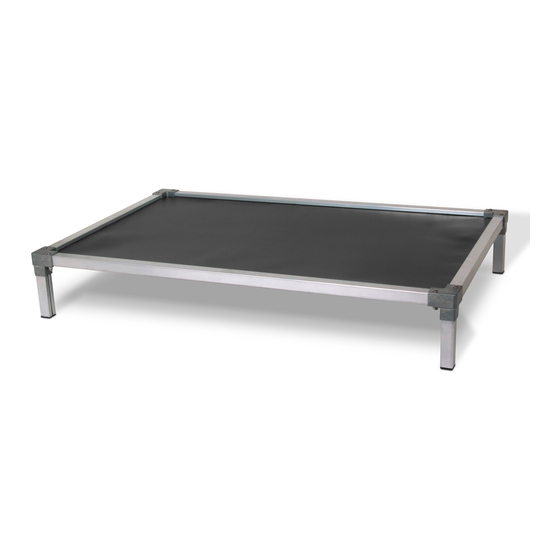

Therian All-Aluminium Kuranda Bed Assembly Instructions

Assembly Instructions For All-Aluminium Kuranda Bed

TOOL NEEDED :

#2 Phillips Head Screwdriver
7/16 Wrench or Pliers or Adjustable Wrench
Flat surface on which to work (table preferred)

PARTS LIST:

1 Fabric Mat (40oz Vinyl or Ballistic Nylon)
4 lengths of Alum slotted pipe (2 long & 2 short)
4 Alum legs, 4 Leg caps
4 top corner brackets & 4 bottom corner brackets
8 machine screws & 8 lock washers and 8 hex
nuts, 4 set screws for aluminium bottom corner
4 pieces plastic cording for the sleeves of the
Ballistic Nylon fabric
NOTE: Heat Welded 40oz Vinyl fabrics have the
cording already encased in outer edge of fabric.

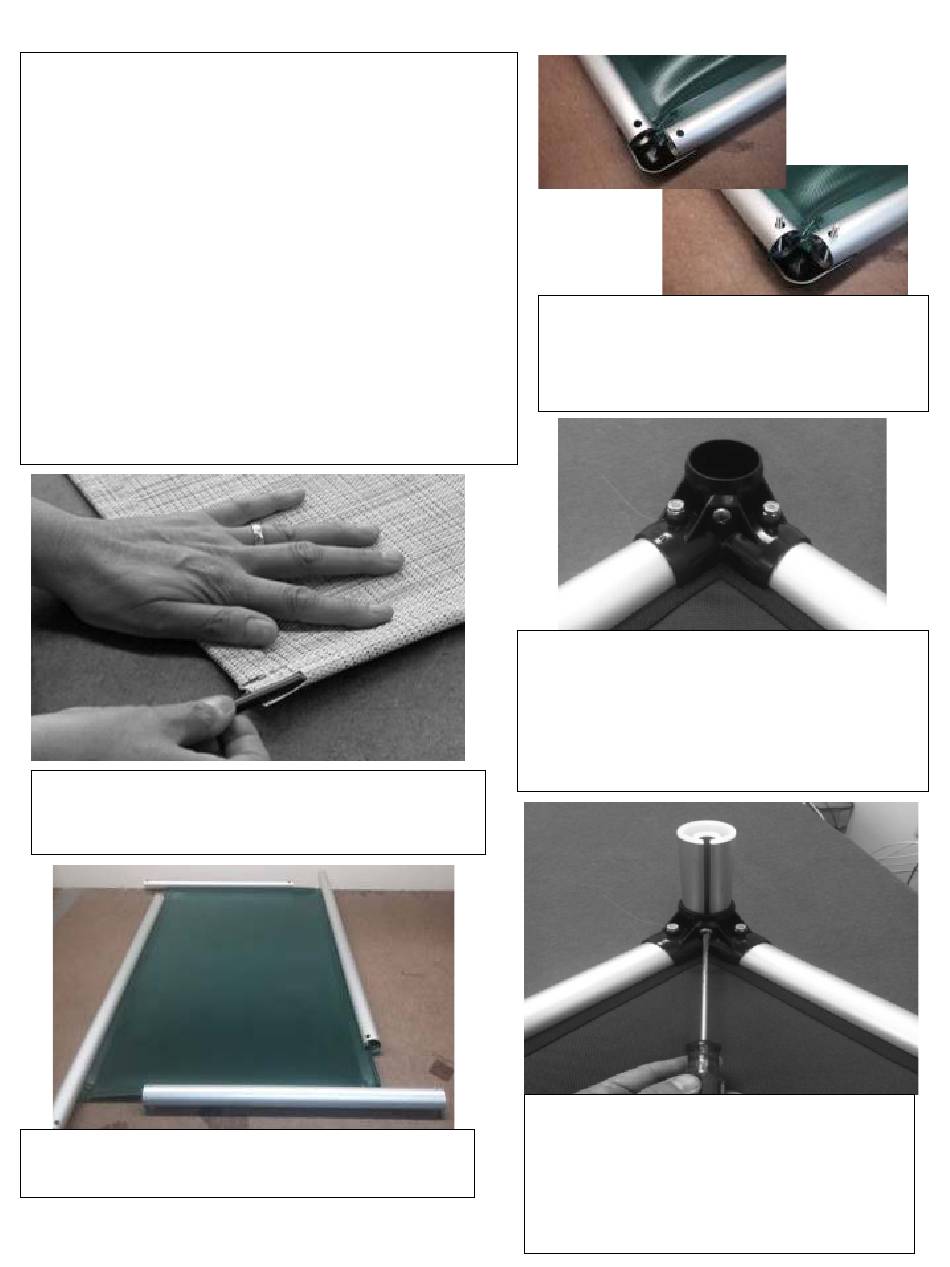

Lay fabric flat with underside facing up and
insert cording into sleeve. Note that 40oz
Vinyl fabric comes with cording in the sleeve.
Insert fabric sleeves into the channel on each
length of pipe.
Comments or Questions? Call Therian on
1800-251-766 or 07 5657-6777
Continuing to work with the underside
of the fabric facing up, position one top
corner bracket and insert bolts through
bracket and pipe.
Place a bottom corner bracket over
pipes, insert bolts through openings,
secure with lock washers and hex nuts
1
and hand tighten.
second bolt. Repeat process at each of
other three corners.
2
Place rubber caps on legs and insert
legs into bottom corner. Rotate leg so
slot aligns with set screw hole. Secure
in place with set screw. This is
purposely a tight fit so it will take some
effort to fully tighten screws.
3
4
Insert and secure
5
