Assembly Instructions For Kuranda Bunk Beds
Tools Needed – Phillips Head Screwdriver, 7/16 Wrench or Adjustable Wrench
Flat surface to work on (table preferred)

Parts List-

2 Fabric Mats
8 PVC or Alum slotted pipe (4 long / 4 short)
4 bunk legs
4 PVC or Alum crate legs – 4 leg caps
4 top corners – 8 bottom corners
8 machine screws, 8 pan head screws (2 ¾"), 16 lock nuts
8 pieces white plastic cording (shipped inside bed frame Ballistic & Vinyl Weave fabrics)
(Note: there may be extra parts so the beds can be used individually or as a bunk bed.)

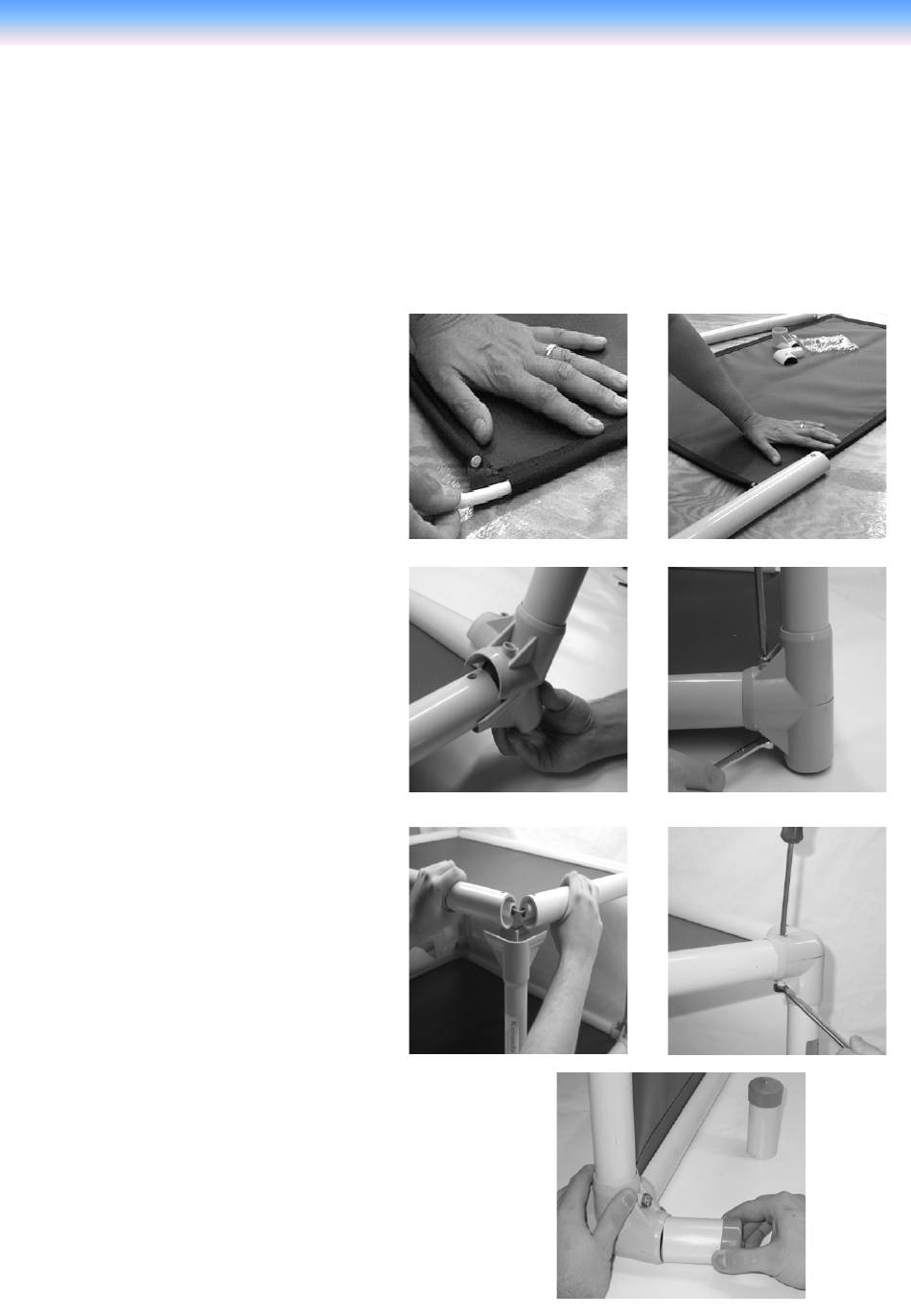

1.
Lay fabric flat with underside facing up and
insert cording into sleeves.
NOTE: Heat welded fabrics have the cording
already encased in outer edge of fabric.
2. Insert fabric into the channel on each length of
pipe.
3.
On bottom bed fabric, Secure two bottom
corners (as oriented in the picture below) with
pan head screws and lock nuts. You can
insert the bunk post into the corner as well.
4. Tighten bolts, be careful not to over tighten.
5. Check top corners to be sure they are square.
Set top fabric with pipe sleeves on top of upper
corners. Screw top corners into place using
machine screws and locknuts.
6. Place rubber caps on crate legs and insert legs into
corners.
1
3
5
2
4
