Resi E4300 Setup Instructions

Server-Grade E4300 Encoder - Setup Instructions

Connect Your Cables

○ Plug in A/C power, ideally through uninterruptible power (UPS) and a voltage regulator.
○ Plug in a DHCP network connection to the Ethernet port(s). If a Static IP is necessary
please contact Resi so one can be set for you, though, we recommend using MAC-based IP
Reservation on your router and leaving the encoder as DHCP. Do not use an Ethernet cable
with the clip removed; the cable should not easily pull out.
○ Provide video signal source(s) with embedded audio. The SDI ports are for production

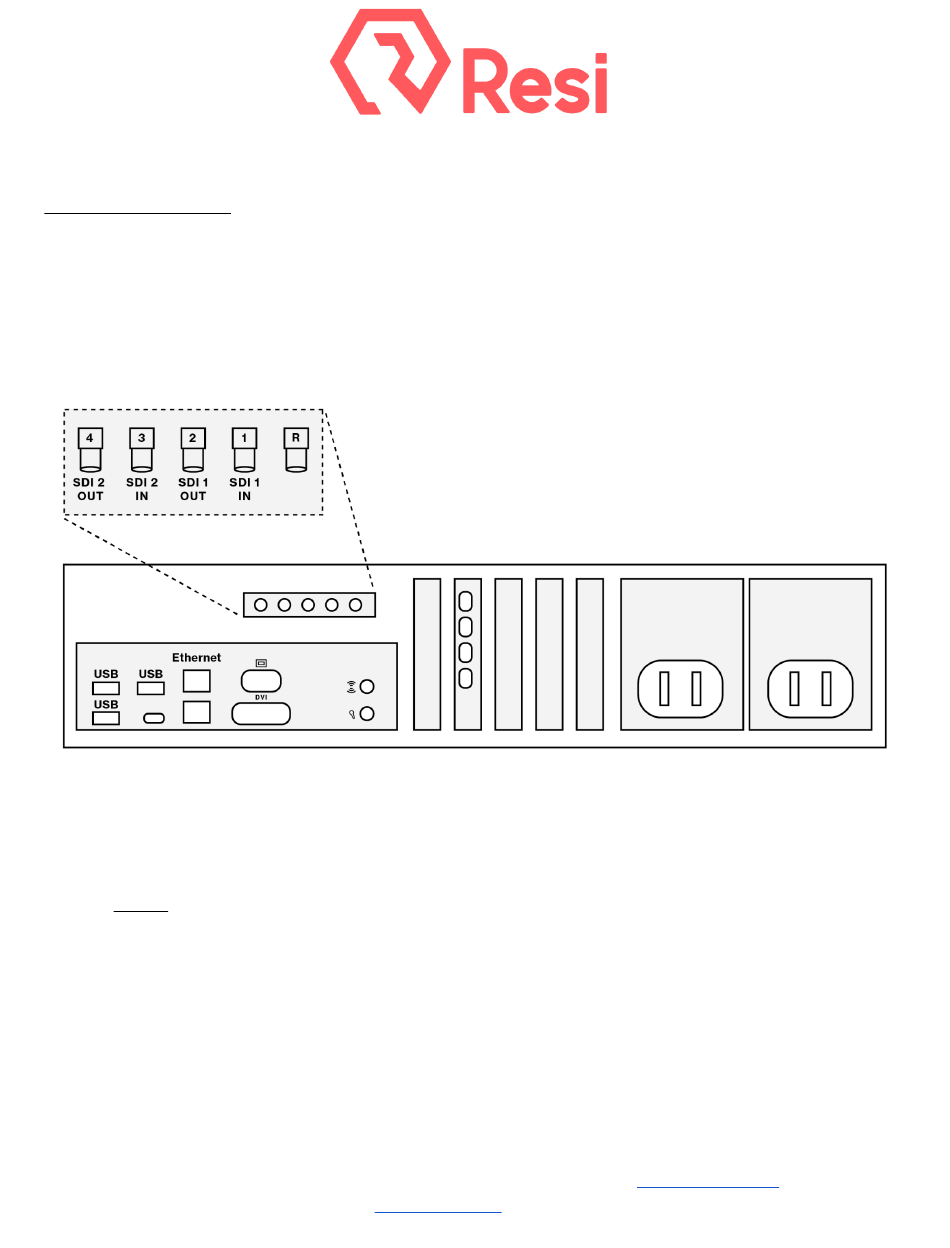

video and embedded audio. The SDI interface layout is as follows:
○ Connect signal source(s) to SDI 1 IN and SDI 2 IN as indicated above. Use SDI 1 IN if only
using one channel of video. Reference video is not necessary.
*Important note about embedded audio: If you are using a BlackMagic Design ATEM 4K Switcher to embed
audio, ensure the switcher's firmware is version 7.1.2 or above.
○ Connect the Live Encoding Monitor SDI 1 OUT and SDI 2 OUT as indicated above.
*NOTE: The Live Encoding Monitor is not a Loop Out where the input signal is continually
present on the output connector. In the case of the E4300, these outputs will only display (or
loop) the input signal when the unit is actually encoding. The advantage is that the operator is
aware that the unit is encoding by the presence of a signal on this connector.
○ Connect the monitor emulator to a video port on the GPU PCI card (not the motherboard
I/O) for permanent installation. This may have been done already.
○ No monitor or keyboard is needed; you will not login to the device itself. Instead, you will
use a web interface to control the encoder (see below).
