Server-Grade Decoder - Setup Instructions

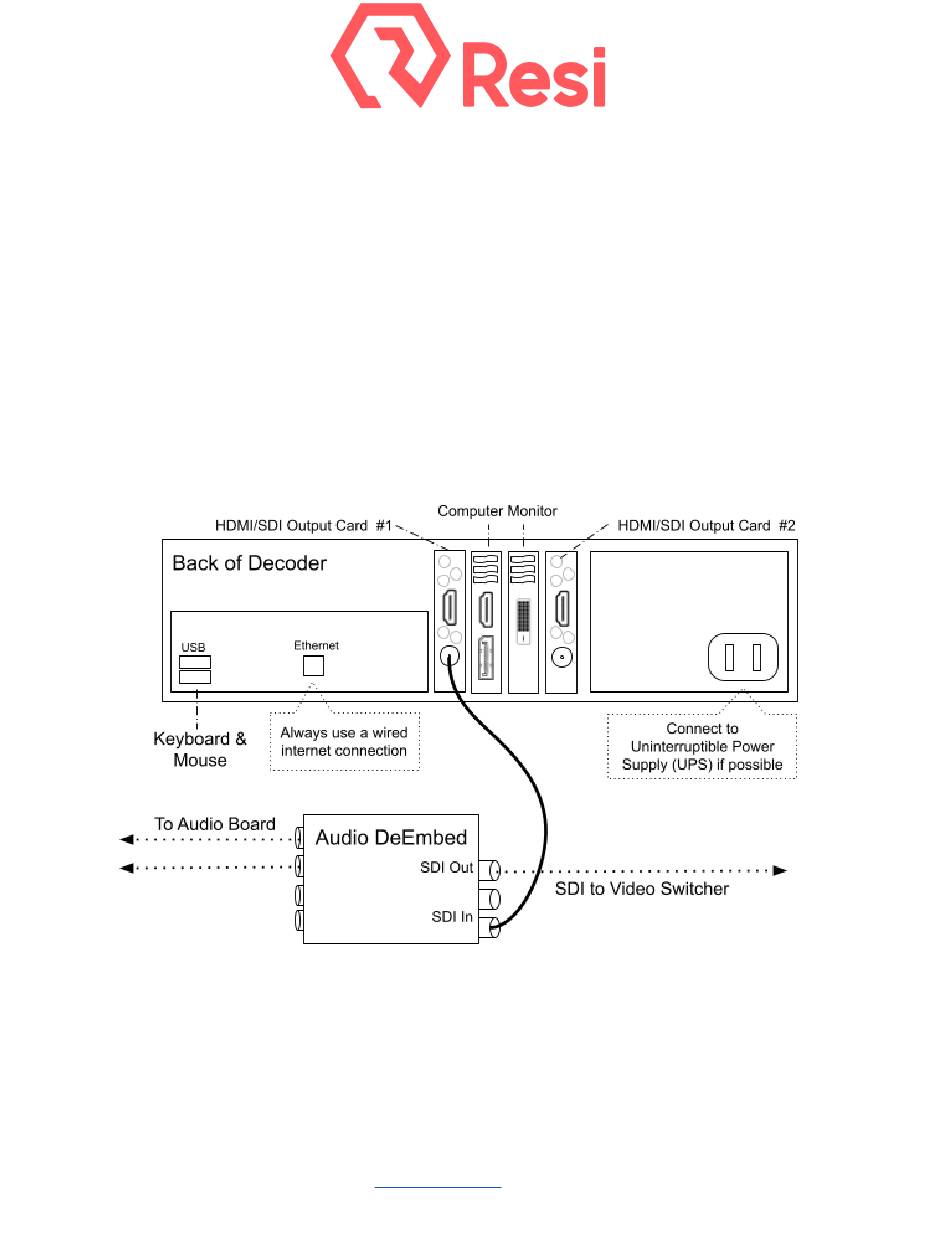

1. Connect your cables

○ It is recommended to connect power through an uninterruptible power supply (UPS).
■ Secure your network ethernet cable to the RJ-45 jack. Do not use an ethernet
cable with the clip removed; it should not easily pull out.
○ The SDI / HDMI ports found on the PCI cards are for production video and
professional audio output. Video and audio are output to both SDI & HDMI
simultaneously, one video channel per card.
output, but can accept reference-in.
○ Use the DVI-D, HDMI, or DisplayPort on the PCI GPU (not the ports on the motherboard
I/O panel) to connect one 16x9 1080p computer monitor for decoder control.
○ Connect a wired keyboard and mouse. Wireless is not recommended.
2. Turn on the decoder by pressing the power button on the front of the unit.
3. Once the decoder has fully started, you will see the Server-Grade Decoder login page. By
default the decoder will use a DHCP (automatic) network connection. If you need to set a
static IP address, click the "IP Settings" button on the bottom-right hand corner of the screen
and configure the appropriate IP address.
Need help? E-mail us at support@resi.io, or call 800-875-0696, Option #2
D2202 decoders do not include HDMI
Audio should be de-embedded from SDI.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Server-Grade Decoder and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Resi Server-Grade Decoder

Summary of Contents for Resi Server-Grade Decoder

  • Page 1 2. Turn on the decoder by pressing the power button on the front of the unit. 3. Once the decoder has fully started, you will see the Server-Grade Decoder login page. By default the decoder will use a DHCP (automatic) network connection. If you need to set a static IP address, click the “IP Settings”...
  • Page 2 4. Log in to Server-Grade Decoder using the appropriate site username provided to you. 5. Newly installed decoders may need to be updated before use. Once logged-in, click the user icon in the upper-right of the screen, then click “Update” (if available). The decoder will update and restart.
