WIFI （AIRPLAY2）& BLUETOOTH V5.0
MULTI-ROOM
2X50W AMPLIFIER
WITH IR REMOTE
MODEL:
AMP88
QUICK START GUIDE
Contact Us:
15224 Stafford St
City of Industry, CA 91744
626-968-0211
626-839-9018
www.ticcorp.com/support

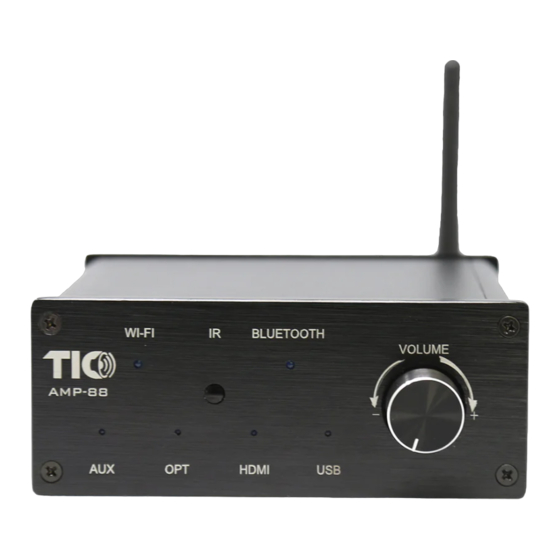

Front Panel Functions
1
7
2
WIFI
BLUETOOTH
AMP88
3
4
5
1.Wifi indicator
2.Bluetooth indicator
3.AUX indicator
4.Optical indicator
5.HDMI indicator
6.USB indicator
7.Remote control receiver
Connections
6
1.Wifi/BT ANT
2.USB Input
3.HDMI Input
4.Optical Input
5.Power
6.AUX Input And Output
7.Speaker Out
6
7
IN
SPEAKER OUT
SPEAKER OUT
AUX
L
R
+
-
+
OUT
WIFI/BT
1
2
3
4
-
DC
5
Advertisement
Table of Contents
Related Manuals for TIC AMP88
Summary of Contents for TIC AMP88
- Page 1 Front Panel Functions Connections WIFI （AIRPLAY2）& BLUETOOTH V5.0 SPEAKER OUT SPEAKER OUT MULTI-ROOM WIFI BLUETOOTH 2X50W AMPLIFIER AMP88 WITH IR REMOTE WIFI/BT MODEL: AMP88 QUICK START GUIDE Contact Us: 1.Wifi/BT ANT 15224 Stafford St 1.Wifi indicator 2.USB Input City of Industry, CA 91744 2.Bluetooth indicator...
- Page 2 Name Technical Parameter WIFI Product Name HDMI WIFI BLUETOOTH V5.0 MULTI-ROOM 2X50W AMPLIFIER HDMI Optical Product Model AMP88 AUX in Audio Input WIFI/ Bluetooth/OPTICAL/AUX/USB Audio Output SPEAKERS R L Work Voltage DC 19V-3.1A Scan to download for iOS Scan to download for Android Output Power 2 X 50 W (8Ω)
