RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE ANY FRONT/BACK COVERS OR
PANELS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL
The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN
OR MOISTURE.
SOUND WARNING:
Avoid hearing damage by establishing safe listening volumes. Listening to this product at high volumes
or for extended time periods may cause permanent hearing loss. Protect your hearing by establishing
safe volumes. Start with the volume setting control at its lowest setting. Slowly increase the volume until
you can hear it comfortably and clearly without distortion. Reduce the volume or stop listening if you
experience ringing in your ears or any discomfort. Consult with a physician if needed.
.
100W 4-Zone 70v/100v/4-16Ω
Commerical Mixer Amplifer

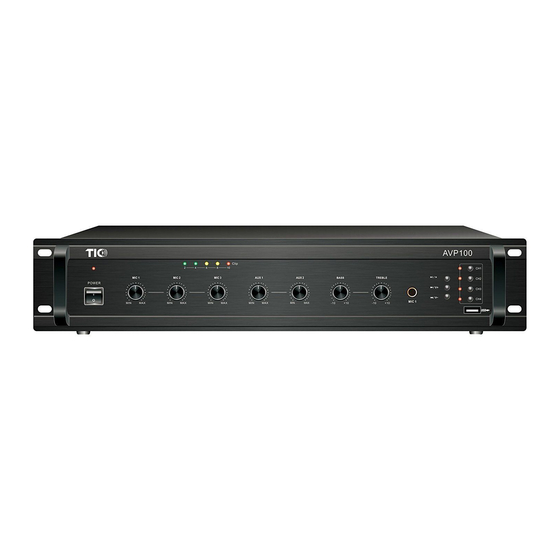

AVP100
Instruction Manual
2
4
6
8
10
MIC1
MIC2
MIC3
AUX1
AUX2
BASS
MIN
MAX
AVP100
CH1
TREBLE
CH2
V
+
CH3
V
-
CH4
MIC1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TIC AVP100
Summary of Contents for TIC AVP100
- Page 1 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. AVP100 WARNING: Instruction Manual TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS: WARRANTY: TIC offers a limited one-year full parts and labor warranty for all of our new products. WARNING: Improper use may potentially cause injury, loss of property and Please visit TIC’s warranty page (http://www.ticcorp.com/warranty/ ) for detail to our /or death.
-
Page 3: Table Of Contents
AVP100 Overview: TIC AVP-100 is a commerical-grade class A/B power amplifer with constant- voltage options. Table of Content Usage: Designed for broadcasting audio via a constant-voltage distributed sound system or 1. Safety Instructions.................1 high-impedance loudspeaker system. Perfect for public address (PA) and background music. -
Page 4: Front Panel
Front panel Rear Panel 10 1 1 AVP100 MIC1 MIC2 MIC3 AUX1 AUX2 BASS TREBLE MUTE MIC 2 MIC 3 MIC1 AC 110V 50Hz 9 10 11 12 13 4 5 6 Power switch Mute level adjustment Mic 1 volume control... -
Page 5: Operation
Zone 3 terminals Option 3: 4-16Ω output Zone 4 terminals AVP100 can be set up in one of four options. Utilizing multiple options simutaneously may Note: cause issues and damage to the amplifier. Please ensure the polarity of speaker wires are 1. -
Page 6: Troubleshooting
Operation instructions: Troubleshooting Step-by-Step Instruction: Symptom Cause & Solution A. Connecting loudspeakers 1. Ensure power switch is at the OFF position. 2. Connect power cord to power soruce outlet. 1. Power source is disconnected or cut. 1. Power does not turn on. 3. - Page 7 Connection Diagram MP3 Module...
-
Page 8: Specifications
Dimensions To keep the amplifier properly ventilated, a space of at least 4" should be cleared around the machine in order to provide enough air circulation and prevent overheating. Model AVP100 Output Power 100W 4-zone 70v, 4-16Ω, 70v, 100v Output Terminals Mic 1-3: 5mV/600Ω...
