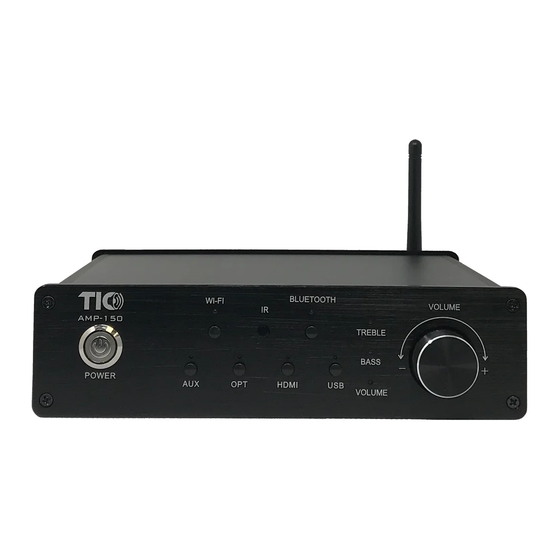

TIC AMP150 Quick Start Manual

WIFI （AIRPLAY2）& BLUETOOTH V5.0
MULTI-ROOM
2X100W / 4X100W AMPLIFIER
WITH IR REMOTE
MODEL:
AMP150 / AMP200
QUICK START GUIDE
Contact Us:
15224 Stafford St
City of Industry, CA 91744
626-968-0211
626-839-9018
www.ticcorp.com/support
Front Panel Functions
3 5 7
WI-FI BLUETOOTH
AMP-150 / AMP-200
1 2 4 6 8
1. Power switch
2. AUX in indicator
3. Wi-fi indicator
4. Optical indicator
5. Infrared remote control receiver
Connections
9
4
－
+
10
6. HDMI indicator
7. Bluetooth indicator
8. USB indicator
4
9. Volume indicator
10. Volume control
1.AUX Input
2.AUX Output
3A 3B.Speaker Output
4.Wifi/BT ANT
1 2 3
AUX IN AUX OUT
SPEAKER OUT
L R L R
+
－
5 6 7
1 2
3A 3B
AUX OUT
AUX IN SPEAKER OUT SPEAKER OUT
L R
L R
+ +
－ －
5 6 7
5.USB Input
6.HDMI Input
7.Optical Input
8.Power
8
8
