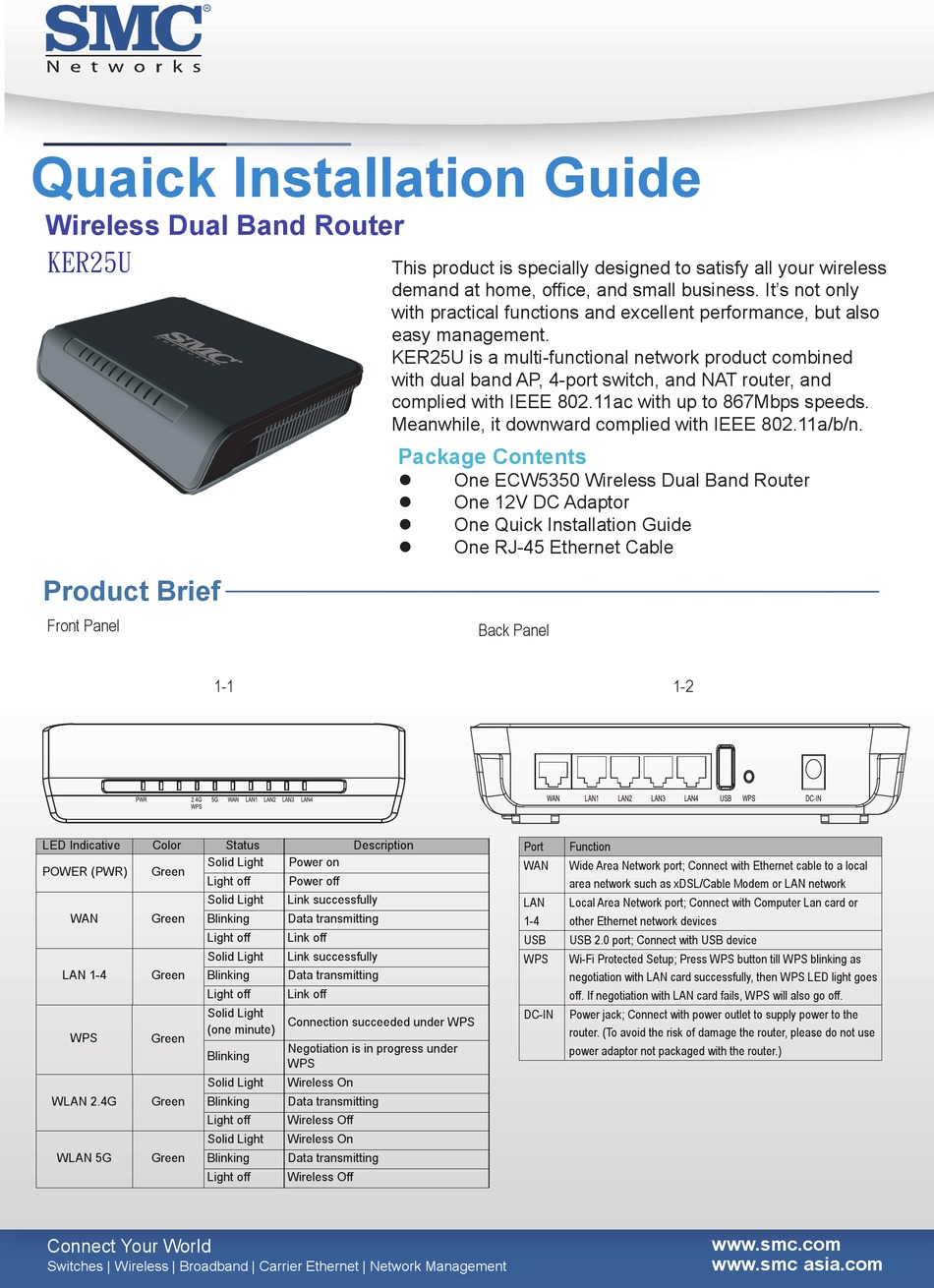

SMC Networks KER25U Quick Installation Manual

Quaick Installation Guide
Wireless Dual Band Router
KER25U

Product Brief

Front Panel

LED Indicative

Color
POWER (PWR) Green
WAN Green
LAN 1-4 Green
WPS Green
WLAN 2.4G Green
WLAN 5G Green
Connect Your World
Switches | Wireless | Broadband | Carrier Ethernet | Network Management
1-1
Status Description
Solid Light Power on
Light off Power off
Solid Light Link successfully
Blinking Data transmitting
Light off Link off
Solid Light Link successfully
Blinking Data transmitting
Light off Link off
Solid Light
Connection succeeded under WPS
(one minute)
Negotiation is in progress under
Blinking
WPS
Solid Light Wireless On
Blinking Data transmitting
Light off Wireless Off
Solid Light Wireless On
Blinking Data transmitting
Light off Wireless Off
This product is specially designed to satisfy all your wireless
demand at home, office, and small business. It's not only
with practical functions and excellent performance, but also
easy management.
KER25U is a multi-functional network product combined
with dual band AP, 4-port switch, and NAT router, and
complied with IEEE 802.11ac with up to 867Mbps speeds.
Meanwhile, it downward complied with IEEE 802.11a/b/n.

Package Contents

One ECW5350 Wireless Dual Band Router

One 12V DC Adaptor

One Quick Installation Guide

One RJ-45 Ethernet Cable

Back Panel
Port
WAN
LAN
1-4
USB
WPS
DC-IN
1-2
Function
Wide Area Network port; Connect with Ethernet cable to a local
area network such as xDSL/Cable Modem or LAN network
Local Area Network port; Connect with Computer Lan card or
other Ethernet network devices
USB 2.0 port; Connect with USB device
Wi-Fi Protected Setup; Press WPS button till WPS blinking as
negotiation with LAN card successfully, then WPS LED light goes
off. If negotiation with LAN card fails, WPS will also go off.
Power jack; Connect with power outlet to supply power to the
router. (To avoid the risk of damage the router, please do not use
power adaptor not packaged with the router.)
