- Page 1 Hand Control Programming- TDH12P 20210105 error codes User Manual Hand Control Programming- TDH12P Version 2 January 2021 1 of 9...
-
Page 2: Table Of Contents
Hand Control Programming- TDH12P Contents Contents ..................................2 Disclaimer .................................. 3 1. User Interface Guide ............................. 4 2. Reset ..................................5 3. Adjusting the Height ............................. 6 4. Setting the Memorized Position ........................... 6 5. Presetting the Desk Starting Height ........................7 6. -
Page 3: Disclaimer
Hand Control Programming- TDH12P Disclaimer This user manual is ONLY for generic TiMOTION products. Manufacturers may have altered product settings causing them to differ from this user manual. Please contact the manufacturer for a revised manual if the product settings are different than this manual. -
Page 4: User Interface Guide

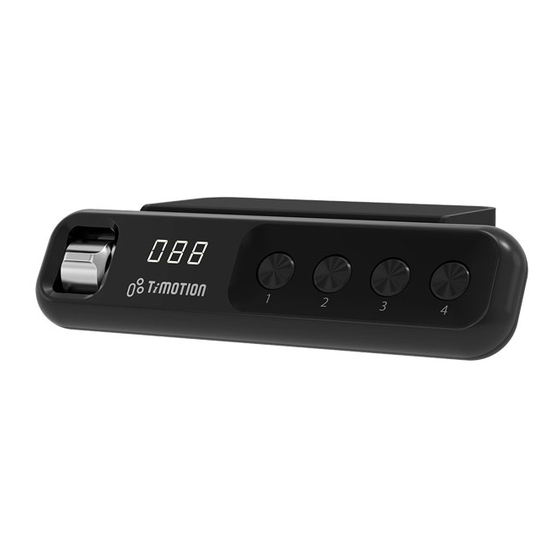

Hand Control Programming- TDH12P 1. User Interface Guide 3-digit height display Rocker switch* Memory setting buttons * Rocker switch: Adjust the height adjustable desk to go up or down. Version 2 January 2021 4 of 9... -
Page 5: Reset
Hand Control Programming- TDH12P 2. Reset Simultaneously press button 3 and 4 for 3 seconds. Continue pressing the buttons until both columns are in the lowest position. When finished with the reset, the control box will make a “beep” sound and the buttons can be released. -
Page 6: Adjusting The Height
Use the rocker switch to adjust the desk until the desk reaches the preferred height. 4. Setting the Memorized Position TDH12P supports a maximum of 4 memory positions. How to memorize a position: Adjust the desk to the desired height. -
Page 7: Presetting The Desk Starting Height
Hand Control Programming- TDH12P 5. Presetting the Desk Starting Height (1) Use the rocker switch until the desk reaches its lowest position and then release button. Re-press the rocker switch again for 5 seconds and the digital display will flash for 10 seconds. -
Page 8: Error Codes
Hand Control Programming- TDH12P 7. Error Codes The digital display shows the error codes below to suggest the issues that users may encounter during the operation. (Note 2) Error code Descriptions Resetting Not reset completely Overuse protection Unbalance protection Anti-collision... -
Page 9: Power Saving Function - Waking Up The Control
Hand Control Programming- TDH12P 8. Power Saving Function - Waking Up the Control The digital display automatically turns off if no buttons are pressed within 25 seconds. Press any button to light up the display again. The system goes into <0.1W standby mode if no buttons are pressed within 30 seconds.
