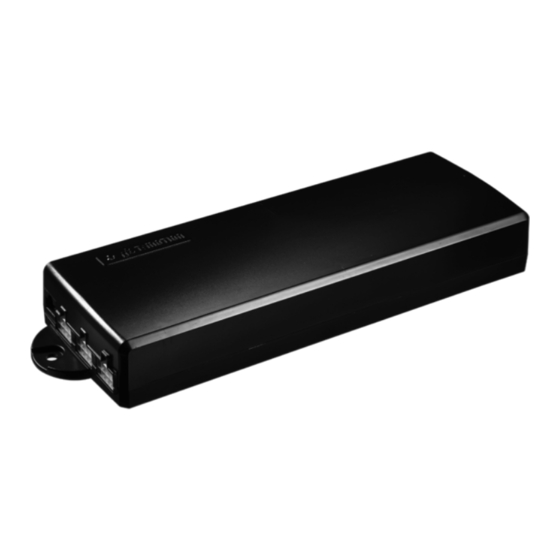

- Page 1 ( U s e r M a n u a l - C o n t r o l b o x ) User manual-Control Box TC16P series 2019.8.6 REV: A...
- Page 2 ( U s e r M a n u a l - C o n t r o l b o x ) General Information: Contact Information: TiMOTION Technology Co., Ltd. Shiyong Minyin Industrial Zone, Hengli Town, Dongguan, China, 523460 Symbol Descriptions The following symbols may appear in this manual, on the label, or on its accessories.
- Page 3 ( U s e r M a n u a l - C o n t r o l b o x ) Warning: Please read this user manual carefully before use. You must be connected to the correct mains. For any accessories connected to this control box, the plug type, pins definition and electrical character must comply with its specifications.
- Page 4 ( U s e r M a n u a l - C o n t r o l b o x ) However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
- Page 5 ( U s e r M a n u a l - C o n t r o l b o x ) Model No.: Model list: Model Input Max. Output (Actuator) TC16P-QZ120C 100-240VAC,50/60Hz,4A 32Vdc,10A TC16P-QZ120 100-240VAC,50/60Hz,4A 32Vdc,10A Degree of protection against electric shock: No applied part Protection against ingress of water: IP20...
- Page 6 ( U s e r M a n u a l - C o n t r o l b o x ) Maintain & Cleaning: - The control box is a maintain-free device. Under normal conditions, maintain is not necessary.
