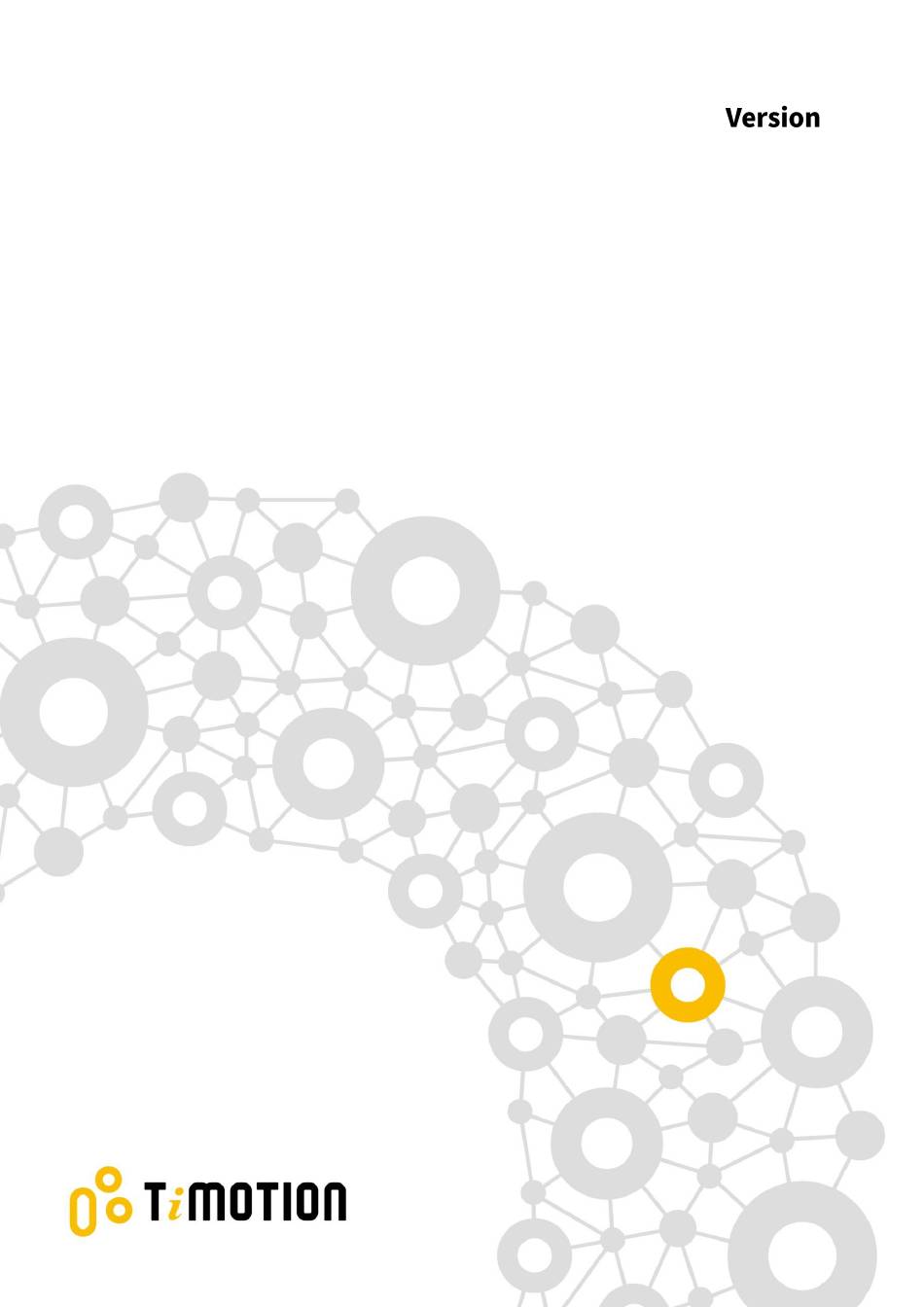

- Page 1 20200918 TBB9 User Manual...
-
Page 2: Table Of Contents
TBB9 User Manual ..................................2 1. Warning ................................3 2. Introduction ................................4 3. Specifications ..............................5 4. 2D Drawings ................................. 6 5. Installations................................8 Mounting position..................................8 Assembly ....................................9 6. Capacity Status and LED Indications ........................10 7. Charging ................................11 Via control box .................................. -
Page 3: Warning
Do not use the battery if smoke is coming out. Don’t discard or expose the products into water or heat sources. Recycle with certified depots. 10. Needs to be repaired by original manufacturer or authorized maintenance centers. 11. Always use a TiMOTION charger. Version B September 2020... -
Page 4: Introduction

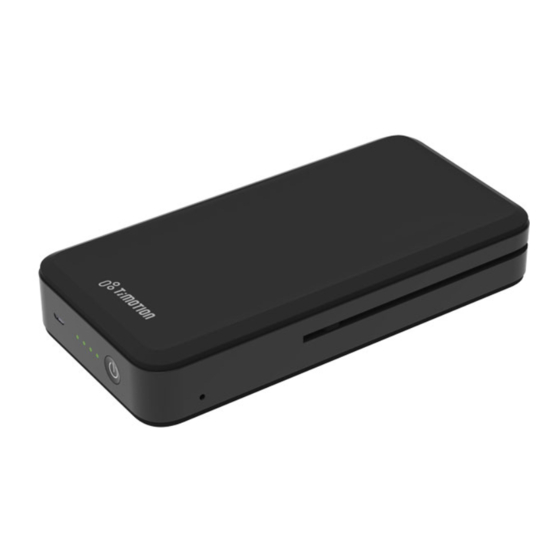

TBB9 User Manual 2. Introduction The TBB9 is a rechargeable battery that provides mobility to height adjustable desk applications. ON / OFF Button Operation: ON: Press continuously for 2 seconds and there will be a short beep. OFF: Press continuously for 2 seconds. -
Page 5: Specifications
TBB9 User Manual 3. Specifications Model name TBB9 Capacity 2.5Ah / 63Wh Rated output voltage 25.2V DC Rated output current Max. output current Rated input voltage 32V DC (charging cradle) / 5V DC (Micro USB) 1A (charging cradle) / 1~2A (Micro USB) -
Page 6: D Drawings
TBB9 User Manual 4. 2D Drawings TBB9 Charging cradle Version B September 2020... - Page 7 TBB9 User Manual TBB9 with charging cradle Version B September 2020...
-
Page 8: Installations
TBB9 User Manual 5. Installations 5.1 Mounting position Version B September 2020... -
Page 9: Assembly
Use M4 screws (3 pieces) to fix the charging cradle into the desired position on the desk. (PIC1) Connect the charging cradle and the control box. (PIC 2) Put the TBB9 into the charging cradle. (PIC 3) Turn on the TBB9. -
Page 10: Capacity Status And Led Indications
Four LED shine Fully charged >90% Four LED shine Shine continuously Discharging >75% Four LED shine When the TBB9 is in operation, (when using) continuously we can press ON/OFF button for 0.5 seconds in order to 50%~75% Three LED shine... -
Page 11: Charging
TBB9 can be charged directly from the control box or via the standard Micro USB. 7.1 Via control box If the control box is connected to the AC power and the TBB9, the TBB9 will charge via the control box. It takes about 8 hours to fully charge. ... -
Page 12: Via Micro Usb
TBB9 User Manual 7.2 Via Micro USB The TBB9 can be charged independently via the Micro USB. It takes about 16 hours to fully charge. Recommendations for the Micro USB output specifications: Voltage: 5 VDC Current: > 2A (Note: It may take more time if using the charging output with small current.) -
Page 13: Remarks
To avoid losing battery, charge to 75% (4 LED lights) before storing. The battery will display 2 LED lights when lower than 50% capacity. When the TBB9 is not in use, please charge it every six (6) months. The battery life will be affected by use and working environment. After recharging 300 times, the battery may only support 60% capacity. -
Page 14: Protections
obstacles or solve Over discharge- current Current>16-23A the interference of protection mechanism issues which may be the The TBB9 will be OFF cause of the over Over discharge-low immediately; no specific current problems. Voltage <19~20V voltage protection warnings Turn on the TBB9 ... -
Page 15: Storage
<1month 45~60 3 months 20~45 12 months -20~20 9.2 Self-Discharging When the TBB9 is packed independently, the storage period and capacity will be shown as below (90% capacity when shipped out from factory): Period Capacity Status (including shipping) 3 months... -
Page 16: Packaging And Transportation
9.3 Packaging and Transportation The TBB9 is packed according to 2017 Lithium Battery Guidance Document by IATA. The packaging is supplied with a label (see image below) stating the package contains lithium ion batteries. All the packaging and transportation comply with the regulations within the 2017 Lithium Battery ... -
Page 17: Appendix
TBB9 User Manual 10. Appendix 10.1 Discharge Voltage - Time Curve Discharge time(minute) Discharge current TBB9 (2.5A/25.2V/63W) discharge time Discharge current Discharge time (minute) 2.5A 7.50 12.5A Version B September 2020...
