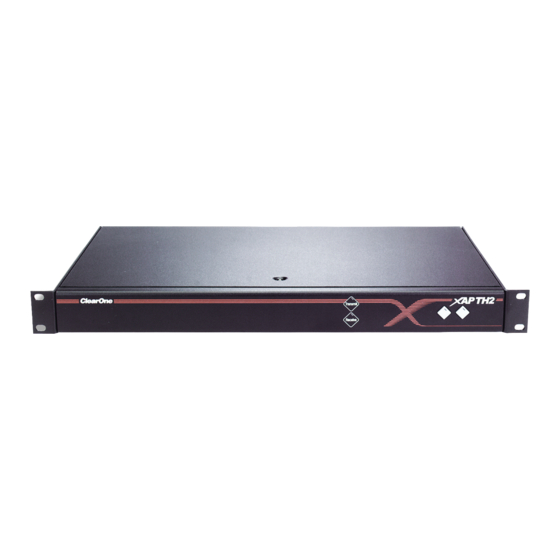

ClearOne XAP TH2 Installation & Operation Manual

Telephone interface
Hide thumbs Also See for XAP TH2:
Table of Contents

Advertisement

Quick Links

Download this manual
XAP TH2 Telephone Interface
Installation & Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XAP TH2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne XAP TH2

Summary of Contents for ClearOne XAP TH2

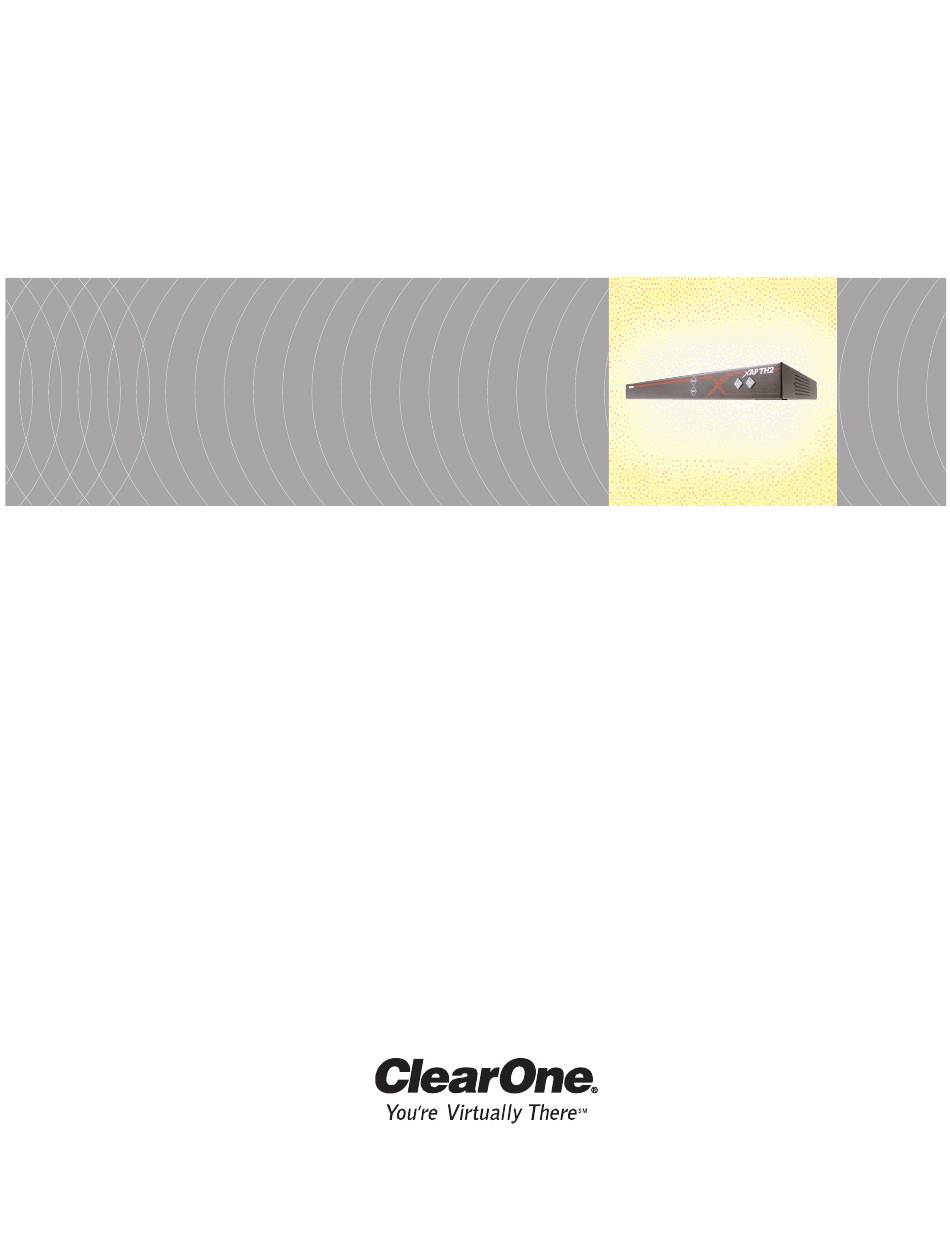

  • Page 1 XAP TH2 Telephone Interface Installation & Operation Manual...
  • Page 2 © 2002 ClearOne Communications, Inc. All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne Communications. Printed in the United States of America. ClearOne Communications reserves specific privileges.

  • Page 3: Table Of Contents

    Sales and Customer Service .........2 ClearOne Communications EuMEA ........2 Product registration .
  • Page 4 To sync site file to the XAP TH2 ....... . .

  • Page 5: Chapter 1: Introduction

    It continually filters low and high frequency noise to provide pure sound. The XAP TH2 is designed to function as a stand-alone telephone hybrid or as an accessory to the XAP 800 (echo cancelling, audio processing, microphone mixing matrix), enabling you to add remote callers to your audio conferences.

  • Page 6: Professional Services Group

    E-mail: global@clearone.com Product registration Please register your XAP TH2 online by visiting ClearOne Technical Support at www.clearone.com. When your product is properly registered, ClearOne Communications is better able to serve you should you require technical assistance. Registration information is also used to notify you of upgrades and new product information.

  • Page 7: Unpacking

    ON state. Pressing and holding the On button for more than D. On. The On button connects the XAP TH2 to the telephone line and a half-second while the automatically adapts the hybrid to the line.

  • Page 8: Rear Panel

    XAP TH2. See page 8 for more details. G. Expansion Bus In, Out. This RJ-45 connector is used to connect the XAP TH2 to the XAP 800 for control. G-Ware is capable of accessing and controlling an expansion bus local area network (LAN) of up to eight XAP 800/PSR1212 units and 16 XAP TH2 units, where the total number of microphone inputs does not exceed 64.

  • Page 9: Before You Install

    XAP TH2 units, where the total number of microphone inputs does not exceed 64. The maximum distance between interconnected XAP 800/400 or PSR1212 units is 80 feet (24 meters). Insertion of a XAP TH2 must not increase the cable length between two PSR1212s, XAP 800s and/or XAP 400s beyond 80 feet. ClearOne recommends that category five twisted-pair (10BaseT LAN) cable be used.
  • Page 10 Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 11: Chapter 2: Installation

    CHAPTER 2: Installation Hardware Setup The XAP TH2 is designed for easy installation and setup. All connections are made through rear-panel connectors.This section provides instructions on installing the units in the rack and making initial connections, assigning device ID numbers, and creating an expansion bus (E-bus) network.

  • Page 12: Assigning Device Id Numbers

    Assigning device ID numbers Before creating an expansion bus network, you need to set up unique expansion bus Device ID numbers for each XAP TH2 on the network.There are 16 expansion bus If more than one XAP network device locations that can be selected (0-F). As shipped from the factory, all TH2 is assigned the XAP TH2 units default as binary address 0.

  • Page 13: Creating An Expansion Bus Network

    1 ( DOWN) 1 (DOWN) Creating an expansion bus network Place the XAP TH2 unit in the rack. The back-panel Expansion Bus In and Expansion Bus Out connectors are designed for setting up your expansion bus network. Connections between units are made in daisy-chain fashion using category five twisted-pair cable.

  • Page 14: Connecting Power

    PSR1212 units is 80 feet (24 Connecting power The power input [A] will operate at any level between 100–240VAC, 50–60Hz, 15W (typical). Plug in the XAP TH2 to complete the hardware installation. Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...

  • Page 15: Chapter 3: Configuration

    Unit(s) or You can add XAP TH2(s) to your site file by connecting to your networked site and Document. If you sync to the letting G-Ware automatically create icons for the detected units. Or you can work...
  • Page 16 PC, or AMX touch panel. Click OK to save settings and close the Unit Properties window. You will need to repeat this process for all XAP TH2 units on your network. Figure 3.4. Unit Properties Security tab...

  • Page 17: Telco Configuration

    Telco Configuration XAP TH2 Flow Screen The XAP TH2 Flow Screen shows a detailed block diagram of the audio path in relation to the TH2.There are four buttons on the Flow Screen: Dial,Telco Config, Telco Meters, and GPIO builder.The Flow Screen is displayed for the selected unit in the site panel on the left of the G-Ware screen.
  • Page 18 Configuration ~ Telco Configuration Technical Services Group ~ 1-800-283-5936 (USA) ~ 1-801-974-3760...
  • Page 19 To use GPIO Builder GPIO, or general purpose input/output, allows you to establish pin assignments for the XAP TH2's Control/Status port.These pins provide control via contact closure and status via open collector functions in the unit. Open the GPIO Builder by clicking the GPIO Builder button on the Flow Screen.
  • Page 20 Establish a direct serial connection from you PC to the XAP 800 Document, you will update your which is linked to the XAP TH2(s) via the E-bus units with the configurations you Click the Connect button on the G-Ware toolbar or select Connect from have saved in the site file.
