modway EEI-3438 Quick Start Manual

EEI-3438
WALL UNIT
Thank you for purchasing the MODWAY
Before you start, here are some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the Wall Unit, we recommend that
padded area, in the room that it is intended for. Approximate assembly time: 60 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.

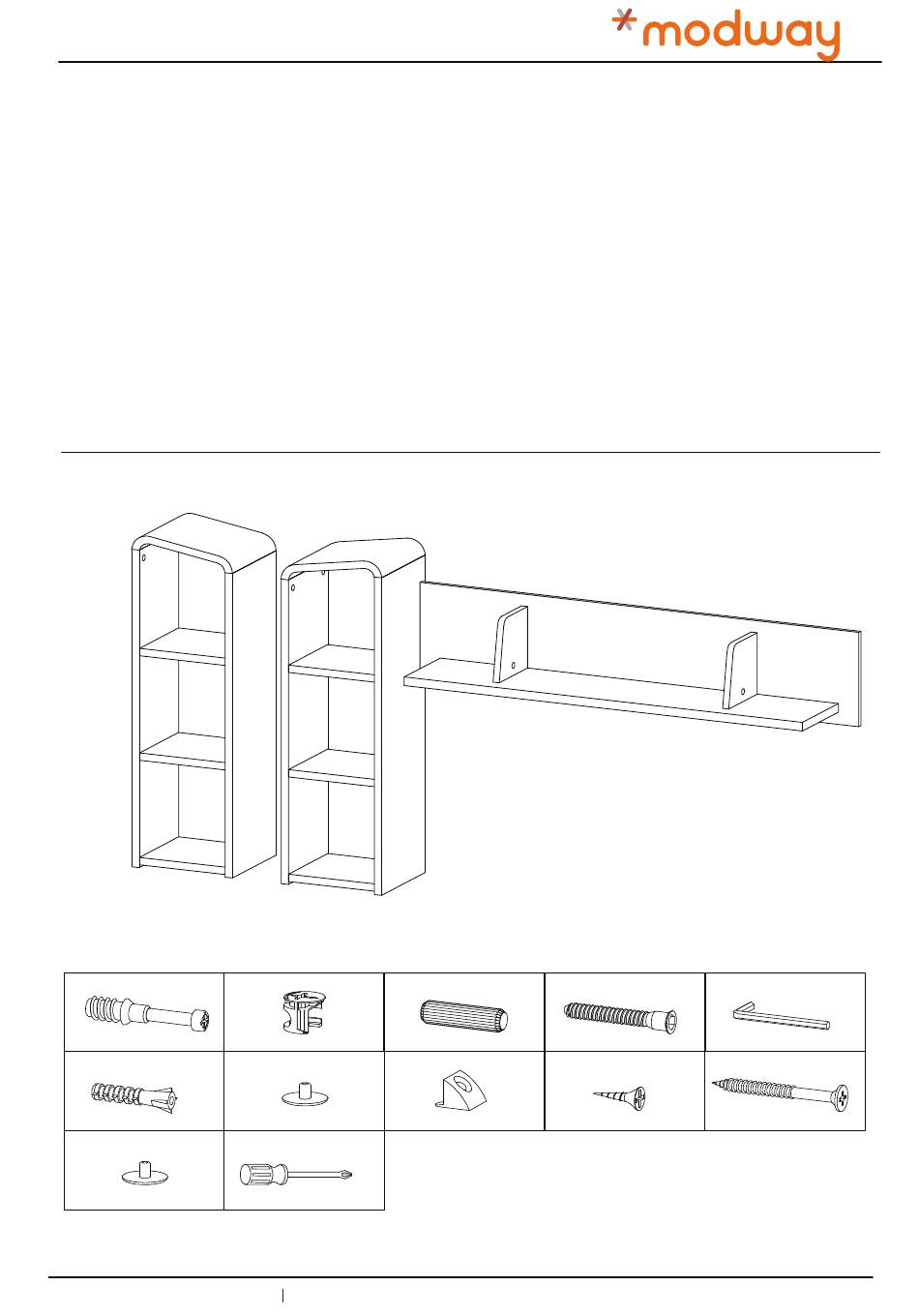

Hardware :
A) B)
Cambolt/Metal
Ø 6 x 35 mm x 42
F) G)
Fisher/Plastic
SO 02
x 11
K) L)
Screw Cup Caramel/Plastic
Ø 15 mm x 2 Screwdriver (Not Include)
Customer Service 908-368-1025︱www.modway.com
WALL UNIT !
C)
CamLock Big/Metal
Ø 15 mm x 42
Ø 8 x 30 mm
H)
Screw Cup Grey/Plastic
Ø 15 mm x 8
9 x 14 x 10 mm
x 1
it is assembled by two adults, on a carpeted or
D)
Dowel/Wood Screw/Metal
x 44 M 7 x 50 mm
I)
Wedge/Plastic Screw/Metal
x 16
M 3.5 x 15.5 mm
E)
Key/Metal
L 4
x 5 x 1
J)
Screw/Metal
x 16 M 12 x 45 mm x 11
Page 1 of 13
