IP REMOTE MICROPHONE
REMOTE MICROPHONE EXTENSION
Thank you very much for purchasing TOA VX-100RM product.
Please read the instructions in this manual carefully, to ensure long-term, trouble-free operation of the
system.
INSTRUCTION MANUAL
VX-100RM
RM-110VX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX-100RM and is the answer not in the manual?

Questions and answers

Related Manuals for Toa VX-100RM

Summary of Contents for Toa VX-100RM

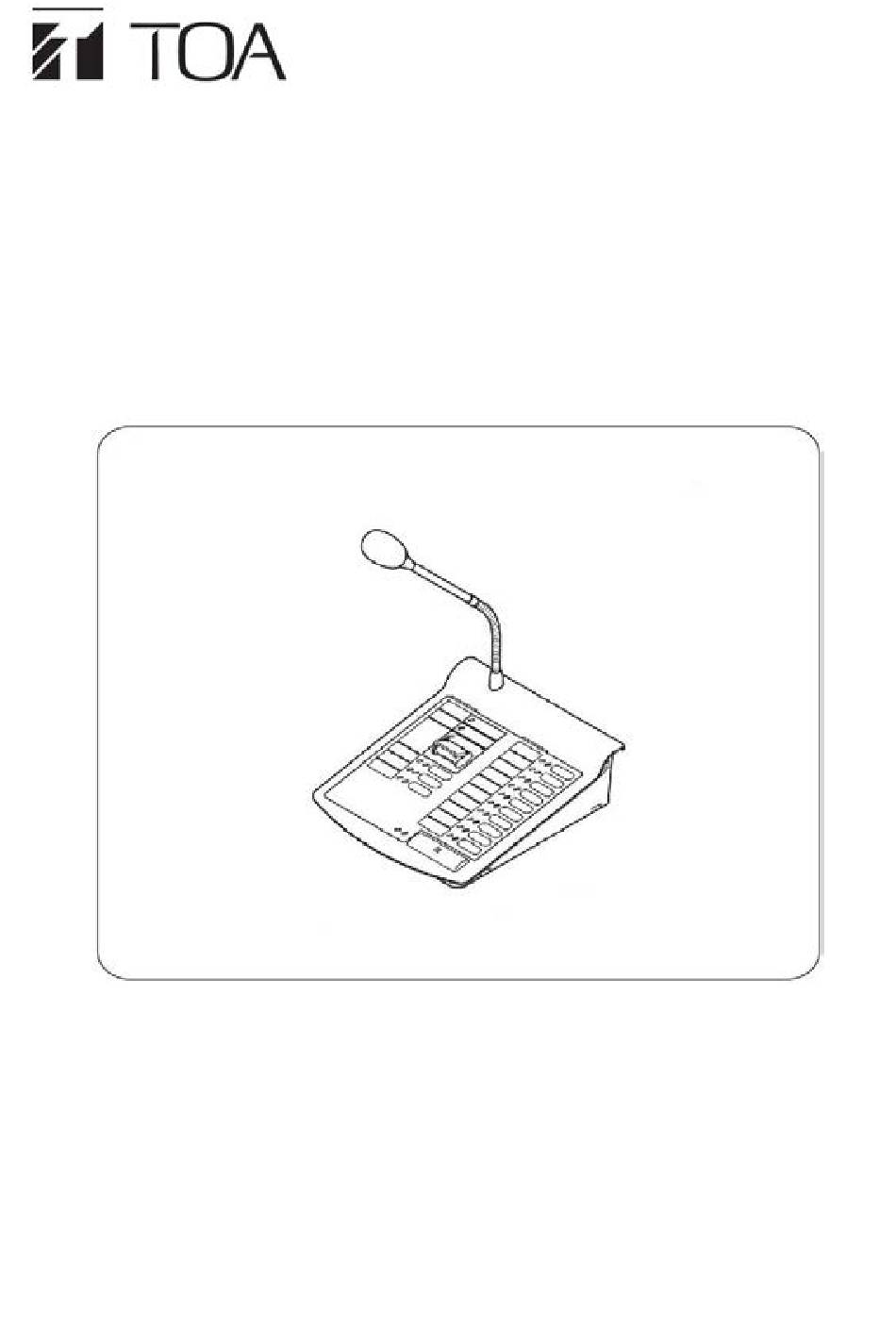

  • Page 1 INSTRUCTION MANUAL IP REMOTE MICROPHONE VX-100RM REMOTE MICROPHONE EXTENSION RM-110VX Thank you very much for purchasing TOA VX-100RM product. Please read the instructions in this manual carefully, to ensure long-term, trouble-free operation of the system.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ..............2 1 SAFETY PRECAUTIONS ............. 3 2 PRODUCT INTRODUCTION............3 Overview .......................... 3 Interface Description ......................4 3 WIREING ..................8 Wiring Diagram......................... 8 Installation Instructions ..................... 9 4 OPERATION INSTRUCTIONS ............ 10 VX-1000 Setting Software operating instructions ............

  • Page 3: Safety Precautions

    2 PRODUCT INTRODUCTION 2.1 Overview VX-100RM is an IP remote microphone which has the functions of initiating general broadcast, emergency broadcast and also can trigger the pattern broadcast task by pressing the key. (1) Functional configuration through VX-1000 Setting Software Users can configure the network parameters of IP Remote Microphone, extend the number of units, and customize function keys through the VX-1000 Setting Software to achieve personalized configuration.

  • Page 4: Interface Description

    2.2 Interface Description 2.2.1 IP Remote Microphone VX-100RM [ Front ] ① Power LED: A green LED will be always on when it is powered on; No LED lights when no power input ② Operation mode LED: No LED lights when under server mode; Orange LED will be always on when under no server mode.
  • Page 5 ⑨ Broadcast LED: when the IP Remote Microphone is under the broadcast, the indicator LED turns to green; After the broadcast is stopped, the indicator LED is off ⑩ Sound source toggle key: Press this key to switch between line input and the microphone input. The default of sound source is the microphone input.
  • Page 6 [ Rear ] [ Side ] ① Power input interface: Connecting DC24V/1A power supply AC adapter. (this unit supports PoE power supply. If a network interface has been connected to a POE switching HUB etc., then no need to connect a DC power supply).
  • Page 7 2.2.2 Remote Microphone Extension RM-110VX [ Front ] [ Side ] ①Name tag area ②Status LED ③Zone LED ④Function keys ⑤Extension unit interface For each interface and function definition, please refer to 2.2.1 IP Remote Microphone VX-100RM.

  • Page 8: Wireing

    3 WIREING 3.1 Wiring Diagram RJ-45 connector’s wiring sequence and its meaning: ① Number Color Wire Pair Pin Assignment Explanation Remarks ② BLUE/WHITE CTRL_IN（-） CTRL_IN（-） CTRL_IN ③ BROWN/WHITE CTRL_IN（+） CTRL_IN（+） Unused ④ GREEN/WHITE AUDIO_IN(H) AUDIO_IN（H） ⑤ GREEN AUDIO_IN(C) AUDIO_IN（C） BLUE AUDIO_IN(E) AUDIO_IN（E）...

  • Page 9: Installation Instructions

    Junction bracket A ............2 Junction bracket B ............1 Screw (3 x 8) ..............12 Step 1. Let VX-100RM and RM-110VX close to each other. Step 2. Connecting the two units with extension wire. Step 3. Use the 4 screws provided (follow...

  • Page 10: Operation Instructions

    4 OPERATION INSTRUCTIONS 4.1 VX-1000 Setting Software operating instructions 4.1.1 Software Installation Double-click the “VX-1000 Setting Software” installer and press "Next" to install. After the installation is complete, select "Run as administrator" software. 4.1.2 Basic parameter settings (1) New project file：Click "File"-"New" in the main interface of the software, enter the project name in the pop-up dialog box, and create a new project file.
  • Page 11 (2) Add Unit：In the "Unit List" interface, add units, set unit’s IP and other operations. After the configurations are completed, the system will save configurations automatically. (3) Add VX-1010ZE: Set the number of Zone Expander VX-1010ZE. If the VX-1010ZE is not connected, then you do not need to set this parameter.
  • Page 12 (4) Unit Configuration：After units are added, the names of the input and output channels and control input and output channels of each Matrix Controller can be customized in the unit configuration interface. After the configurations are completed, the system will save configurations automatically. The configuration of the Matrix Controller is described as follows: i.
  • Page 13 (5) Prepare Audio Files：Click the "Add" button in the "Audio Files" to add audio files (used as a broadcast source). After the configurations are completed, the system will save configurations automatically. (6) Playlist Setting：Set the broadcast audio file playlist (need to add audio files in the "Audio Files" in advance).
  • Page 14 (7) Set audio source priority： Set the audio source type (BGM/General/Emergency) and priority of the unit input channel and playlist. After the configurations are completed, the system will save configurations automatically. (8) Set Control Output Pattern: On the “Control Output Pattern Setting” interface, multiple control output can be combined to one group.
  • Page 15 (9) Set Zone Pattern：Enter the “Zone Pattern Setting” interface, create zone patterns which can consist of zones and control outputs. After the configurations are completed, the system will save configurations automatically. (10) Set Broadcast Pattern：Enter the “General Pattern Setting” interface, create broadcast patterns which consists of audio source, zones and control outputs.
  • Page 16 4.1.3 Set the timer to start broadcasting On the "Timer Program Setting" interface, set the Timer Program name, select “General Pattern”, set “Timer type”, “Start Date”, etc. When the unit reaches the specified time, it will start the specified broadcast pattern. 4.1.4 Set Event to start broadcasting On the "Event Settings"...
  • Page 17 4.1.5 Set Preset-Key to start broadcast On the "MC Settings" interface, you can set the general pattern corresponding to the [Preset 1]-[Preset 3] keys of the Matrix Controller. Press the unit's [Preset 1] - [Preset 3] key to start the specified general pattern. 4.1.6 Set Remote Microphone function On the "RM Settings"...
  • Page 18 Extension unit Set the number of extension units connected to the remote setting microphone, and support up to 9 extension units. PTT mode: When broadcasting, press the selection key first, and then continue to hold the Broadcast key, then you can initiate a call. Release the Broadcast key to end the broadcast.
  • Page 19 4.1.7 Upload configuration After the parameters are modified and saved, you must click [Communication]-[Upload], check the relevant unit in the pop-up dialog box, and then click the "Upload" button to upload the configured data file to the specified unit to take effect.

  • Page 20: Zone Broadcast

    4.2 Zone broadcast Prerequisites: Completing relevant configuration, meanwhile IP Remote Microphone function key was set up as “zone pattern”, and upload to the corresponding unit. 4.2.1 General zone broadcast Step 1. manually press the zone key to select the zone, and the corresponding key ’s zone LED is always on green.
  • Page 21 4.2.2 Emergency broadcast Step 1. press the Emergency Broadcast key on the microphone, and the Emergency LED is always on red. Step 2. press the zone key to select the zone, and the zone LED of the corresponding key is always on green.

  • Page 22: Pattern Broadcast

    4.3 Pattern broadcast Prerequisites: After Completing relevant configuration, meanwhile IP Remote Microphone function key was set up as “broadcast pattern”, then upload to the corresponding unit. 4.3.1 General Pattern broadcast Step 1. Press the configured task key, the corresponding zone LED is always on green and the Broadcast LED is always on orange, meanwhile the corresponding zone ‘s speaker will play the general pattern broadcast.

  • Page 23: Trigger Control Output Task

    4.4 Trigger control output task. Prerequisites: Completing relevant configuration, meanwhile IP Remote Microphone function key was set up as “control output pattern”, then upload to the corresponding unit. Step 1. Press the configured task key, the corresponding zone LED is always on green and the Broadcast LED is always on orange, meanwhile the corresponding control output will be closed to execute specified task.

  • Page 24: Dimension (Unit: Mm)

    4.6 Dimension (Unit: mm)

  • Page 25: Appendix

    828 g 5.1.2 RM-110VX Remote Microphone Extention Model RM-110VX Power Supply (by VX-100RM) Consumption current Less than 20mA (by VX-100RM DC power input) Number of function keys Operating Temperature 0℃~+40℃ Operating Humidity Less than 90%, no condensation. Finish ABS resin, black Dimensions 110(W) x 76.5 (H) x 215 (D) mm...
  • Page 26 Traceability Information for Europe Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan Suederstrasse 282, 20537 Hamburg, Germany URL: https://toa.com.sg/ 20221102 TOA Corporation...
