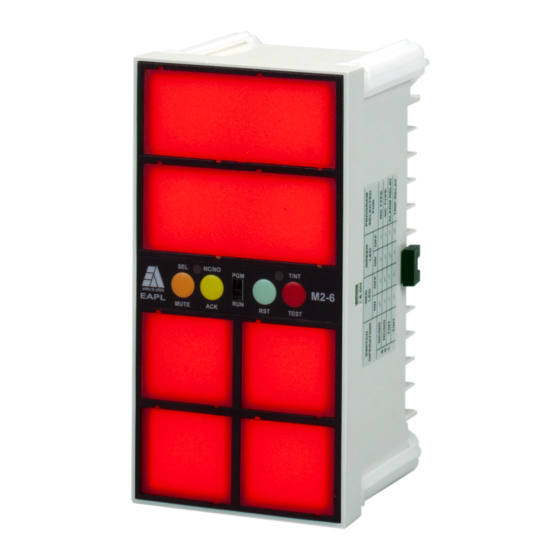

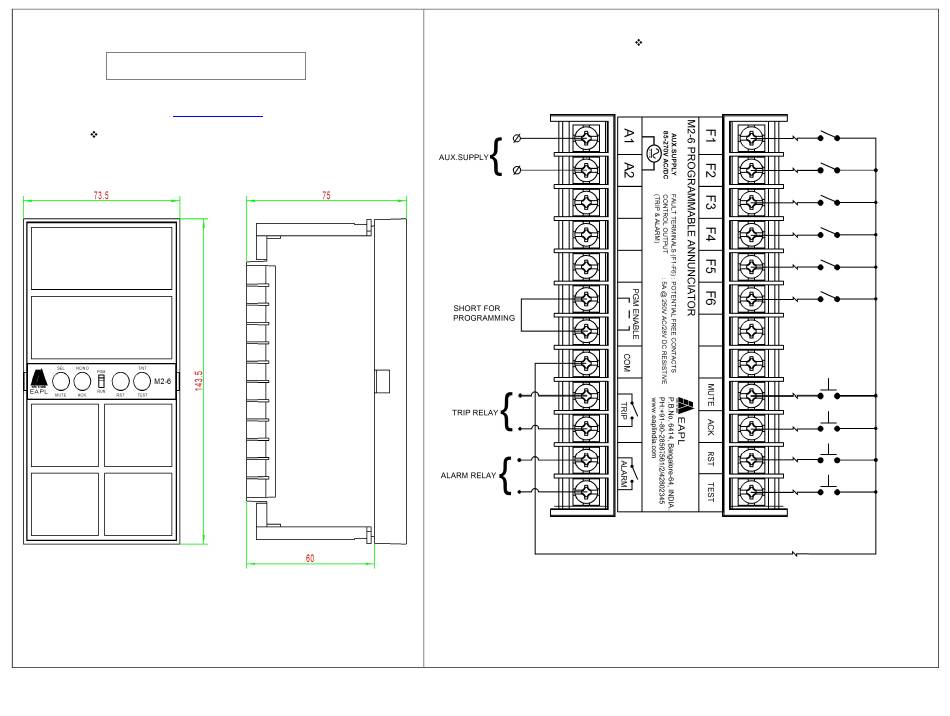

- Page 1 EAPL Model M2-6 Connection Diagram INSTRUCTION MANUAL M2-6 PROGRAMMABLE FAULT ANNUNCIATOR www.eaplindia.com DIMENSION Page 1 of 3 DOC NO: OD RN YN 03002 0 REV NO: 02 DATE: 21/01/2015...
- Page 2 FUNCTION Testing of windows for working condition M2-6 is a Programmable fault Annunciator having features like programming 1) Apply source voltage between A1 & A2 input fault for window annunciating w.r.t NO or NC , output relay for either TRIP 2) Remove the short between P1 &...
- Page 3 Follow the above procedure for the rest of the windows. Once the product life is over, you may send back the unit to EAPL for Once the programming of all the windows is over, remove short at “PGM disposition.
