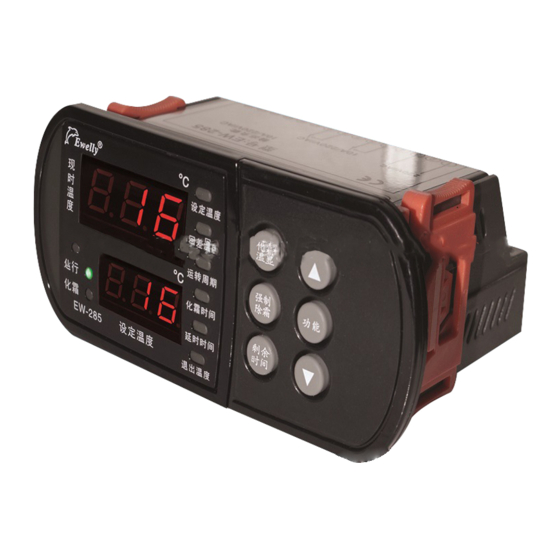

EWELLY EW-285 Quick Start Manual

/
Microcomputer Thermostat Serial
《EW-285 Directions》
Welcome to choose our instruments. This product is
a specialize micro-computer temperature controller for
refrigerator and freezer. The panel in English takes it
easy to use and avoid entering confusing menu repre-
sents the parameter setting. Our sensor is precisely ma-
de and sealed. It is moisture proof, therefore its perfor-
mances are more stable and reliable.
Technical Specifications：
规 格 说明
1、 Operating voltage : AC220V
2、 Output Load : 10A/220V/AC
： ≤3W
3、 Power Consumption
4、 Working environment
： — 0℃ ～50℃
5、 Control Range 5
：1℃
6、 Resolving Power
7、Input signal: one-way storage temperature sensor,
one-way defrosting sensor
：
8、 Overall Dimension 120(length) 53(wide) 84(high)mm
9、 Starter Size: 92(length) 44(wide)mm
Demand of install
Parameter setting: Hold the Set key until the light for
setting temperature is On. Press the Set key each time for
each menu setting (Recyclable operation). After enter
menu, press or to change the parameter.
Parameters for Procedure
Operation
Hold the Set key for 6 seconds
Press the Set key again
Press the Set key again
Press the Set key again
Press the Set key again
Press the Set key again
Hold the Heat key [forcing to
defrost] for 6 seconds
Press the Heat Temp key
[defrosting temp. display ]
Press the Time key
[remaining time ]
Both hold the key and
for 6 seconds.
±10％ 50HZ/60HZ
: －10℃ ～50℃ R H≤90%
： ±1℃
Accuracy
10Kx1.5Mx2
× ×
×
Indicator light
Temperature setting light On
The return difference
temperature light On
Run cycle light On
Defrosting time light On
Delay time light On
Exit defrosting temperature
light On
Defrosting light On
None indicator light is bright
None indicator light is bright
All indicator lights are bright
Demand of install
1.The voltage must accord with controller's demand.
The voltage's deviation is no more than ±5%.
2.The sensor line must keeps away from the power line.
3.Must distinction the interface with the sensors, power
and output relay.
Evaporator
Wiring diagram
220V/AC
1 2 3 4 5 6 7 8 9 0 1
Appearance Panel
Functions Factory setting
Ew-282
Setting range: －50～50℃
Setting range: 1～15℃
Setting range: 1～99 hours
Setting range: 1～45 minutes
Setting range: 1～5 minutes
Setting range: 5～35℃
The controller would firstly start the automatic defrosting
function, then automatically operates according to the
primeval settings.
Display temperature of the defrosting sensor
It displays the remaining time in the run cycle during
refrigeration, while displays defrosting remaining time
when it defrosts.
Temperature correction settings:－15～15℃
Thermal insulating material
Low-voltage air-return pipe
The sensor is installed the distance 5-10cm.
Mode:EW-285
Output Load:
10A/220V/AC
10A/220V/AC
1 1 12 3 4 5 1 1
Storehouse
sensor
220V/AC
heat
time
Display
－10℃
Press the Set key on display the
3℃
primeval settings, then press
or can change the
6 hour
settings, and finally the
controller will run auto-
10 minute
matically to the new parmeter.
3 minute
5℃
Larger digital displays
Larger digital means hours
Smaller digital means minutes
Larger digital displays
Code:285.12.02.27
Defrosting sensor
1
D efrost
sensor
heat
up
temp
set
down
