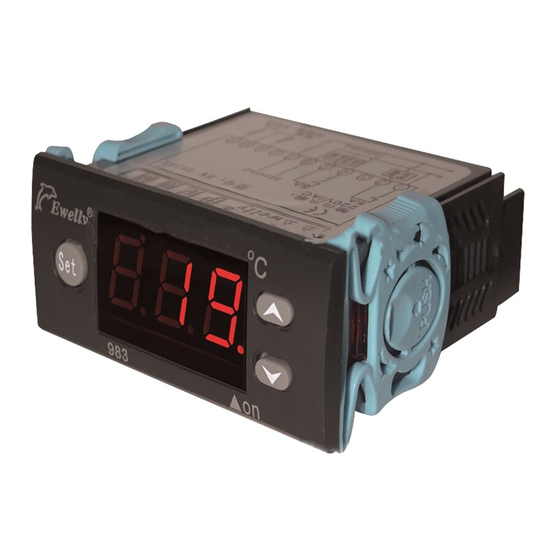

EWELLY EW-983A Directions

Microcomputer Thermostat Serial
《EW-983A Directions》
Firstly thanks for using our instrument. This product is a
control system especially developed for the machine integrated
with refrigeration and heating for seafood pool. It is an automa-
tic change of refrigeration and heating and defrosting function.
Our sensor is especially precisely made and sealed; it is
moisture-proof , therefore its performances are more stable and
reliable.
Technical Specifications：
1、 Operating voltage : AC220V
2、 Load current : 5A/220V/AC
： ≤3W
3、 Power Consumption
4、 Working environment
5、Controlled Output: one for compressor and
one for four-way valve.
： ℃ ～80℃
6、 Control Range 1
：1℃
7、 Resolving Power
8、Defrosting with water and condenser uses one sensor
respectively. The standard length is 1.5m ( The maximum
extension can be 50m. The extended cable should be shielded.)
：
9、 Overall Dimension 76(length) 40(wide) 67(high)mm
10、 Starter Size: 71(length) 29(wide)mm
Evaporator Evaporator Evaporator Evaporator Evaporator Evaporator Evaporator Evaporator Evaporator Evaporator Evaporator
Low-pressure Muffler
The sensor is stalled 5 to 10cm away.
Wiring diagram
Model：EW-983AH
Load：
220V/AC
5A 5A
For-way
Controlled
Compressor
valve
±10％ 50HZ/60HZ
: －10℃～50℃ R H≤90%
： ±1℃
Accuracy
× ×
×
Heat Preservation Material
Defrosting Sensor
Water Temperature
Defrosting
Sensor
Sensor
Demand of install
1. Setting of Control Temperature: Slightly press
control temperature and light 2 and light 3 will flash. Press
to change control temperature.
2. Parameter Setting: Hold
process and the indicator light will flash. Press
the change of function. Press
for each function. The modified parameter will be automatically
memorized.
Parameters for Procedure
Indicator Function
Setting range
2、3 flashes
Start defrost
1 flashes
2 flashes End defrost
Different
3 flashes
Set delayed
4 flashes
time
All four lights
Temperature
simultaneously
correction
flash
Brief on Operation
EW-983A
When light 1 is
Run at heating mode. The compressor and
always on
four-way valve work.
When light 1 is
Run at refrigeration mode. The compressor
always on
works independently.
When light 1 is
Run at defrosting mode. The compressor
always on
and four-way valve work.
Attention please:
when setting "HS", the ruler is: "HS" > ("setting-
temperature" + "d").
When setting "LS", the ruler is: "LS" > ("setting-
Temperature" － "d").
Code: 983AH.16.08.18
to display
for six seconds to enter setting
each time for
or to change the parameters
Ex-factory
Setting Range
Value
12
1～80
-39~0
-3
5～35
18
3
1～15
2
0～5
-15～15
00
Demonstration now
temperature
or
Unit
℃
℃
℃
℃
Minutes
℃
