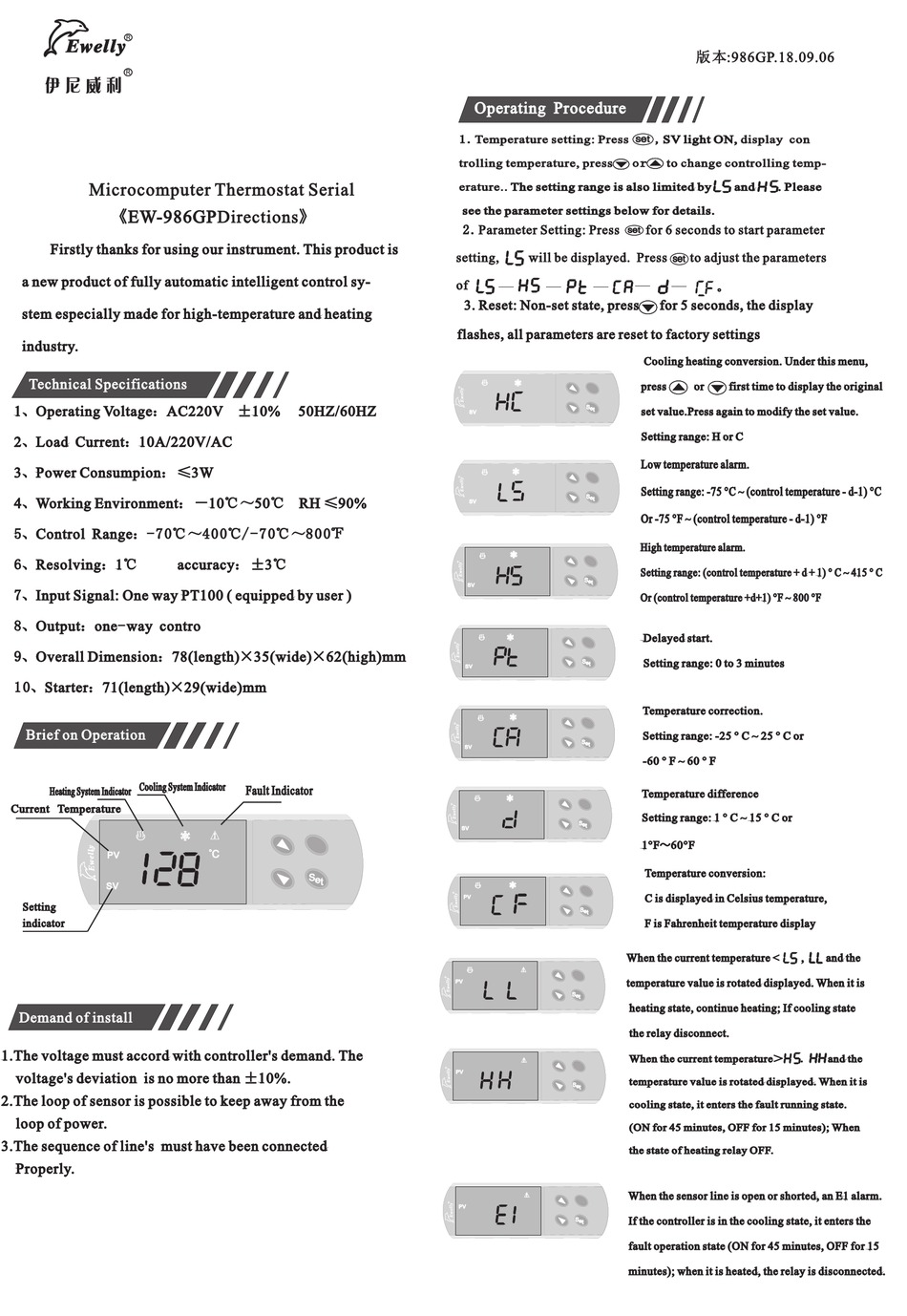

EWELLY EW-986GP Directions

Microcomputer Thermostat Serial
《EW-986GP
Firstly thanks for using our instrument. This product is
a new product of fully automatic intelligent control sy-
stem especially made for high-temperature and heating
industry.

Technical Specifications

1、Operating Voltage：AC220V ±10%
2、Load Current：10A/220V/AC
3、Power Consumpion： ≤3W
4、Working Environment：－10℃～50℃ RH ≤90%
5、Control Range：-70℃～400℃/-70℃～800℉
6、Resolving：1℃
7、Input Signal: One way PT100 ( equipped by user )
8、Output：one-way contro
9、Overall Dimension：78(length)×35(wide)×62(high)mm
1 0、Starter：71(length)×29(wide)mm

Brief on Operation

Cooling System Indicator
Heating System Indicator
Current Temperature
PV
SV
Setting
indicator
Demand of install
1.The voltage must accord with controller's demand. The
voltage's deviation is no more than ±10%.
2.The loop of sensor is possible to keep away from the
loop of power.
3.The sequence of line's must have been connected
Properly.
》
Directions
50HZ/60HZ
accuracy：±3℃
Fault Indicator
！
。
C
S e t

Operating Procedure

1 .
Temperature setting: Press
trolling temperature, press
erature.. The setting range is also limited by
see the parameter settings below for details.
2. Parameter Setting: Press
setting, will be displayed. Press
of
3. Reset: Non-set state, press
flashes, all parameters are reset to factory settings
S e t
SV
S e t
SV
S e t
SV
S e t
SV
S e t
SV
S e t
SV
PV
S e t
！
PV
S e t
！
PV
S e t
！
PV
S e t
版本:986GP.18.09.06
, SV light ON,
display con
o r
to change controlling temp-
and . Please
for 6 seconds to start parameter
to adjust the parameters
。
for 5 seconds, the display
Cooling heating conversion. Under this menu,
press or first time to display the original
set value.Press again to modify the set value.
Setting range: H or C
Low temperature alarm.
Setting range: -75 °C ~ (control temperature - d-1) °C
Or -75 °F ~ (control temperature - d-1) °F
High temperature alarm.
Setting range: (control temperature + d + 1) ° C ~ 415 ° C
Or (control temperature +d+1) °F ~ 800 °F
Delayed start.
Setting range: 0 to 3 minutes
Temperature correction.
Setting range: -25 ° C ~ 25 ° C or
-60 ° F ~ 60 ° F
Temperature difference
Setting range: 1 ° C ~ 15 ° C or
1°F～60°F
Temperature conversion:
C is displayed in Celsius temperature,
F is Fahrenheit temperature display
When the current temperature <
temperature value is rotated displayed. When it is
heating state, continue heating; If cooling state
the relay d isconnect .
＞
When the current temperature
temperature value is rotated displayed.
cooling state, it enters the fault running state.
(ON for 45 minutes, OFF for 15 minutes); When
the state of heating relay OFF.
When the sensor line is open or shorted, an E1 alarm.
If the controller is in the cooling state, it enters the
fault operation state (ON for 45 minutes, OFF for 15
minutes); when it is heated, the relay is disconnected.
, and the
.
and the
When it is
