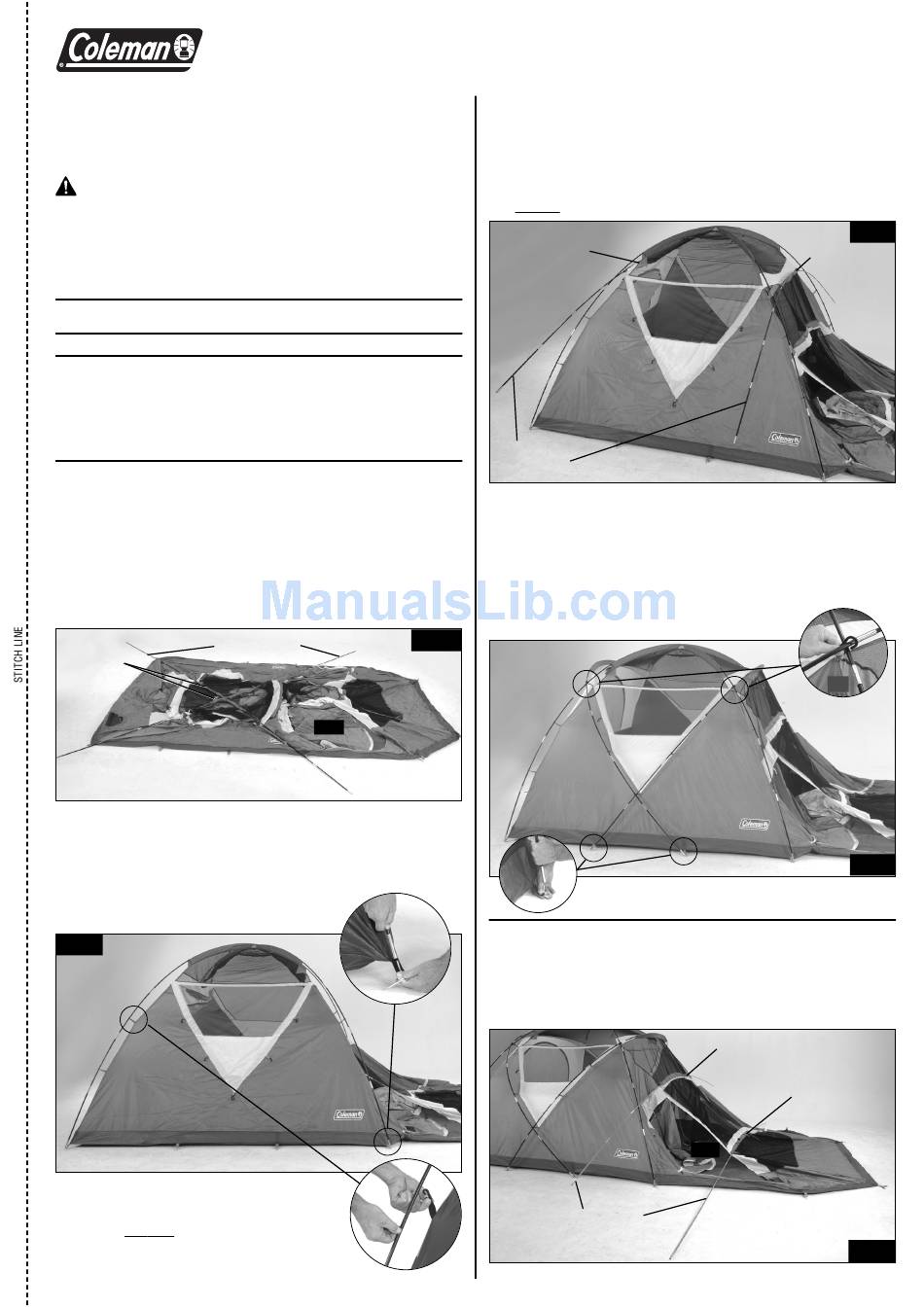

Coleman 2000001188 Installation Instructions

Before you begin

Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard
or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees.
• For best results in windy conditions, position end of tent into
the wind.
• Enlist the help of at least one other person to assist you when
it is time to assemble the tent.

Parts and Components

Description
Living Quarters, Main Poles, Black (2)
Living Quarters, Side Poles, Thin, Gray (2)
Screen Room Poles, Gray (2)
Rainfly
To Set Up Tent's Living Quarters
1. Unfold tent and spread out on a clean, level surface with the
door facing the desired direction. (Fig. 1)
2. Assemble main tent poles by interlocking both longer, black
shock-corded, poles.
3. Insert black main poles through sleeves, in top of the Living
Quarters area of tent, forming an "X" as shown. (Fig. 1)
Main Tent Poles
Sleeves
Living Quarters
4. Insert one end of each black main pole into pins in front
corners of tent. (Fig. 2 & 2A)
5. Go to opposite end of each pole and gradually apply pressure
to the pole forming an arch. Insert the pin into the pole end
at the tent corners. (Fig. 2 & 2A)
Fig. 2
6. Attach smaller frame clips along edges of
tent to black main poles.(Fig. 2B)
NOTE: DO NOT attach the larger frame
clips located near the top of the tent living
quarters. They will be used in later assembly.
KOHNA TENT 18' X 12'
TM
Part Number
5010000384
5010000383
5010000382
5010000385
Door
Screen Room
2A
2B
To Set Up Tent's Living Quarters
7. Assemble 2 interlocking shock-corded, thin, gray side poles.
8. Insert gray side poles through sleeves, in front and back of
the living quarters area of tent as shown. (Fig. 3)
NOTE: Make sure the side poles are positioned on the
outside of the black main poles installed earlier.
Sleeve at back of
Living Quarters
Thin, Gray,
Side Poles
9. Insert one end of each gray side pole into pins in side of tent
forming an "X". (Fig. 4 & Fig. 4A)
10. Go to opposite end of each pole and gradually apply pressure
to the pole forming an arch. Insert the pin into the pole end
at opposite side of tent forming an "X". (Fig. 4)
11. Attach large frame clips along edges of upper four corners
tent to connect black main poles and gray side
poles where they intersect. (Fig. 4 & 4B)
Fig. 1
4A
To Set Up Tent's Screen Room
1. Assemble screen room poles by interlocking both longer,
gray, shock-corded poles.
2. Insert gray poles through both sleeves on screen room as
shown. (Fig. 5)
Gray Screen
Room Poles
MODEL 2000001188
(continued)
Sleeve at back of
Screen Room
Sleeve at front of
Door
(continued on other side)
Fig. 3
Sleeve at front
of Living
Quarters
4B
Fig. 4
Screen Room
Fig. 5
