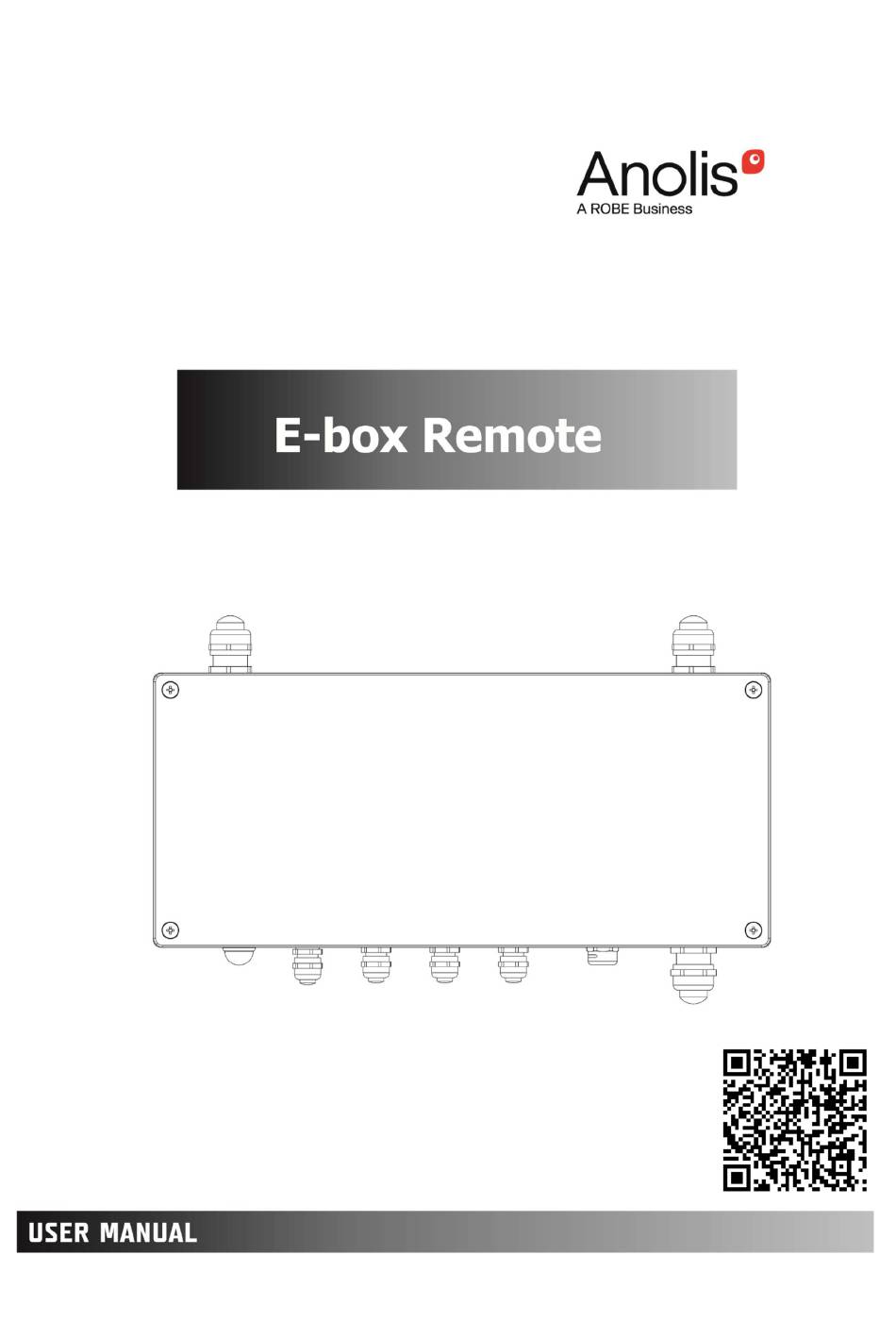

Version 1.7
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Anolis E-Box Remote and is the answer not in the manual?

Questions and answers

Related Manuals for Robe Anolis E-Box Remote

Summary of Contents for Robe Anolis E-Box Remote

  • Page 1 QR code for user manual Version 1.7...

  • Page 2: Table Of Contents

    E-box Remote Table of contents 1. Safety information ......................3 2. Fixture description......................4 3. Mounting..........................6 4. Eminere Remote modes ....................9 5. E-box Remote menu ....................... 13 5.1 DMX Addr ........................14 5.2 Info ..........................14 5.3 Personality ......................... 15 5.4 Test programs ......................

  • Page 3: Safety Information

    1. Safety information FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR E-box Remote! Save it for future reference. DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT! Make sure that the available voltage is not higher than stated on the fixture. Always disconnect the fixture from AC power before removing its cover.

  • Page 4: Fixture Description

    2. Fixture description A - Top cover B - Top cover screws C - Mounting holes D - Antenna cover E - Display F - Control buttons G - Screws of terminal blocks cover H - Terminal blocks cover View without top cover 1 - LED Output 1 (cable gland M20x1.5) 2 - LED Output 2 (cable gland M20x1.5) 3 - Power IN (cable gland M20x1.5)
  • Page 5 Connection points...

  • Page 6: Mounting

    3. Mounting Fixture must be installed by a qualified electrician in accordance with all national and local electrical and construction codes and regulations. Setting and addressing the E-box Remote without top cover can be done by a qualified person only! Note for cable glands.
  • Page 7 DMX connection Data + Data - Data ground (shielding) Ethernet connection Function Eminere Remote connection CE version: Mark Function Wire LEDs + DATA + Orange DATA - White LEDS - Black Ground Not connected US version: Mark Function Wire LEDs + DATA + Orange DATA -...
  • Page 8 NOTE: Each line of Emineres Remote connected to the LED output of the E-box Remote has to be terminated at the last fixture. EITHER connect a 120 Ohm resistor between terminals D+ and D- in the last fixture, OR terminate via RDM as described on page 12.

  • Page 9: Eminere Remote Modes

    Pass-Thr - (Pass through). LED modules are switched to an internal parallel connection. DMX addressing of connected LED modules has to be done manually by means of the Robe Universal Interface (or its wireless version Robe Universal Interface WTX) and the software RDM Manager.
  • Page 10 Examples of RDM manager screenshots. Initial screen of the RDM manager – Standard mode: E-box Remote is shown Connected LED module(s) is (are) shown Initial screen of the RDM manager – Pass Through mode: Only connected LED module(s) is (are) shown...
  • Page 11 Click on the LED device to show and set options in the Control panel: Occupied channels are displayed in the window DMX patch Click on the Click on the green green arrow to arrow to save save adjusted adjusted values values DMX preset and number of...
  • Page 12 Options in the control panel: As the E-box Remote permanently communicates with connected LED modules, the options “Demo mode”, “Init position active” and “Init position LEDs” cannot be used for control of LED modules.
  • Page 13 Last Eminere on each DMX line may be terminated by setting the ‘Manufacturer PID’ ’Terminator active’ to ‘1’, But ensure that the fixture is not already terminated with a 120 Ohm resistor as described on page 8. function "Pixel swap" from RDM control panel allows you to swap the pixel order. Example: In case of reconnecting the E-box Remote on the other end of Emineres Remote line, the pixel order is not in succession:...

  • Page 14: E-Box Remote Menu

    E-box Remote menu The E-box Remote is equipped with 2-row LCD display and four buttons which allows to address the fixture and set the fixture´s behaviour according to your needs. The four control buttons have the following functions: - ESCAPE button - to escape function or menu. - ENTER button - to select a function or confirm adjusted value.

  • Page 15: Personality

    IP Addr - this menu item shows the current IP address (the IP address "runs" on display). RDM UID - select this menu item to read the RDM UID (the RDM UID "runs" on display). on display). MAC Adr - select this menu item to read the MAC address (the MAC address "runs" Outputs Info - information about Emineres Remote connected to the LED outputs.

  • Page 16: Test Programs

    Software Update - the menu item switches the E-box Remote to the update mode. If the software update is done by means of the software ROBE RDM Uploader, switching the E-box Remote to the update mode will be done automatically.

  • Page 17: Software Update

    6. Software update E-box Remote software update can be done via an Ethernet connection between a computer running a ROBE Uploader software and E-box Remote or using the Robe Universal Interface (Robe Universal Interface WTX), DMX connection and the ROBE RDM Uploader software.The ROBE Uploader is a software for automatized software update of ROBE fixtures.
  • Page 18 Examples of connections for software update: 1. By means of the Ethernet connection...
  • Page 19 2. By means of DMX conection and the Robe Universal Interface (Robe Universal Interface WTX)

  • Page 20: Technical Specifications

    7. Technical specifications Input voltage 120-240 V AC; 277V AC Frequency 50/60Hz Power consumption 520W Fuse 1 T6.3A/500V AC Fuse 2 T8A/250V AC Fuse 3 T8A/250V AC LED Output Number of outputs Voltage 48V DC Max output power 380W per output Total Output power 480W max.

  • Page 21: Disposing Of The Product

    Eminere connection changed 08/12/2022 DMX chart ver. 3.1 added December 8, 2022 Specifications are subject to change without notice. Copyright © 2021-2022 Robe Lighting - All rights reserved Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
  • Page 22 (21-1800K, 66-2700K, 91-3200K,141-4200K, 211-5600K, 255- 6500K) Dimmer 0 - 255 Light intensity coarse (0-100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 1...
  • Page 23 Dimmer 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 0 - 255 Light intensity fine proportional Copyright © 2022 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 2...
  • Page 24 DMX protocol Eminere 1/2/3/4 and Eminere Side 1/2/3/4 - DMX protocol Eminere Inground 2/4 - DMX protocol Eminere Remote 1/2/3/4 - DMX protocol Version: 3.1 (23 modes in total) Mode/Channels in all Mode 16: RGBW(A) pixels, Mode 17 RGB pixels, Mode 18: TW pixels, 21-23 Mode 19- PW dimmer pixels Reserved...
  • Page 25 Dimmer 4 0 - 255 Light intensity coarse (0 - 100%) proportional Dimmer Fine 4 0 - 255 Light intensity fine proportional Copyright © 2022 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 4...
