Item #1008 649 684
Model #YG654-MBK

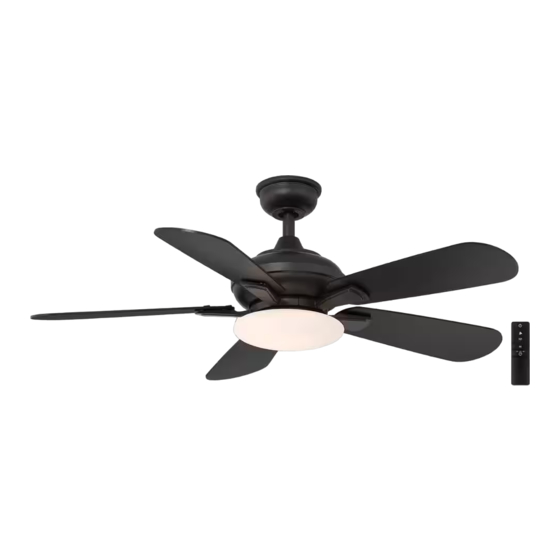

USE AND CARE GUIDE
44 IN BENSON
INDOOR CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
THANK YOU
We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection BENSON YG654-MBK
Summary of Contents for Home Decorators Collection BENSON YG654-MBK
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut 1.5V AAA battery Plastic wire nut...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Mounting bracket (preassembled) Blade Canopy ring (preassembled) Blade arm Canopy Light kit mounting plate Canopy bottom cover (preassembled) 14 watt LED Light kit Hanger ball/downrod assembly Glass shade Coupling cover Receiver Fan motor assembly Remote control...
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of re, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. The maximum angle allowable is 18°... -
Page 7: Assembly
Assembly — Standard Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the cotter pin (EE) and clevis pin (FF), and Remove the canopy ring (B) from the canopy (C). loosen the two collar setscrews (GG) from the motor collar. - Page 8 Assembly — Close-to-Ceiling Mounting Preparing the canopy Preparing the motor □ □ Remove the canopy ring (B) from the canopy (C). Remove the cotter pin (EE) and clevis pin (FF), and loosen the two collar setscrews (GG) from the motor □...
- Page 9 Assembly — Hanging the Fan Attaching the fan to the electrical box WARNING: To reduce the risk of re, electric shock or other personal injury, mount the fan only to an outlet box or supporting system marked acceptable for fan support and use the mounting screws provided with the outlet box.
- Page 10 Assembly — Hanging the Fan (continued) Preparing the receiver and remote control NOTE: The frequencies on your receiver and remote control have been preset at the factory. Before installing the receiver, make sure the dip switches on the receiver and remote control are set to the same frequency.
- Page 11 Assembly — Hanging the Fan (continued) Making the electrical connections Ground conductor Black White WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. CAUTION: Do not use with a wall light dimmer switch.
- Page 12 Assembly — Hanging the Fan (continued) Standard ceiling mounting Close-to-ceiling mounting WARNING: Make sure the tab on the mounting bracket (A) WARNING: Locking slots of the canopy (C) are provided properly sits in the groove in the hanger ball (E) before only as an aid to mounting.
- Page 13 Assembly — Attaching the Fan Blades Attaching the blades to the blade arms WARNING: Failure to properly seat the blades (H) on the blade arms (I) and engage in the spring locking mechanism (PP) could result in the fan blades (H) loosening and possibly falling.
- Page 14 Assembly — Attaching the Fan Blades Removing the rubber packing mounts □ The fan motor assembly (G) is shipped with rubber packing mounts (QQ) to prevent movement during transportation. Remove the ve rubber packing mounts (QQ) from the fan motor assembly (G) and discard prior to attaching the blade arms.
- Page 15 Assembly — Installing the Light Kit Attaching the LED light kit and glass shade CAUTION: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at the fuse box. Turning power off using the fan switch is not suf cient to prevent electric shock.
-
Page 16: Operation
Operation REMOTE CONTROL OPERATING INSTRUCTIONS - Press and release the button to turn the fan on or off. - Press and release 1 time - turns the fan on high speed. - Press and release 2 times - turns the fan on medium speed. - Press and release 3 times - turns the fan on low speed. -
Page 17: Care And Cleaning
Care and Cleaning Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling. Clean your fan periodically. - Page 18 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
