- Page 1 EMS-100GSM ENVIRONMENTAL MONITORING SYSTEMS GSM MONITORING PANEL Installation Manual www.edselectronic.com...
-
Page 2: Product Family

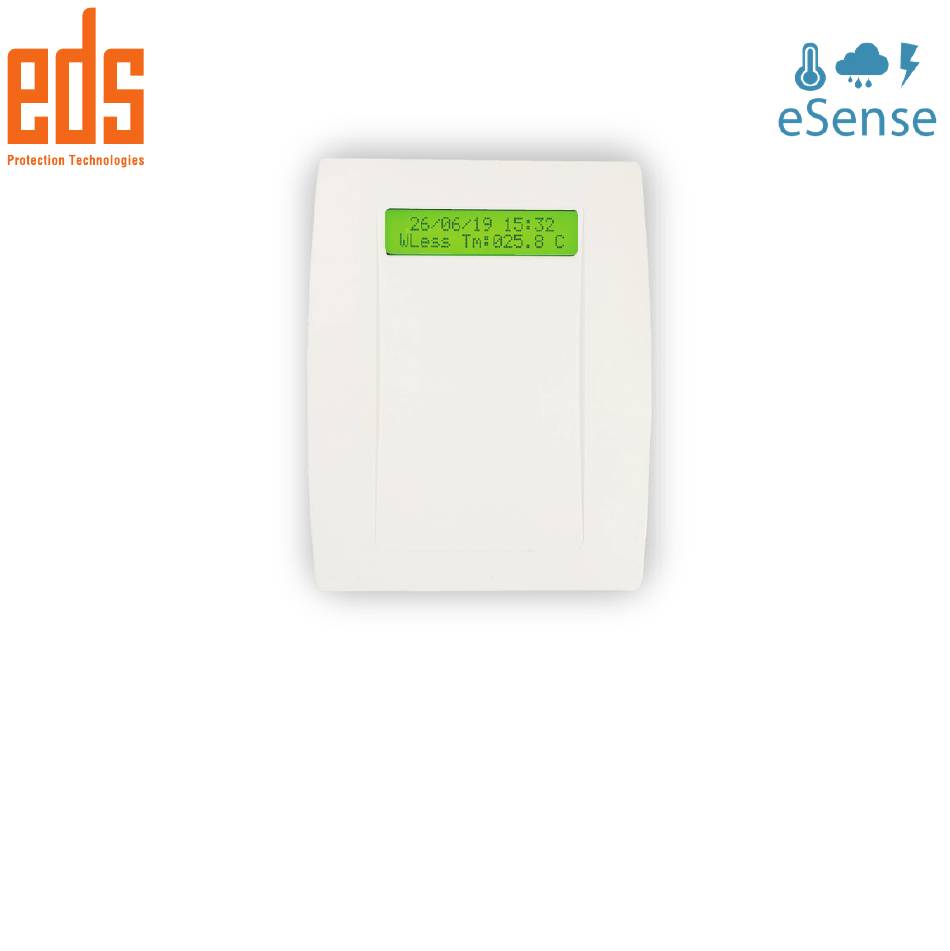

DESCRIPTION eSense appliance is designed to detect temperature, pressure, humidity, noise and voltage & frequency changes. The system consists of control panel and sensors and used in wide range of applications and markets such as medical, pharmaceutical, industrial, commercial and many more. eSense transmits the sensor data with wire or wireless 24/7 to the server. - Page 3 PHYSICAL...
-
Page 4: Specifications
SPECIFICATIONS Model EMS-100GSM Environmental class II Indoor Type Electrical Adapter input 5.6V DC/1A Sound Indicator Piezo buzzer Sound intensity 68dB (1m) Power LED Green Network 850/900/1800/1900 Mhz 2x16 LCD screen 434.2 Mhz Wireless operating frequency Modulation type gfsk Sensor Sensor Wired 1 (8 available with ES-100HUB connection) connection... - Page 5 The year and week of manufacture is included in the first four digit of your product serial number (located on the product identification label) Manufacturer EDS Elektronik Destek Sanayi ve Ticaret Ltd. Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785 Sancaktepe / İstanbul / Turkey Recycle...
- Page 6 MOUNTING Environmental Monitoring Systems The Esense Control Panel has an LCD screen that shows the date-time and sensor values. With the FN (Function Key) located on the left side of the Esense Control Panel, you can see the values of your sensors on the LCD screen. With the FN key, additional Wireless Sensor values communication of the Esense Environment Control Panel.
- Page 7 Mounting of the Esense Media Control Panel For wall mounting, you can mount the wall with dowels and screws and/or attach it to the wall with silicone tape. Screw place Cable slot Figure 2: Panel Wall Mounting It is recommended that the surface on which the wireless monitoring panel and sensors will be mounted is not ferromagnetic material (cold room warehouse door, steel, metal etc.).
- Page 8 If you do not want to mount on the wall, you can place on your table etc. vertically or horizontally. Figure 3: Panel Vertical / Horizonal Mounting...
- Page 9 Connect your Wired Sensor to the one relevant socket on the right side of the Esense Control Panel. Please do not position sensor next to the air conditioner. Figure 4: Wired / Wireless Temperature Sensor Figure 5: Wired / Wireless Humidity Sensor Insert the SIM card you have obtained from the relevant operators in the SIM card housing on the left side of the Esense Control Panel with the terminal pins facing the back (mounting surface) and the notch on the SIM...
- Page 10 First, WAITING DEVICE will appear on the LCD screen on the Esense Media Control Panel, then DEVICE OK will appear, and NETWORK OK will appear at the end. After all of this, the date-time and sensor value will come. Figure 6: LCD screen With Esense Control Panel, the wireless sensor should be placed within a maximum of 20m in closed area and within a maximum of 150m in open area.
- Page 11 User could connect wired sensors to the relevant ports located on the left or right side of the Esense Control Panel to attach additional wired sensor. Wait until the relevant sensor is on the device. By shortly pressing the FN key (max 1s) on the device, user could see multiple sensors and values.
- Page 12 ESENSE APP Open Appstore or Google play Search eSense and download If you confirm to get notifications, you will get real-time notifications for alarm condition happening on the demo esense devices. Please enter your username and password to login to your account.
- Page 13 Login to the demo account, Open https://www.esense.com.tr Write your login information If you would like to login to demo account please use below information. Please enter your username and password to login to your account. On main page you could see devices connected to the demo account Press on a device and you could see sensors connected and value of the sensor measuring.
- Page 14 Company List: List of companies have esense device Device Settings Device List: All device list on that Company Sensor Settings Sensor List: All sensors on that device Alarms recieved Report To get 1 hour/ 8 hour / 24 hour / 1 week User Settings PDF and EXCEL report printing Detailed Report...
-
Page 15: European Union
When your device has reached the end of its useful life, contact your local authority for disposal and recycling options, take it to a collection point for the recycling of electrical and electronic equipment, or hand it over to EDS Elektronik. -
Page 16: Warranty Certificate
WARRANTY CERTIFICATE The terms of the warranty is valid for products sold in Europe Union. Failure to occur during loading, unloading and shipment after delivery of the goods is not covered by the warranty. Damage, malfunction and information services caused by operating errors are not covered by the warranty. -
Page 17: Warranty Conditions
WARRANTY CONDITIONS 1. The warranty period starts from the delivery date of the product and is for 1 years. 2. The product is completely under the warranty scope of our company including all the pieces. 3. In case of the product’s breaking down within the warranty period, so the repair period is added to the warranty period. - Page 18 Directorate-General of Consumer Protection and Market Surveillance of the Ministry of Customs and Trade. Manufacturer title / Service address: EDS Elektronik Destek San. ve Tic. Ltd. Şti. Meclis Mah. Teraziler Cad. Hayran Sok. No:4 34785 Sancaktepe/İstanbul/Turkey Tel: 0216 528 45 00 Fax: 0216 314 17 80 e-mail: eds@eds.com.tr www.eds.com.tr...
- Page 19 MANUFACTURER OR IMPORT COMPANY SELLER COMPANY Title Title EDS Elektronik Destek San. ve Tic. Ltd. Address Address Şti. Phone Meclis Mah. Teraziler Cad. Hayran Sok. No:4 34785 Sancaktepe/İstanbul/Türkiye Phone Faks Faks 0216 528 45 00 E-mail E-mail 0216 314 17 80...
- Page 20 WARNING Keep instructions for use, follow all warnings, follow all procedures and instructions. Use the adapter provided in the box. The unit works with a 5.6V DC/1A adapter. Do not reverse voltage. Do not short circuit. For good performance, follow the instructions given in the installation section.
