DESCRIPTION eSense appliance is designed to detect temperature, pressure, humidity, noise and voltage & frequency changes. The system consists of control panel and sensors and used in wide range of applications and markets such as medical, pharmaceutical, industrial, commercial and many more. eSense transmits the sensor data with wire or wireless 24/7 to the server.
SPECIFICATIONS Model EMS-100WL Environmental class II Indoor Type Wireless Electrical Adapter input 5.6V DC/1A Sound indicator Piezo buzzer Sound intensity 68dB (1m) Power LED Green Network 10/100Mpbs Maximum network distance 2x16 LCD screen 434.2 Mhz Wireless operating frequency Modulation type gfsk Sensor Sensor connection...
Page 5
The year and week of manufacture is included in the first four digit of your product serial number (located on the product identification label) Manufacturer EDS Elektronik Destek Sanayi ve Ticaret Ltd. Meclis Mah. Teraziler Cad. Hayran Sk. No: 4 34785 Sancaktepe / İstanbul / Turkey...
Page 6

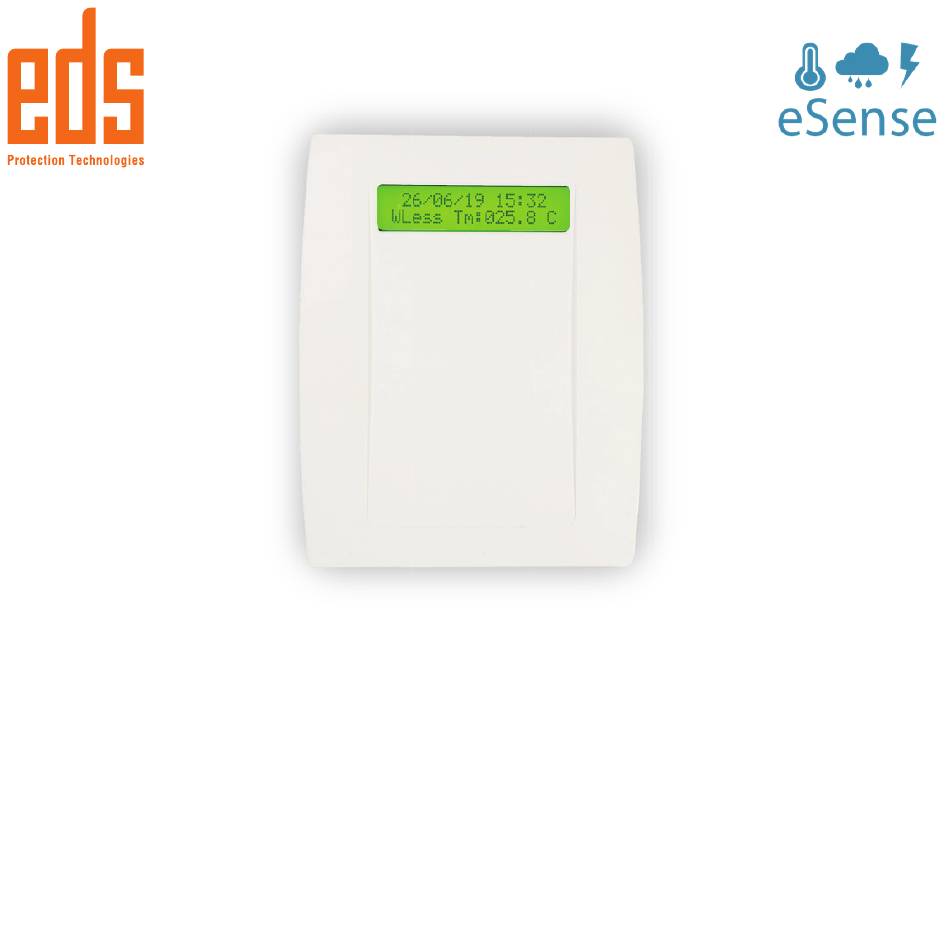

MOUNTING Environmental Monitoring Systems The Esense Control Panel has an LCD screen that shows the date-time and sensor values. With the FN (Function Key) located on the left side of the Esense Media Control Panel, you can see the values of your sensors with more than one on the LCD screen.
Page 7
Mounting of the Esense Media Control Panel Remove the Esense Media Control Panel and connection apparatus from the contents of the box. For wall mounting, you can mount the wall with dowels and screws and/or attach it to the wall with silicone tape. Screw place Cable slot Figure 2: Panel Wall Mounting...
Page 8
If you do not want to mount on the wall, you can place on your table etc. vertically or horizontally. Figure 3: Panel Vertical / Horizonal Mounting Remove the Internet Wire from the contents of the box. Connect it to Ethernet port on the Esense Control Panel.
Page 9
Connect your Wired Sensor to the one relevant socket on the right side of the Esense Control Panel. Please do not position sensor next to the air conditioner. Figure 4: Wired / Wireless Temperature Sensor Figure 5: Wired / Wireless Humidity Sensor Connect DC 5,6V 1A adaptor to plug.
Page 10
Figure 5: LCD screen With Esense Control Panel, the wireless sensor should be placed within a maximum of 20m in closed area and within a maximum of 150m in open area. Wireless sensors work with two alkaline batteries. You can replace the batteries by removing the two screws on the back of the wireless sensors.
Page 11
MONITORING Monitoring the Values over Web Browser Enter the IP address of your Esense Control Panel with the 8089 port at the end of the web browser address line. Select Get Data Values from the web page to be opened. You can also follow-up the values measured in the ambiance from the web page.
When your device has reached the end of its useful life, contact your local authority for disposal and recycling options, take it to a collection point for the recycling of electrical and electronic equipment, or hand it over to EDS Elektronik.
WARRANTY CERTIFICATE The terms of the warranty is valid for products sold in Europe Union. Failure to occur during loading, unloading and shipment after delivery of the goods is not covered by the warranty. Damage, malfunction and information services caused by operating errors are not covered by the warranty.
WARRANTY CONDITIONS 1. The warranty period starts from the delivery date of the product and is for 1 years. 2. The product is completely under the warranty scope of our company including all the pieces. 3. In case of the product’s breaking down within the warranty period, so the repair period is added to the warranty period.
Page 15
Directorate-General of Consumer Protection and Market Surveillance of the Ministry of Customs and Trade. Manufacturer title / Service address: EDS Elektronik Destek San. ve Tic. Ltd. Şti. Meclis Mah. Teraziler Cad. Hayran Sok. No:4 34785 Sancaktepe/İstanbul/Turkey Tel: 0216 528 45 00 Fax: 0216 314 17 80 e-mail: eds@eds.com.tr www.eds.com.tr...
MANUFACTURER OR IMPORT COMPANY SELLER COMPANY Title Title EDS Elektronik Destek San. ve Tic. Ltd. Şti. Address Address Meclis Mah. Teraziler Cad. Hayran Sok. No:4 34785 Sancaktepe/İstanbul/Türkiye Phone 0216 528 45 00 Phone Faks Faks 0216 314 17 80 E-mail E-mail eds@eds.com.tr - www.eds.com.tr...
Page 17
WARNING Keep instructions for use, follow all warnings, follow all procedures and instructions. Use the adapter provided in the box. The unit works with a 5.6V DC/1A adapter. Do not reverse voltage. Do not short circuit. For good performance, follow the instructions given in the installation section.
