Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!

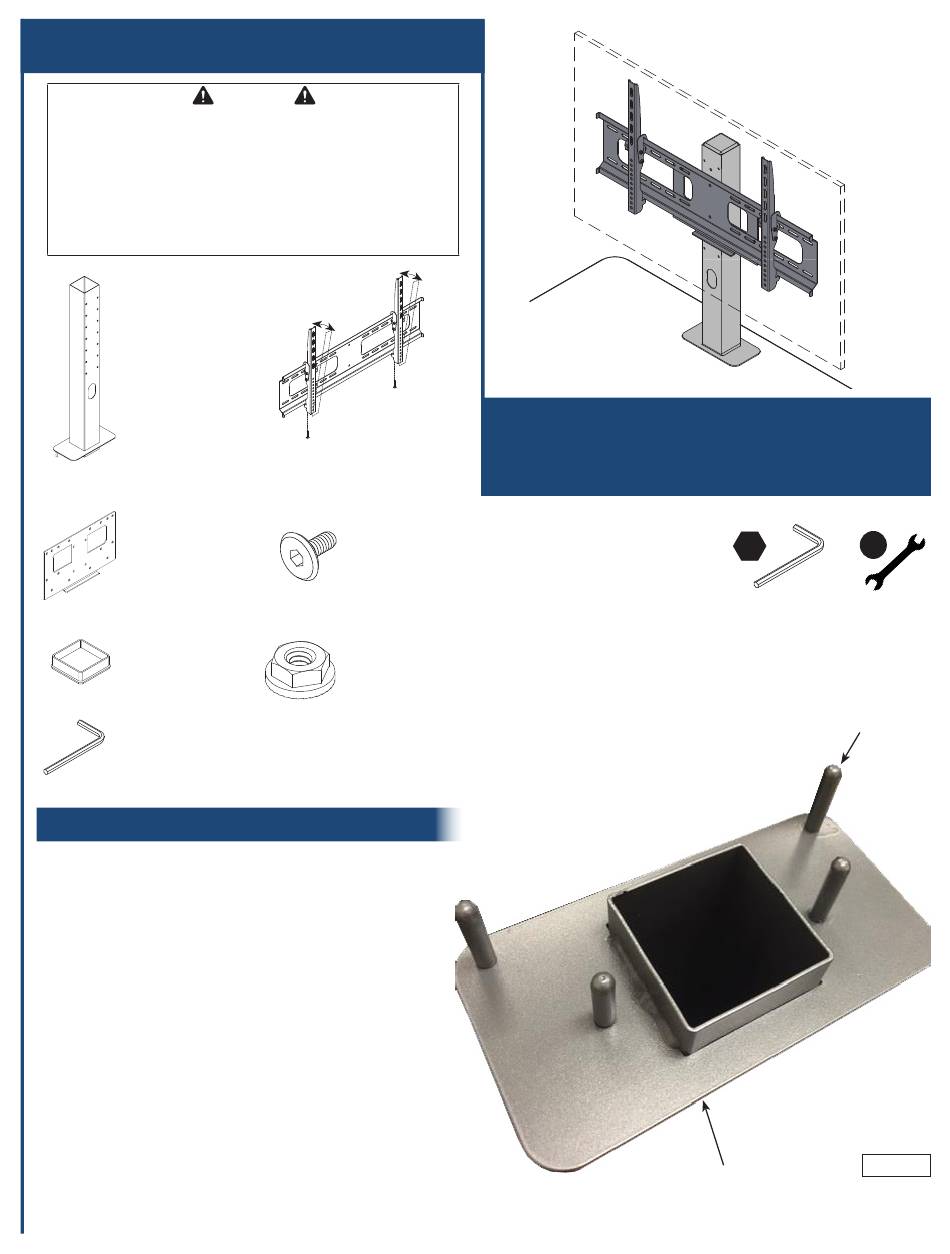

(1) 0118510
Upright assembly
(1) 0131924
Upright bracket
(1) 0118193
End cap 3" x 3"
(1) 025039
4mm Hex wrench
Installation
1. With the upright assembly upside-down, remove the rubber
thread protector from each threaded stud. Figure 1.
(A utility knife may be needed to cut off.)
(1) 0192849
VESA mount
(12) 052605
1/4-20 x 15mm
JC bolt
(4) 0108896
1/4-20 Flanged
serrated locknut
Display Stand
37130
4mm
Bottom of upright
assembly
0118583R6 Page 1 of 4
"
7/16
Rubber thread
protectors
Figure 1
Advertisement
Related Manuals for Spectrum 37130
Summary of Contents for Spectrum 37130
- Page 1 Any parts damaged during shipment must be reported within 5 days of receipt. To report information regarding missing parts or damage, to purchase parts or acces- sories, or if you have any questions, please contact us. www.spectrumfurniture.com 800-235-1262, 715-723-6750 Thank you for purchasing Spectrum products! (1) 0118510 (1) 0192849 Display Stand Upright assembly...
- Page 2 Be sure the worksurface being used has the cutout / hole pattern shown in Figure 2.1, or Figure 2.2. Mounting holes and cutout needed (on flat end of worksurface) InVision / Element / Nano Tables Optio Tables Figure 2.1 Figure 2.2 An unattached worksurface will facilitate installation of the display stand fasteners.
- Page 3 Upright bracket Attach the upright bracket to the upright assembly as shown using (4) 1/4-20 x 15mm JC bolts and tighten securely. (Multiple mounting holes / height positions are available on the upright assembly). Figure 4. 1/4-20 x 15mm JC bolts (4 required) Upright assembly...
- Page 4 Customer Expectations). Remove these Upright assembly screws We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty from the date of delivery. 1/4-20 Flanged serrated locknut For a listing of all product specifi...
