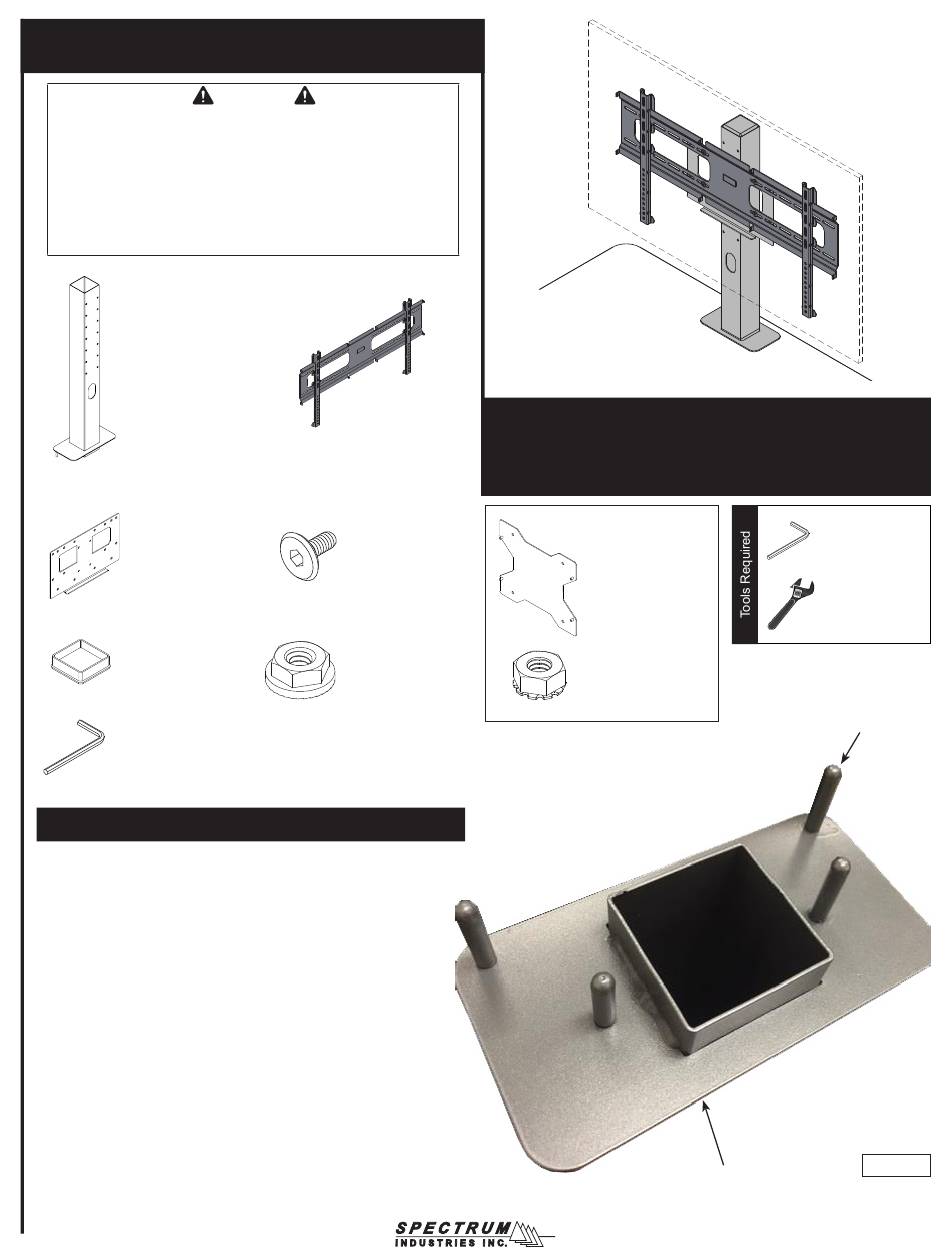

Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0118510
Upright assembly
(1) 0131924
Upright bracket
(1) 0118193
End cap 3" x 3"
(1) 025039
4mm Hex wrench
Installation
1. With the upright assembly upside-down, remove the rubber
thread protector from each threaded stud. Figure 1.
(A utility knife may be needed to cut off.)
(1) 0119747
Monitor mount
(12) 052605
1/4-20 x 15mm
JC bolt
(4) 0108896
1/4-20 Flanged
serrated locknut
Display Stand
37130
(1) 0139729
200mm VESA
adapter plate
(4) 0106543
1/4-20 Keps nuts
Bottom of upright
assembly
0118583R4 Page 1 of 4
4mm Hex wrench
(included)
7/16" or Adjustable
wrench
Rubber thread
protectors
Figure 1
Advertisement
Table of Contents
Related Manuals for Spectrum 37130
Summary of Contents for Spectrum 37130
- Page 1 Any parts damaged during shipment must be reported within 5 days of receipt. To report information regarding missing parts or damage, to purchase parts or acces- sories, or if you have any questions, please contact us. www.spectrumfurniture.com 800-235-1262, 715-723-6750 Thank you for purchasing Spectrum products! (1) 0118510 (1) 0119747 Display Stand Upright assembly...
- Page 2 Be sure the worksurface being used has the cutout / hole pattern shown in Figure 2.1, or Figure 2.2. Mounting holes and cutout needed (on flat end of worksurface) InVision / Element / Nano Tables Optio Tables Figure 2.1 Figure 2.2 An unattached worksurface will facilitate installation of the display stand fasteners.
- Page 3 Upright bracket Attach the upright bracket to the upright assembly as shown using (4) 1/4-20 x 15mm JC bolts and tighten securely. (Multiple mounting holes / height positions are available on the upright assembly). Figure 4. 1/4-20 x 15mm JC bolts (4 required) Upright assembly...
- Page 4 200mm VESA adapter plate (optional) Hanging rail Note: The included adapter plate is for 200mm VESA monitor applications. To install, align the adapter plate posts with the hanging rail mounts and secure with 1/4-20 Keps nuts. 2 0 0 a d a V E S p t e r p l a t e...
