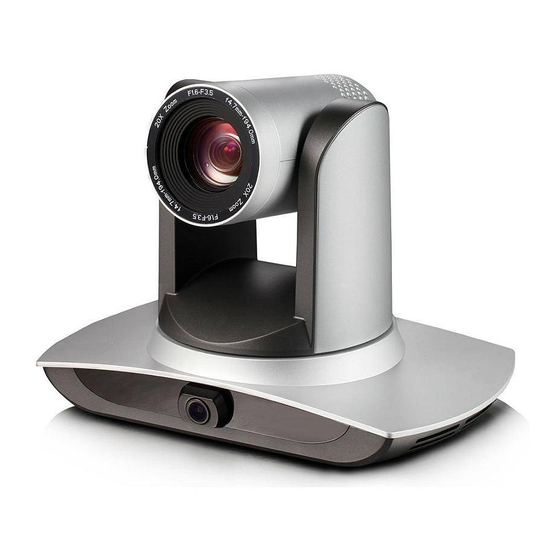

minrray UV100T User Manual

Teacher tracking camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual for Teacher Tracking Camera
UV100T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UV100T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for minrray UV100T

Summary of Contents for minrray UV100T

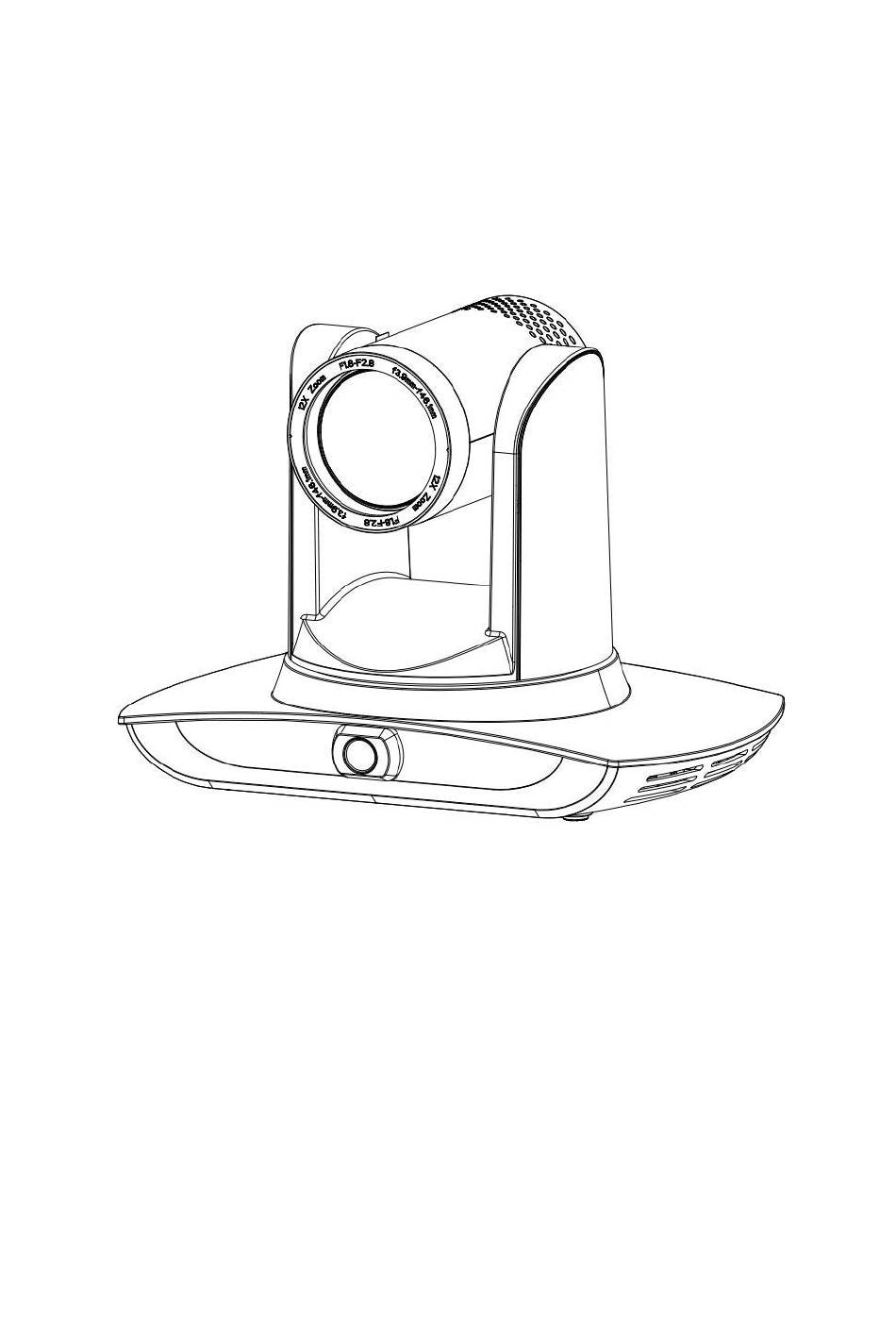

  • Page 1 User Manual for Teacher Tracking Camera UV100T...

  • Page 2: Precautions

    Precautions This manual details functions, installation, operation principles and methods of teacher tracking camera. Please read this manual carefully before installation and use. How to use In order to prevent this product or products connected to it from being damaged, please use it within its prescribed scope of use.
  • Page 3 6) Do not power on before finishing installation; Do not dismantle the product without permission This product contains no parts which can be maintained by users. Any damage arising from dismantling the product by user without permission will not be included in warranty. Magnetic field interference Magnetic field under specific frequency may affect this product image;...

  • Page 4: Table Of Contents

    Table of Contents Precautions.....................................1 1 System overview..................................4 1.1 System introduction................................. 4 1.2 Product advantages................................. 4 1.3 Product features................................5 1.4 Order model..................................5 2 Interfaces.....................................6 3 Dimensions..................................9 4 System connection................................10 4.1 Installation layout................................10 4.2 System wiring................................. 11 5 Configuration tools................................12 5.1 Set IP address of the tracking machine.........................

  • Page 5: System Overview

    1 System overview 1.1 System introduction Teaching tracking camera system solution is a dedicated smart camera solution leading in international education information industry. Teaching tracking camera products feature built-in high speed processor and advanced image processing and analytical algorithm, which allows it to track and detect teachers, students and blackboard-writing accurately and quickly.

  • Page 6: Product Features

    1.3 Product features Full HD image: With 1/2.8 inch high quality image sensor, its maximum resolution ratio reaches1920x1080;  Multiple optical zoom lens: 12X and 20X optical zoom lens are available. The lens features 72.5°  distortionless wide viewing angle; Advanced focusing technique: The advanced automatic focusing algorithm allows automatic focusing be ...

  • Page 7: Interfaces

    2 Interfaces Front view Rear view SDI model: 1. Close-up lens 2. Panorama lens 3. LAN network port for panorama lens 4. SDI output 1 (panorama lens output) 5. SDI output 2 (close-up lens output) 6. RS-232 control port 7. Audio input port 8.
  • Page 8 HDMI U3 Model： 1. Close-up lens 2. Panorama lens 3. USB3.0 output 1 (panorama lens output) 4. HDMI output 1 (panorama lens output) 5. LAN network port for panorama lens 6. USB3.0 output 2 (close-up lens output) 7. HDMI output 2 (close-up lens output) 8.
  • Page 9 Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal ground Receive Data Signal ground IR Commander Signal IR IR OUT No Connection...

  • Page 10: Dimensions

    3 Dimensions...

  • Page 11: System Connection

    4 System connection 4.1 Installation layout Space for Space for installation of student-tracking blackboard-writing camera, student status detection camera detection and camera and student binocular camera Blackboard Platform Student area Space for installation of teacher tracking camera, teacher status detection camera and teacher binocular camera...

  • Page 12: System Wiring

    Teacher tracking camera is installed at place 1.8-2.5m from ground (distance from panoramic lens to ground), 5-15m from blackboard (when the distance is 5-9m, 4mm panoramic lens is recommended; when distance is 9-15m, 6mm panoramic lens is recommended). Teacher tracking camera should be installed near central axis of the classroom as much as possible to get the best result of tracking camera shooting.

  • Page 13: Configuration Tools

    5 Configuration tools 5.1 Set IP address of the tracking machine Open the IVESmart configuration tool, click the search icon (see Figure 5.1-1 for details), the configuration interface will display all valid devices in the LAN, click the IP of the device to be configured, check Enable, and click OK.

  • Page 14: Configure Tracking Parameters

    5.2 Configure tracking parameters Set the process Stop tracking Set Panoramic , platform preset Set tracking and mask area Set tracking parameters Start Tracking Here, the following is a description of settings according to the process. The main interface of configuration tool is shown in Figure 5.2-1.
  • Page 15 Figure 5.2-1 Operation interface...
  • Page 16 Platform preset: Control teacher tracking camera to make platform (we suggest that teachers stand in the middle of platform, if any) get desired visual result in camera image, then click and save Platform preset. During normal tracking, size of teacher’s image in the picture uses Platform preset as a reference.
  • Page 17 Figure 5.2-3 Operation interface 3. Set tracking parameters Target lost: when target loses, the close-up lens will return to designated preset position. This preset position can be panoramic preset, platform preset or maintain original position. Figure 5.2-4 Operation interface Tracking Setting: Real-time tracking Area Tracking...
  • Page 18 Figure 5.2-5 Operation interface Advanced Setting: Sensitivity: In the teacher tracking state, when the tracked target changes from a stationary state to a moving state, how far it needs to move will trigger the tracking camera to track. The higher the setting sensitivity, the smaller movement of the tracking target will trigger the camera tracking action.
  • Page 19 broadcasting host". After the relevant settings are completed, you need to click “Save”. According to specific scenarios and customer needs, you can enter the advanced settings multiple times to modify the configuration values to achieve the best results.

  • Page 20: Network Update

    5.3 Network update The device needs to be upgraded through the IVESmart configuration tool. Click the upgrade icon to enter the upgrade interface, as shown in the figure below: Figure 5.3-1 Operation interface When upgrading, you should pay attention to whether the camera to be upgraded is a close-up camera or a panoramic camera, and then click Select ->...

  • Page 21: Recording Host Connection Instructions

    After upgrading is completed, the camera will perform self-inspection. Note: After grading, you can restore factory settings by combination key [*] [#] [6] on remote control or by remote control menu. 6 Recording Host Connection Instructions 6.1 Auto tracking control The recording host sends command by LAN network port or concentrator RS232 serial port and controls automatic tracking motion of teacher tracking camera.

  • Page 22: Action Code Docking

    Figure 6.1-1 Operation interface 2. Command Type Command Start teacher tracking 0x810x0A 0x08 0x01 0x020xFF Stop teacher tracking 0x81 0x0A 0x08 0x01 0x03 0xFF 6.2 Action Code Docking...
  • Page 23 Tracking status of teacher tracking camera will be feed back to recording host via network (UDP transmission mode) or concentrator (RS232 serial port) in the form of action code. 1. Configure recording host address If recording host uses LAN to receive action code, then it needs to configure host address by IVESmart configuration tool.
  • Page 24 2. Configure action code Edit action code as needed via IVESmart configuration tool. Click Setting -> Param After modification, click “Save”, as shown below: Figure 6.2-2 Operation interface...

  • Page 25: Description Of Remote Control

    7 Description of remote control 7.1. Description of keys 1. Standby key Long press standby key for 3s, camera enters standby mode, long press this key again for 3s, camera will perform self-inspection again and return to HOME position. When setting #0 as preset, when there is no action within 12s, the holder will return to #0 preset. 2.
  • Page 26 8. Holder control key UDLR (Up, Down, Left, Right) arrow/l it controls UDLR movement of the holder. [HOME] key: Holder returns to center position or enters the next level menu. 9. Backlight compensation control key Backlight on/off: Turn on or off backlight. 10.
  • Page 27 9) [#] + [#] + [1] : Shift video format 1080P50 10) [#] + [#] + [2] : Shift video format 1080I60 11) [#] + [#] + [3] : Shift video format 1080I50 12) [#] + [#] + [4] : Shift video format 720P60 13) [#] + [#] + [5] : Shift video format 720P50 14) [#] + [#] + [6] : Shift video format 1080P30 15) [#] + [#] + [7] : Shift video format 1080P25...
  • Page 28 4) Zoom Control ZOOM+:press【ZOOM+】key to zoom in ZOOM-:press【ZOOM-】key to zoom out Press and hold the keys,the action will stop as soon as the key is released. 5) Focus Control Auto:autofocus mode Manual:manual focus mode Focus+(near):Press【FOCUS+】key(Valid only in Manual focus mode) Focus-(far):Press【FOCUS-】key(Valid only in Manual focus mode) Press and hold the keys,the action of focus will keep...

  • Page 29: Menu Setting

    8 Menu Setting 8. 1 Main Menu In normal image, press [MENU] key, the screen displays the menu content, use the arrow to point to the desired item. 主菜单 MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 语言设置／Language 中文/Chinese Language English (设置) (Setup) (相机参数) (Camera) (P/T/Z) (P/T/Z) (视频格式)
  • Page 30 8.2 System parameter settings On the main menu, move the cursor to (Settings), press [HOME] key to enter Settings page, as shown below. SETUP 设置 ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto ＝ Visca Address 协议 自动 Visca Address Fix VISCA 地址 PELCO-P Address VISCA 地址固定...
  • Page 31 Exposure On CAMERA menu, move the cursor to (EXPOSURE), press [HOME] key to enter exposure page, as shown below. EXPOSURE 曝光 ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto 曝光模式 自动 曝光补偿 关 背光 关 Flicker 50Hz 50Hz 抗闪烁 G.Limit 增益限制 动态范围 [↑↓]Select [←→]Change Value [↑↓]选择...
  • Page 32 颜色 COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 白平衡模式 自动 WB Mode Auto 红微调 RG Tuning 蓝微调 BG Tuning 100% 饱和度 Saturation 100% 色度 白平衡灵敏度 低 AWB Sensitivity [↑↓]选择 [←→]修改 [↑↓]Select [←→]Change Value [菜单]返回 [Menu]Back WB Mode: Options: auto, 3000K, 4000K, 5000K, 6500K, manual, one-key white balance. RG Tuning: Options: -10~10 (only valid in auto mode) BG Tuning: Options: -10~10 (only valid in auto mode) Red gain: Options: 0~255 (only valid in manual mode)
  • Page 33 Dzoom: Options: on/off DCI: dynamic contrast, options, off, 1~8 Focus On CAMER menu, move the cursor to (FOCUS), press [HOME] key to enter FOCUS page, as shown below. FOCUS 聚焦 ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto 聚焦模式 自动 AF-Area Center 聚焦区域 中...
  • Page 34 P/T/Z P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝ ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 景深比例 开 Speed by zoom 变倍速度 Zoom speed 图像冻结 关 Image Freezing 加速曲线 慢 Acc Curve Slow [↑↓]选择 [←→]修改 [↑↓]Select [←→]Change [菜单]返回 Value[Menu]Back Speed by zoom: It only works on remote control, on, off; when camera zooms in, remote control will make holder rotate at lower speed.

  • Page 35: Technical Parameters

    1. At this moment, it is needed to change remote control address to 1, that is, press Camera and select [1], control will function. 9 Technical parameters Parameter/model UV100T-12 UV100T-20 Tracking camera, lens parameters Image sensor 1/2.8inch high quality CMOS sensor Effective pixels 2.07MP, 16: 9...
  • Page 36 Video regulation Brightness, hue, saturation, contrast ratio, sharpness, Gamma Signal to noise ratio >55dB Panoramic lens Image sensor 1/2.8inch high quality CMOS sensor Effective pixels 2.07 M Lens Manual focus Output port SDI Model: SDI, LAN, HDMI/U3 Model: HDMI, USB3.0, LAN Field angle (D/H/V) 4mm: 89.6°\71°\52.2°...

  • Page 37: Visca Protocol Command List

    10 VISCA protocol command list When the camera is operated normally, we can control it via RS232C/RS485 port (VISCA IN). Parameters of RS232C serial port are as follows: Baud rate: 2,400/4,800/9,600/115,200 bit/s; start bit: 1 bit; digit bit: 8 bits; stop bit: 1 bit; verification bit: none After powering on, camera rotates to left bottom first, and then returns to middle.
  • Page 38 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM_Zoom Focus Direct 0t 0u 0v 0w FF tuvw: Focus Position Auto 8x 01 04 35 00 FF 3000K 8x 01 04 35 01 FF 4000k 8x 01 04 35 02 FF One Push mode CAM_WB 8x 01 04 35 03 FF...
  • Page 39 CAM_NR (2D) 8x 01 04 53 0p FF P=0-7 0:OFF CAM_NR (3D) 8x 01 04 54 0p FF P=0-8 0:OFF p = 0 – 4 0.45 Default CAM_Gamma 8x 01 04 5B 0p FF 0.50 0.55 0.63 8x 01 04 23 00 FF CAM_Flicker 50HZ 8x 01 04 23 01 FF...
  • Page 40 P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 Set camera video 2:1080i60 CAM_VideoSystem 8x 01 06 35 00 0p FF system A: 1080P59.94 3:1080i50 B: 1080i59.94 4:720P60 C: 720P59.94 5:720P50 Command Function Command package Notes D: 1080P29.97 6:1080P30 E: 720P29.97 7:1080P25 8x 01 06 01 VV WW 03 01 FF Down...
  • Page 41 CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position CAM_ BrightPosiInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position y0 50 02 FF CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 03 FF CAM_ExpCompPosInq 8x 09 04 4E FF...

  • Page 42: Pelco-D Protocol Command List

    P: 0~E Video format 0:1080P60 8:720P30 1:1080P50 9:720P25 2:1080i60 A: 1080P59.94 3:1080i50 VideoSystemInq 8x 09 06 23 FF y0 50 0p FF B: 1080i59.94 4:720P60 C: 720P59.94 5:720P50 D: 1080P29.97 6:1080P30 E: 720P29.97 7:1080P25 ww: Pan Max Speedzz: Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF Tilt Max Speed y0 50 0w 0w 0w 0w...

  • Page 43: Pelco-P Protocol Command List

    Query Pan Value High Value Low Position 0xFF Address 0x00 0x59 Byte Byte Response Query Tilt 0xFF Address 0x00 0x53 0x00 0x00 Position Query Tilt Value High Value Low Position 0xFF Address 0x00 0x5B Byte Byte Response Query Zoom 0xFF Address 0x00 0x55...
  • Page 44 Query Pan Value High Value Low Position 0xA0 Address 0x00 0x59 0xAF Byte Byte Response Query Tilt 0xA0 Address 0x00 0x53 0x00 0x00 0xAF Position Query Tilt Value High Value Low Position 0xA0 Address 0x00 0x5B 0xAF Byte Byte Response Query Zoom 0xA0...

  • Page 45: Maintenance And Troubleshooting

    13 Maintenance and troubleshooting 13.1 Maintenance 1) Please disconnect power of camera if it is not in long-term use. Meanwhile, disconnect AC power adapter from AC socket. 2) To avoid scratch, use soft cloth or cotton to wipe off dust on camera case and 3) Please clean camera lens with dry soft cloth.

  • Page 46: Copyright Statement

    with camera IP address. d. Click “start” in computer, select “operate”, and enter cmd; click “confirm”, DOS command window appears; input ping 192.168.5.163, press Enter, information below means network connection functions well. Copyright Statement All the contents in this manual and its copyright are owned by the company. No one is allowed to imitate, copy, or translate this manual without the company’s permission.
