Operating Instructions
Straight Flat Bar Towel Warmer 7 Bar Ladder
For Models: GTRMF7C , GTRMF7B

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLATINUM GTRMF7C and is the answer not in the manual?

Questions and answers

Summary of Contents for Goldair PLATINUM GTRMF7C

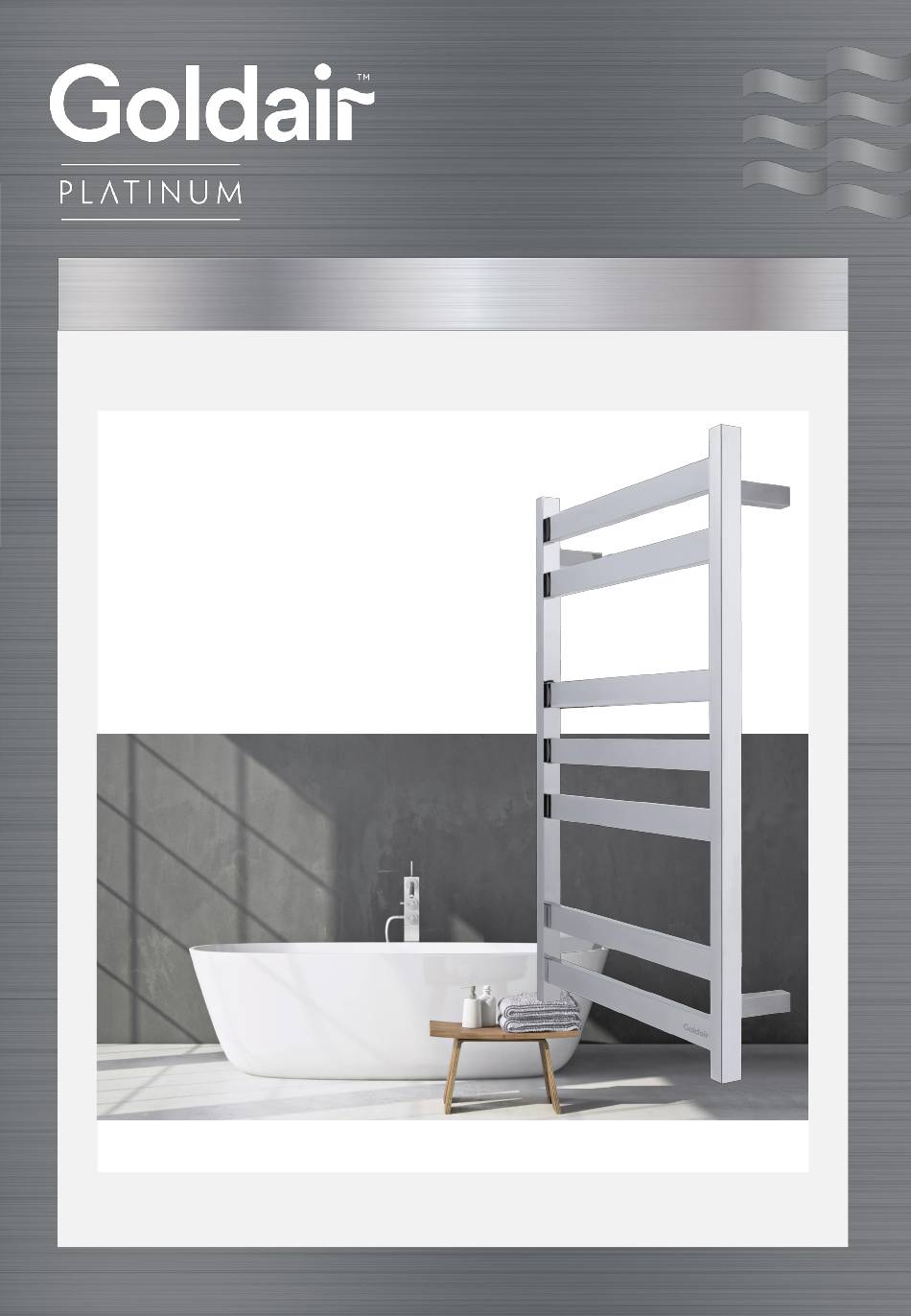

  • Page 1 Operating Instructions Straight Flat Bar Towel Warmer 7 Bar Ladder For Models: GTRMF7C , GTRMF7B...
  • Page 3 General Care and Safety Guide When using any electrical appliance, basic safety precautions should always be observed. READ THESE INSTRUCTIONS CAREFULLY. This appliance is intended to warm and dry towels and therefore is hot to the touch. When used by or near young children or infirm persons, close supervision is necessary. Young children should be supervised to ensure that they do not play with the appliance.
  • Page 4: Specifications

    Specifications SPECIFICATIONS/DIMENSIONS Model: GTRMF7B GTRMF7C Height: 825mm 825mm Width: 600mm 600mm Depth: 100mm 100mm ELECTRICAL Wattage: Colour: Black Stainless Steel Power supply: 230-240 VAC, 50Hz, single phase Ingress Protection Rating: IP55 Dimensions...
  • Page 5 Components 2 x Upper Legs 4 x Grub Screws (Already fitted to Legs) 2 x Screws 2 x Lower Legs for Securing Upper Legs 1 leg has a cut out for exposed wire install 2 x Screws for Securing Lower Legs 3 x Mounting Bush 4 x Long Screws For mounting to wall...
  • Page 6 WALL PREPARATION Goldair Heated Towel Rails may be fixed to any type of timber stud, steel stud or masonry (solid or cavity) wall. Walls made from timber or steel require studs at the correct position for all rails. If the precise position can’t be determined early in the job, consider sheets of 18mm construction ply,...
  • Page 7: Mounting Instructions

    The Ladder Towel Rail should be installed in accordance to local governing AS/NZS regulations. The Goldair Heated Towel Rail can only be mounted 1 way. Your towel rail is mounted by legs. The top two legs are fixed with a screw on each of the 4 legs as indicated in Fig1.
  • Page 8 Installing your Towel Rail 1. Feed a leg mounting screw through the middle of the upper leg (upper legs have a welded mounting point inside the leg). There is a locator hole at the base end which this screw should line up with and pass through. 2.
  • Page 9 Installing your Towel Rail 8. Drill holes in the marked location to suit the screws provided, If installing into Gib board, Concrete or Block, insert wall plugs into the wall. 9A.If using an exposed cable, insert a long screw through the mounting bush, then fix into wall ensuring the fit is secure –...
  • Page 10 PROOF OF PURCHASE To receive warranty retain receipt as proof of purchase. SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm...
  • Page 11: Three Year Warranty

    In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
  • Page 12 New Zealand PO Box 100707, North Shore Mail Centre, Auckland, 0745 www.goldair.co.nz Australia PO Box 574, South Morang, Victoria, 3752 www.goldair.com.au...
