Summary of Contents for Goldair GTR5B

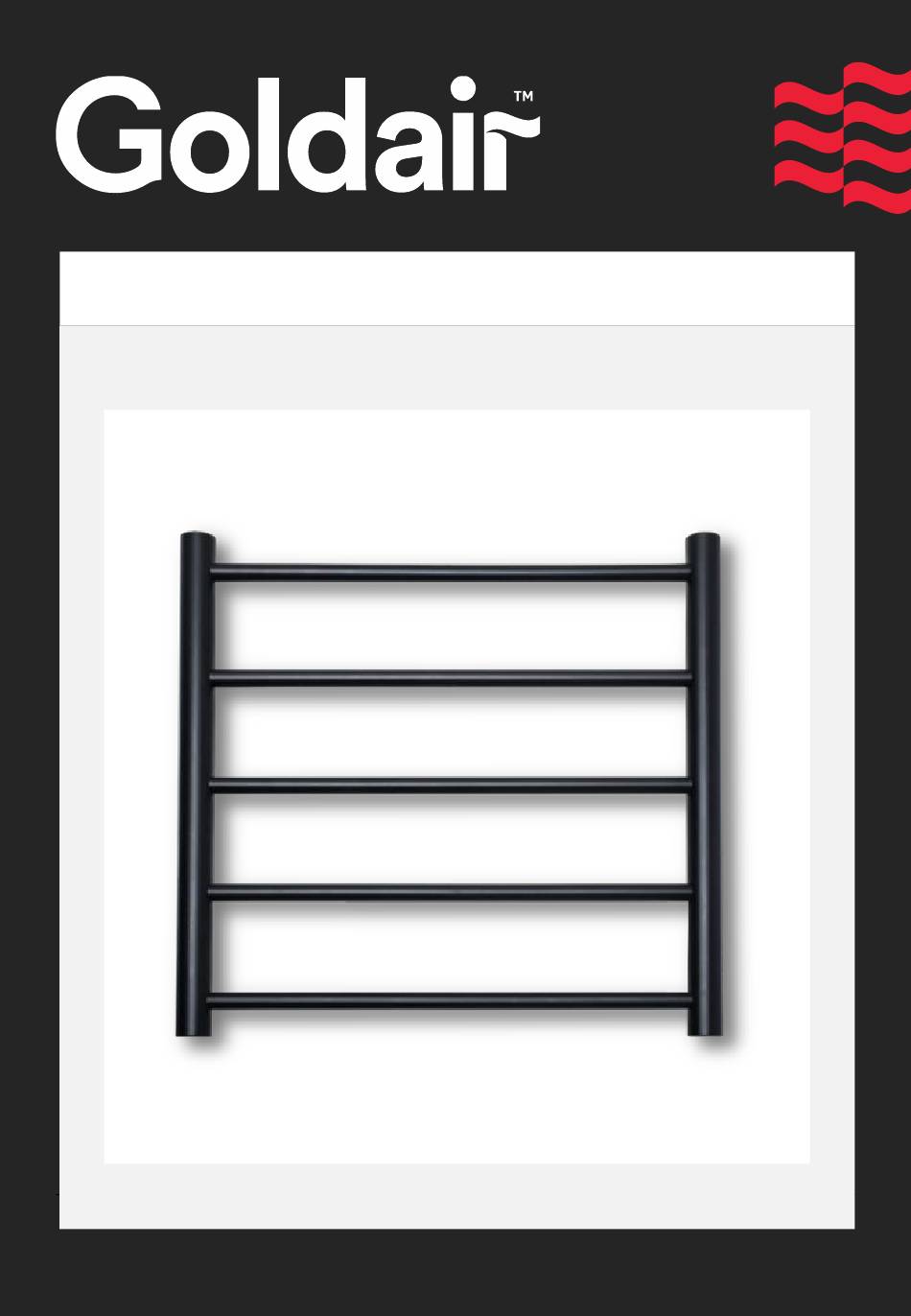

- Page 1 Operating Instructions Goldair Straight Round Towel Warmer Models: GTR5B, GTR7B...
- Page 2 General Care and Safety Guide Thank you for choosing a Goldair Towel Rail. This Goldair Towel Rail has been designed and manufactured to high standards of engineering and with proper use and care, as described in this leaflet, will give you years of useful service. Please read these instructions carefully.
-
Page 3: Specifications
24. If your Towel Rail does not work, or is not working properly, contact the place of purchase or the Goldair Customer Services Team. Repair work on the Towel Rail by unqualified persons can cause serious risk to the user. - Page 4 Dimensions GTR5B GTR7B...
- Page 5 Components 4 x Grub Screws 2 x Upper Legs 2 x Lower Legs 2 x Screws 1 leg has a cut out for for Securing Upper Legs exposed wire install 2 x Screws for Securing 3 x Mounting Bush Lower Legs 4 x Long Screws 1 x Through Wall Bush For mounting to wall...
- Page 6 BUILDING REGULATIONS WALL PREPARATION Goldair Heated Towel Rails may be fixed to any type of timber stud, steel stud or masonry (solid or cavity) wall. Walls made from timber or steel require studs at the correct position for all rails. If the precise position can’t be determined early in the job, consider sheets of 18mm...
-
Page 7: Mounting Instructions
The Ladder Towel Rail should be installed in accordance to local governing AS/NZS regulations. The Goldair Heated Towel Rail can only be mounted 1 way. Your towel rail is mounted by legs with a screw on each of the 4 legs as indicated in Fig1. below. - Page 8 Installing your Towel Rail 1. Feed a leg mounting screw through the middle of the upper leg (upper legs have a welded mounting point inside the leg). There is a locator hole at the base end which this screw should line up with and pass through. 2.
- Page 9 Installing your Towel Rail 8. Drill holes in the marked location to suit the screws provided, If installing into Gib board, Concrete or Block, insert wall plugs into the wall. 9A.If using an exposed cable, insert a long screw through the mounting bush, then fix into wall ensuring the fit is secure –...
- Page 10 PROOF OF PURCHASE To receive warranty, retain receipt as proof of purchase. SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm...
-
Page 11: Two Year Warranty
In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period. - Page 12 New Zealand PO Box 100707, North Shore Mail Centre, Auckland, 0745 www.goldair.co.nz Australia PO Box 574, South Morang, Victoria, 3752 www.goldair.com.au...
