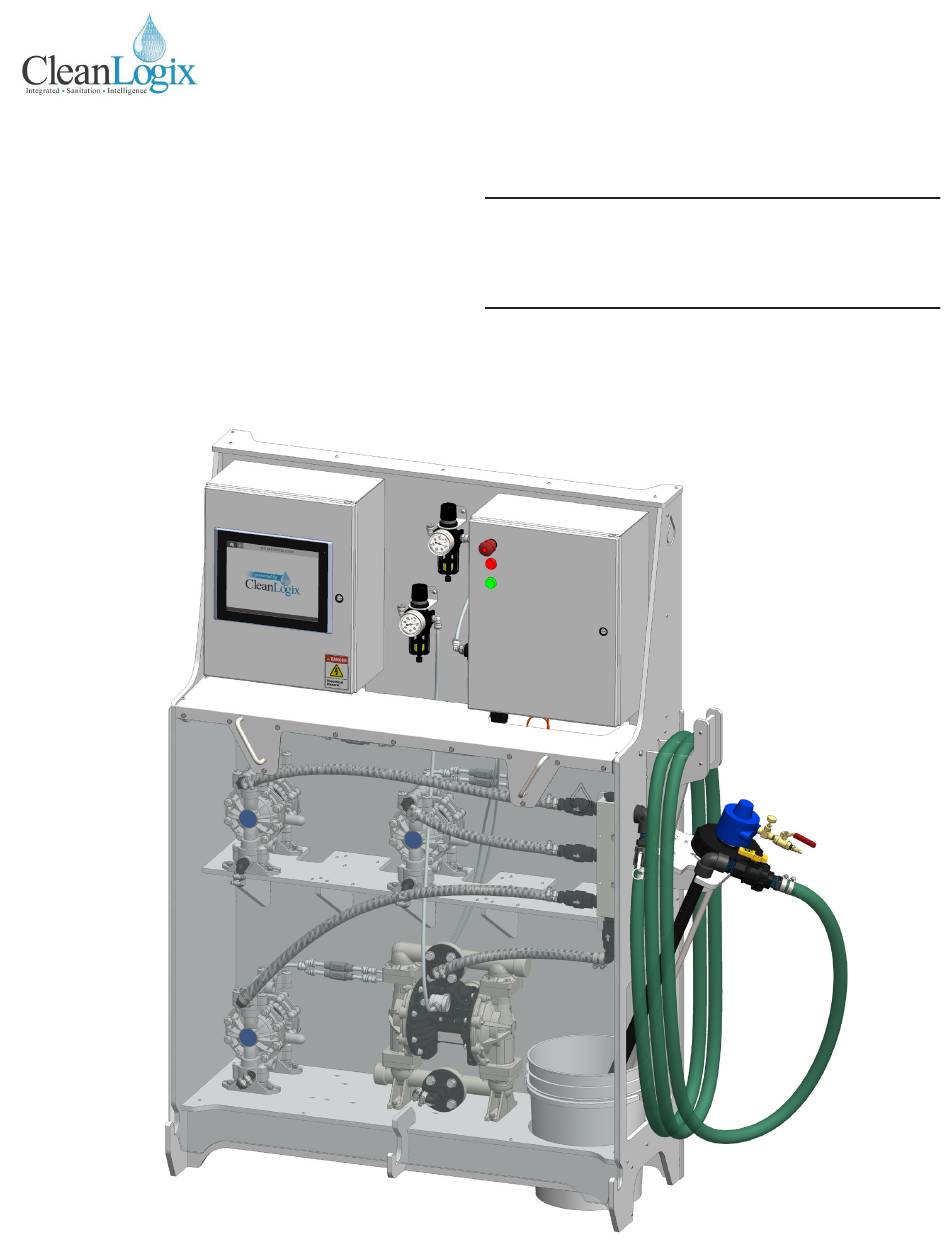

- Page 1 USER MANUAL MODEL NUMBER: EPX-TM Tote Mixer Delivery System English (Original Instructions) Updated: 07/18/2018...
-
Page 2: Table Of Contents
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Table of Contents General Operation Specifications Dispensing a Recipe Requirements Reporting Installation Instructions Advanced Functions Configuration Alarms User Management Troubleshooting Scale Calibration Maintenance Chemical Configuration Appendices Pump Priming... -
Page 3: Specifications
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Specifications Requirements Weigh Scale Resolution: 5000 lb. capacity (2,268 kg) Dimensions: Accuracy, typical, tested with water at 70 degrees F, • Width: 48” (1,219.2 mm) 100kg load cell, with calibrated overshoot: •... -
Page 4: Installation Instructions
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installation Instructions Page 4 of 25 Last Update: 07/18/2018... - Page 5 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Installation Instructions (continued) Install Tower: Set unit in desired location. Ensure the structure is level in all directions and is not twisting or flexing. If possible, it is recommended to attach the tower to a wall or large shelving rack.
-
Page 6: User Management
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT User Management 1. Using the HMI, login to the System using the on- screen keyboard NOTE: Please contact your distributor for administrative login credentials. 2. Navigate to the MAIN MENU 3. -
Page 7: Scale Calibration
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Scale Calibration 1. On the HMI, log in as an administrator. 2. Click the Home icon and navigate to TANK A > TANK A SCALE CALIBRATION [Figure 7.1]. -
Page 8: Chemical Configuration
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Chemical Configuration 1. On the HMI, log in as an administrator. 2. Click the Home icon and navigate to the TANK A > CHEMICAL CONFIGURATION [Figure 8.1]. -
Page 9: Pump Priming
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Pump Priming 1. Ensure air pressure is being supplied to the unit and all of the Installation Steps are completed. 2. On the HMI, log in as an administrator. -
Page 10: Creating Recipes
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Recipes Recipe Structure: A recipe is a sequence of steps to perform a delivery procedure. There are 5 types of Steps: 1. NONE - This is a "blank" step, and will be skipped. - Page 11 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Recipes (continued) Recipe Creation: 1. On the HMI, log in as an administrator. 2. Click the Home icon and navigate to TANK A > RECIPE EDITOR [Figure 11.1].
-
Page 12: Dispensing A Recipe
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Dispensing a Recipe Recipe Queue: 1. On the HMI, log in as a user with privileges to enqueue recipes. 2. Click the Home icon and navigate to TANK A >... - Page 13 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Dispensing a Recipe (continued) Adding a Recipe to the Queue: 1. Return to the OVERVIEW page using the back arrow or clicking RETURN TO OVERVIEW 2. The name of the recipe “on deck” will appear under the word Recipe on the overview page [Figure 13.1].
-
Page 14: Reporting
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Reporting There are a few options for obtaining reports. Review the following options and instructions to access them. USB Download: 1. Open the Control Panel and insert a USB drive into the back of the screen panel [Figure 14.1]. - Page 15 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Reporting (continued) CleanIntel Online Reporting: 1. Using a computer, tablet, or smartphone; open an Internet browser (i.e. Google Chrome, etc.) 2. Go to www.cleanintel.com 3. Enter login credentials [Figure 15.1] Figure 15.1: Clean Intel login screen (using Google Chrome)
-
Page 16: Advanced Functions
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Advanced Functions Manual Control: • Allows manual control of all outputs. • AUTO is the normal state. • OFF means the output is disabled. • MANUAL turns the output on. -
Page 17: Alarms
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Alarms If the system detects a problem, it will stop the process (if running) and display an alarm banner Figure 17.1: Alarm Banner [Figure 17.1] message at the top of the screen. The... -
Page 18: Troubleshooting
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Troubleshooting Estop Pushed Alarm: Rate of Change Alarm: Controller Tags: JugA_ESTOPAlm Controller Tags: JugAROCAlm Criteria: The e-stop button has been pushed Criteria: While the tank is filling or emptying (chemical... -
Page 19: Maintenance
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Troubleshooting Maintenance Instructions Low Air Pressure Alarm (continued): Weekly: Controller Tags: • Check for leaks JugA_LowAirPressureAlm Criteria: The air pressure switch opened while the system • Check for corrosion... -
Page 20: Parts Callout
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix A - Parts Callout Page 20 of 25 Last Update: 07/18/2018... - Page 21 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix A - Parts Callout Page 21 of 25 Last Update: 07/18/2018...
- Page 22 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix A - Parts Callout Page 22 of 25 Last Update: 07/18/2018...
- Page 23 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix A - Parts Callout Part No. Description Part No. Description F1030 BOLT HHC 1/4-20 X 2-3/4 SS P1414 PIPE ADAPTER HOSE BARB 3/4 X 3/4 PP...
- Page 24 USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix A - Parts Callout Part No. Description Part No. Description F1172 SCREW THEAD FORMING 10-32 X 1/2 HEX WASHER HEAD ZINC P1468 CABLE RJ45 30ft BLACK...
-
Page 25: Electrical Schematic
USER MANUAL: Tote Mixer Delivery System (EPX-TM) READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT Appendix B - Electrical Schematic Page 25 of 25 Last Update: 07/18/2018...
