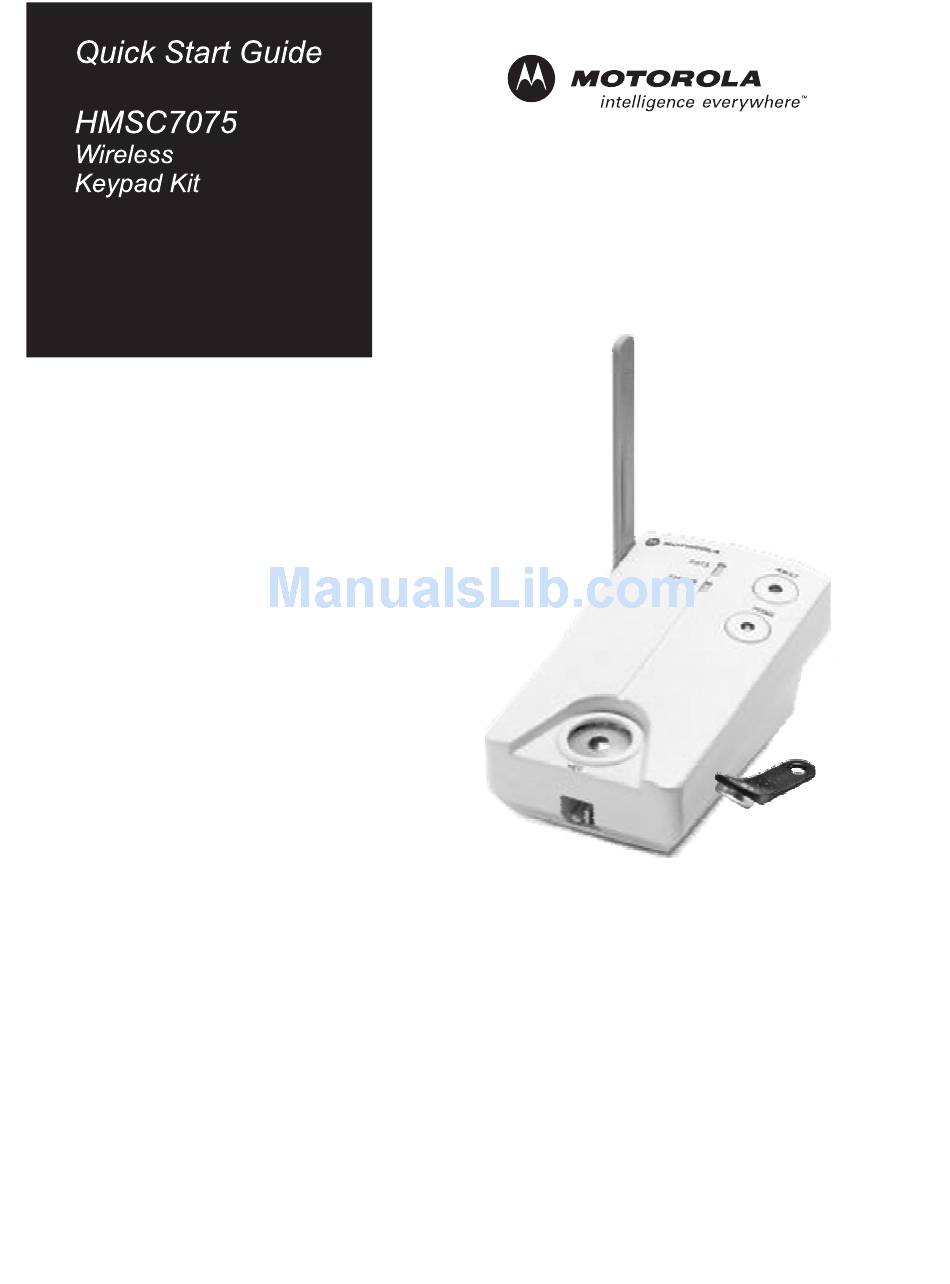

Motorola HMSC7075 Quick Start Manual

Wireless keypad kit
Hide thumbs




  Also See for Motorola HMSC7075

  Related Manuals for Motorola HMSC7075

  Summary of Contents for Motorola HMSC7075

  • Page 2: How It Works

    Congratulations on your purchase of the Motorola Wireless Keypad Kit. This module enables you to arm or disarm your entire Motorola homesight™ system at once upon entry or exit of your home. Its security design ensures that only a registered Keypad Key can set the...
  • Page 3: Feature Locator

    After a few seconds, the System Controller will a details of the device will appear on the screen. Touch your Keypad Key(s) to the Kepypad port and click on Settings/Key Management in the Motorola homesight™ software to see that the key has been registered.
  • Page 4: Installation Hints

    Installation Hints Please consider the following points when mounting the module: • The Motorola Wireless Keypad module is constructed of UV-resistant ABS plastic. Do not install the module where it is subjected directly to the weather elements. • This device’s communication range is up to 60 feet (18 m) from the Wireless System Controller in a typical home, depending on the number of obstacles.
  • Page 5 Wall Mount Drilling Template Mounting tools: Screwdriver, electric drill, or awl. On hard surfaces, Motorola recommends that you pre-drill ½-inch deep pilot holes with a drill bit slightly smaller than the module mounting screws before securing the module to the surface.
  • Page 6: Features And Specifications

    Features and Specifications • Wireless connectivity to the System Controller • Status LED in module illuminates when activity occurs • Home and Away LEDs light when either is activated • Hardware and base provided for either wall or table mounting •...
  • Page 7: Troubleshooting

    Troubleshooting Problem Solution • Keypad module will not Ensure that the keypad module's AC adapter is plugged in or has fresh register with the batteries. Wireless System • Ensure that the Wireless System Controller is powered and online. Controller • Ensure that you are pressing the Discovery button.
  • Page 8: Regulatory Information

    In order to use these products, you need broadband service. Motorola cannot guarantee the availability, reliability or performance, such as speed, of the broadband service you use, which may be affected by, among other things, (i) network traffic, (ii) other services offered by your broadband service provider, (iii) the performance of your computer equipment, (iv) the performance of your service provider's network, and (v) the availability of Internet router(s).
  • Page 9: Limited Warranty

    (ii) the Software will perform materially as described in its documentation. This Limited Warranty to you, the original end user customer, continues (A) for Software and the media upon which it is provided, for a period of ninety (90) days from the date of purchase from Motorola or an authorised Motorola reseller, and (B) for the Product (excluding Software), for a period of one (1) year from the date of purchase from Motorola or from an authorized reseller.
  • Page 10 Motorola, Inc. Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to provide notification of such revision or change. MOTOROLA PROVIDES THIS GUIDE WITHOUT WARRANTY OF ANY KIND EITHER IMPLIED OR EXPRESS, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
