Summary of Contents for tams elektronik RCA-1

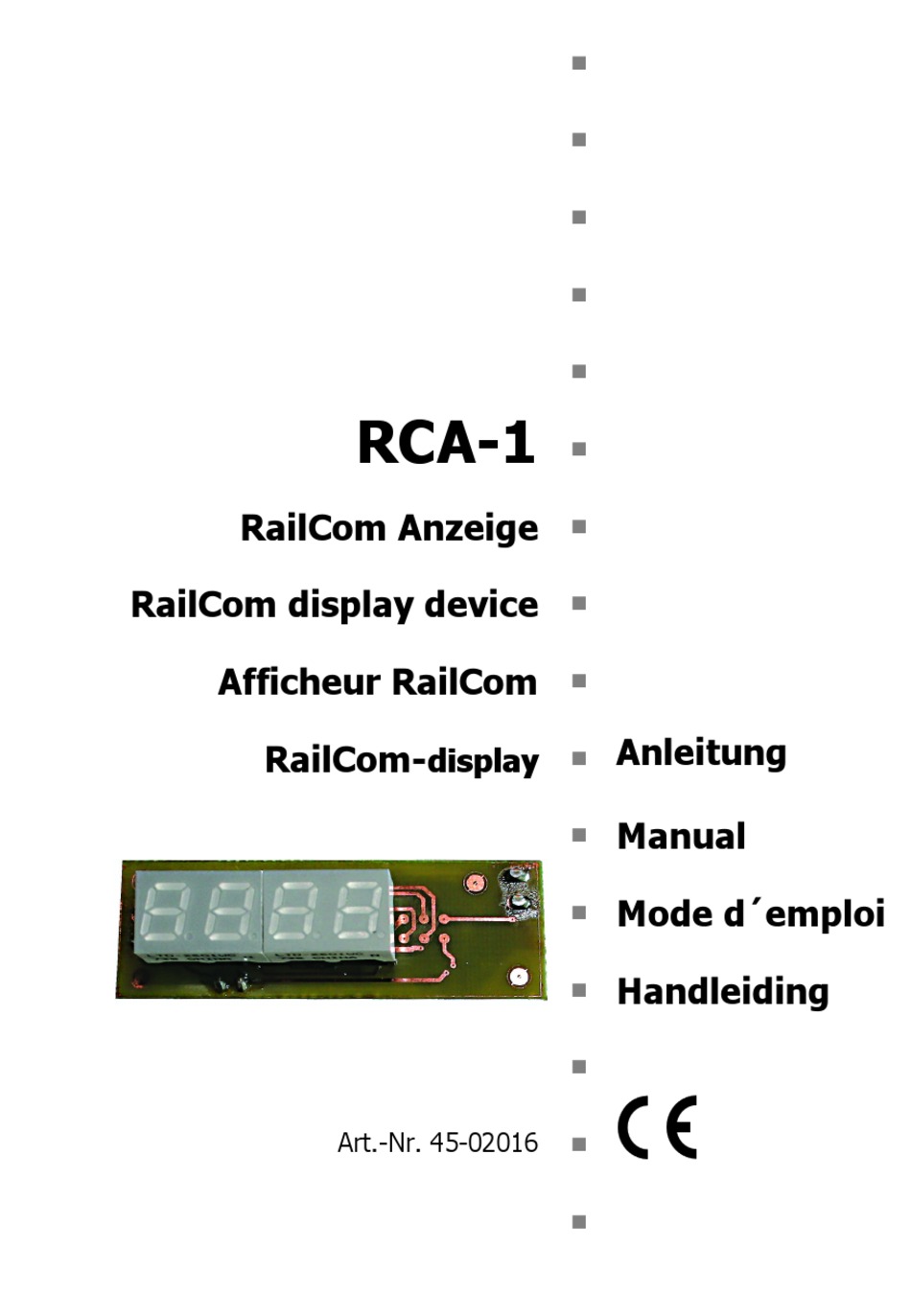

- Page 1 RCA-1 RailCom Anzeige RailCom display device Afficheur RailCom Anleitung RailCom- display Manual Mode d´emploi Handleiding Art.-Nr. 45-02016...
- Page 2 © 09/2008 Tams Elektronik GmbH Alle Rechte, insbesondere das Recht der Vervielfältigung und Verbreitung sowie der Übersetzung vorbehalten. Vervielfältigungen und Reproduktionen jeglicher Form bedürfen schriftlichen Genehmigung durch die Tams Elektronik GmbH. Deutsch Technische Änderungen vorbehalten. English © 09/2008 Tams Elektronik GmbH All rights reserved.
-
Page 3: Table Of Contents
English RCA-1 Table of contents Getting started Operation overview Technical specifications Connecting the RCA-1 Programming Operation Check list for troubleshooting CE and Warranty ® Remark: RailCom is the registered trademark of the Lenz Elektronik GmbH, Hüttenbergstraße 29, D-35398 Gießen. To increase the text´s readabiliy we have refrained from refering to this point in each instance. -
Page 4: Getting Started
> 0,25 mm² for all other connections. Saftey instructions The display device RCA-1 can be used in digital model railways in concordance with these instructions to display RailCom messages, read out by a local RailCom detector. It is not suitable for use by children under 14. -
Page 5: Operation Overview
RailCom cutout, have to be used. Mode of operation The RailCom display device RCA-1 has to be connected to a local RailCom detector (e.g. RCD-1) supervising a seperated rail section. The detector reads out the address and the CV values of a vehicle decoder in the rail section. -
Page 6: Connecting The Rca-1
When connecting the RCA-1 make sure to connect pin A of the display device to pin A of the detector and pin B to pin B. -
Page 7: Programming
With the RCA-1 you program the display device´s address as well as the accessory detector´s address. Programming the RCA-1 In order to program the address of the RCA-1 take the following steps: § Before connecting the RCA-1 to the power supply shunt the two pins of the programming connection JP1. - Page 8 1 and put the accesory detector into the programming mode. § Restore the connections to the power supply, firstly to the detector and afterwards to RCA-1. Be sure that only the detector to be assigned a new address is connected to the RCA-1 / the power supply.
-
Page 9: Operation
English RCA-1 6. Operation In the display, the data the detector is reading out is shown. As a rule no leading zeros are displayed. In case the display shows a number beginning with zero, an address between 10000 and 10239 is read out. -
Page 10: Ce And Warranty
Possible cause: The connection A of the RCA-1 is connected to the connection B of the detector (or the other way round). à Exchange the connections A and B on one of the devices. - Page 11 English RCA-1 Conditions of warranty This product is guaranteed for two years. The warranty includes the correction of faults which can be proved to be due to material failure or factory flaw. We guarantee the function of the parts according to the...
- Page 12 Actuele informatie en tips: http://www.tams-online.de Garantie und Service: Warranty and service: Garantie et service: Garantie en service: Tams Elektronik GmbH Rupsteinstraße 10 D-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
