N778-C Instrument User Interface - Keysight Technologies N778-C Series User Manual

4 User Interface Reference

N778-C Instrument User Interface

54

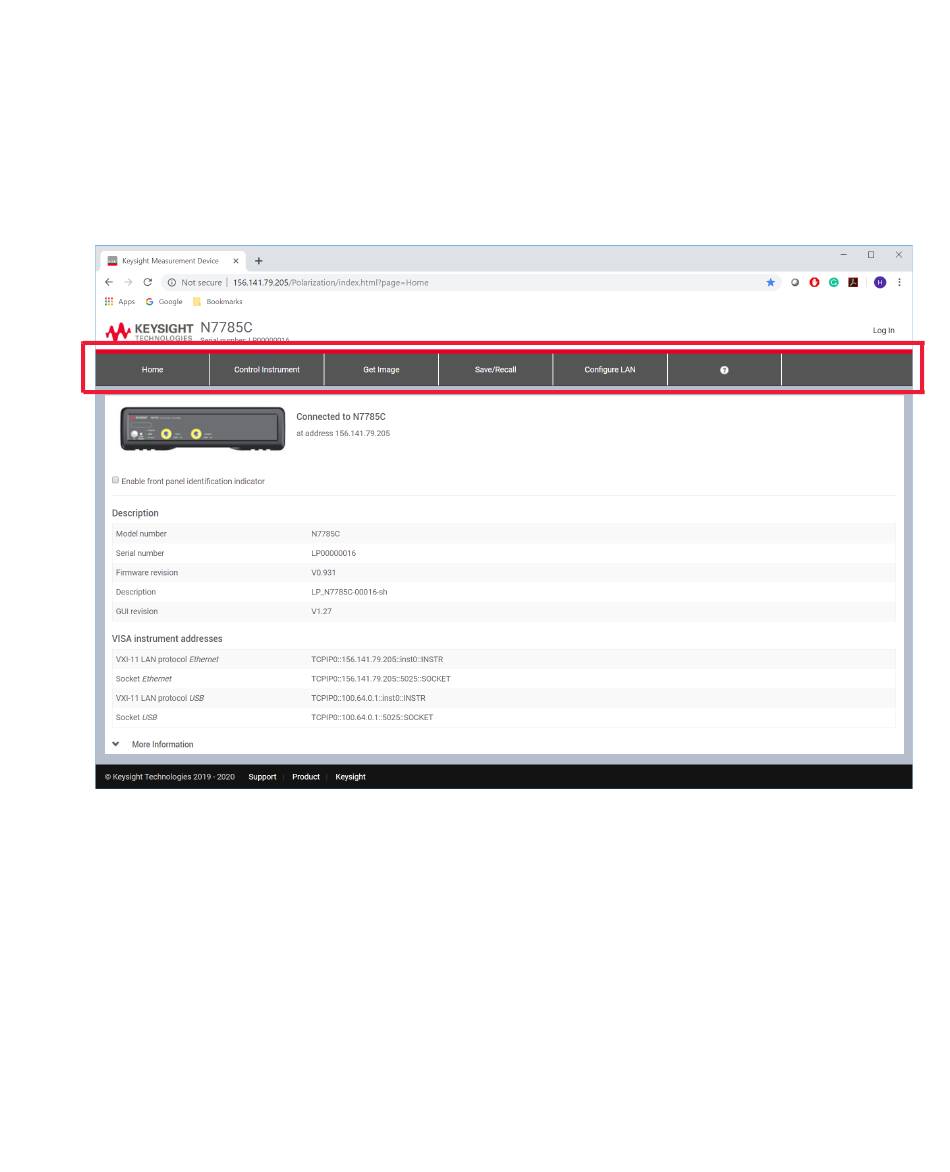

Figure 16 shows the N7785C user interface with various tabs highlighted.
The below figure is also valid for N7781/86/88C polarization instruments.
Figure 16

N778-C Instrument User Interface

The N778-C series user interface has various tabs that help the user to
control the N7781/85/86/88C instruments:
• Home – This tab displays the various instrument settings. For details,
refer How to Get Current Instrument Settings?
• Control Instrument – This tab allows you to set the parameters to
control the instrument. For details, refer to the sections in this chapter
that follows.
• Get Image – This tab allows you to capture a screen of the Control
Instrument window. The image is saved in PNG format in your PC. For
details, refer How to Capture an Image?
Keysight N778-C Series Polarization Instruments User's Guide
on page 67.
on page 68.
