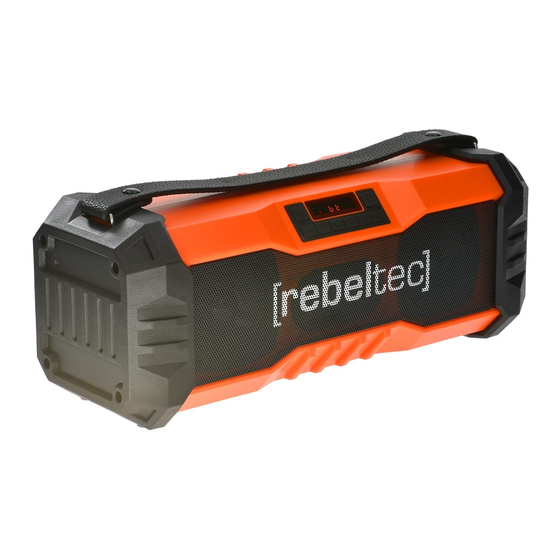

REBELTEC SoundBox 350 User Manual


Bluetooth version 4.2

Internal Li-on Battery (2000mAh),It can play about 5-8 hours after full charged.

Bluetooth - Wireless transfer and play music by Bluetooth function.

Support TF card or USB flash memory to play music (mp3 format).

Line-in function, connect your mobile to play music (3,5mm mini jack plug in).

FM function – listen your favorite FM station.
ON/OFF Power switch.
DC 5V Micro USB socket, charge Li-Ion battery.
USB / TF card Insert USB or micro SD card, it will play music automattically.
AUX Put 3,5mm mini jack to play sound from another device.
M Press to switch bluetooth / USB / MicroSD card / FM / Aux.
+ Volume up (V00-V15). Works in all mode.
- Volume down (V00-V15). Works in all mode.
EQ Sound effect mode (clas/jazz/pop/nor).
Press MODE button to choose Bluetooth mode. It will show "bt" on display. Searching the Bluetooth device on your cell phone or laptop
after speaker turn on. If the Bluetooth speaker connected success, the speaker will confirm it. If the Bluetooth is not in the match state,
please reboot the speaker.
Short press to choose previous or next song.
short press to pause, press again to play. If there is coming call it can answer call, press long to call last contact.
Press long to disconnect Bluetooth.
M
press 5 seconds and the screen show ON or OFF. It can off/on the warning tone for mode switch.
Insert USB or micro SD card, it will play music automattically.
Short press to choose previous or next song.
short press to pause, press again to play.
Press to switch mode: all song repeat(ALL), one song repeat(ONE), random song(rANd).
Press long to auto scanning from 87,5MHz to 107MHz, then scanned channels will be saved from CH01-CH50. Saved channels can
be changed by and
channels switching.
Press to mute.
When battery symbol
side panel. After fully charged symbol
high humidity and temperature for long time. Please avoid the water. If you do not use the speaker, turn off the speaker. Warranty for
battery is only 6 months.
Bluetooth speaker Rebeltec SoundBox 350

MP3 (TFcard / USB) mode

buttons. To manual choose frequency press
is flashing charge battery immediately. When charging it
is lighting. Please use DC 5V/1A Adapter to charging this product. Please don't use it under

Specification

User manual

Bluetooth mode

FM mode

AUX mode

Charging battery

.
, then and Press again
is long light and red LED is lighting in back
to back to
