REBELTEC SoundTUBE 190 Quick Start Manual


Bluetooth version 4,2

Internal Li-on Battery (1500mAh),It can play about 7 -8 hours after full charged.

Bluetooth - Wireless transfer and play music by Bluetooth function.

Support TF card or USB flash memory to play music

Line-in function, connect your mobile to play music (3,5mm mini jack plug in).

Microphone port 6,3mm (mono). Work with Bluetooth, TFcard, USB, line-in (AUX) mode.

FM function – listen your favorite FM station.
ON/OFF power switch knob
DC 5V micro USB socket, charge Li-Ion battery.
USB / TF card Insert USB or micro SD card, it will play music automattically.
AUX put 3,5mm mini jack to play sound from another device.
M press to switch bluetooth / USB / MicroSD card / FM / Aux. Press long to TURN ON/OFF light.
MIC connect your microphione 6,3mm mono JACK.
VOL increase/decrease volume. Works in all mode.
BASS increase/decrease bass. Works in all mode.
Press M button to choose Bluetooth mode. It will show "BLUE" on display. Searching the Bluetooth device on your cell phone or laptop
after speaker turn on. If the Bluetooth speaker connected success, the speaker will confirm it. If the Bluetooth is not in the match state,
please reboot the speaker.
or Short press to choose previous or next song.
short press to pause, press again to play.
Insert USB or micro SD card, it will play music automattically.
or short press to choose previous or next song.
short press to pause, press again to play.
Press to auto scanning from 87,5MHz to 107MHz, then scanned channels will be saved. Saved channels can be changed by
buttons.
NOTE: connected the cable into AUX Port can received the FM radio clearly. Because it is the same function as antenna.
Press mode to choose AUX LINE IN (AUX).It will show "LINE" on display.
Press to mute.
Please use DC 5V/1A Adapter to charging this product. Please don't use it under high humidity and temperature for long time. Please
avoid the water. If you do not use the speaker, turn off the speaker. Warranty for battery is only 6 months

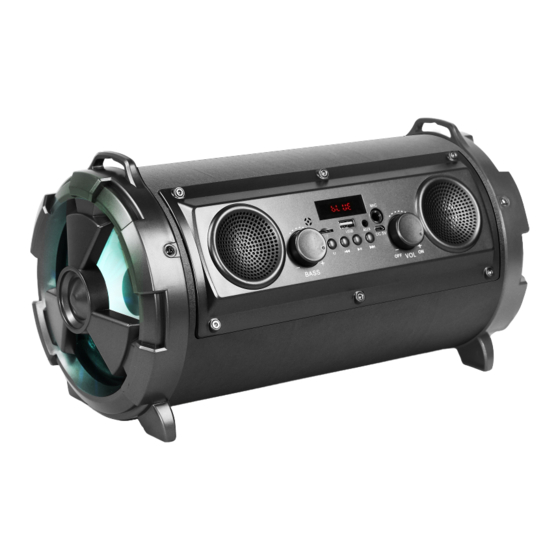

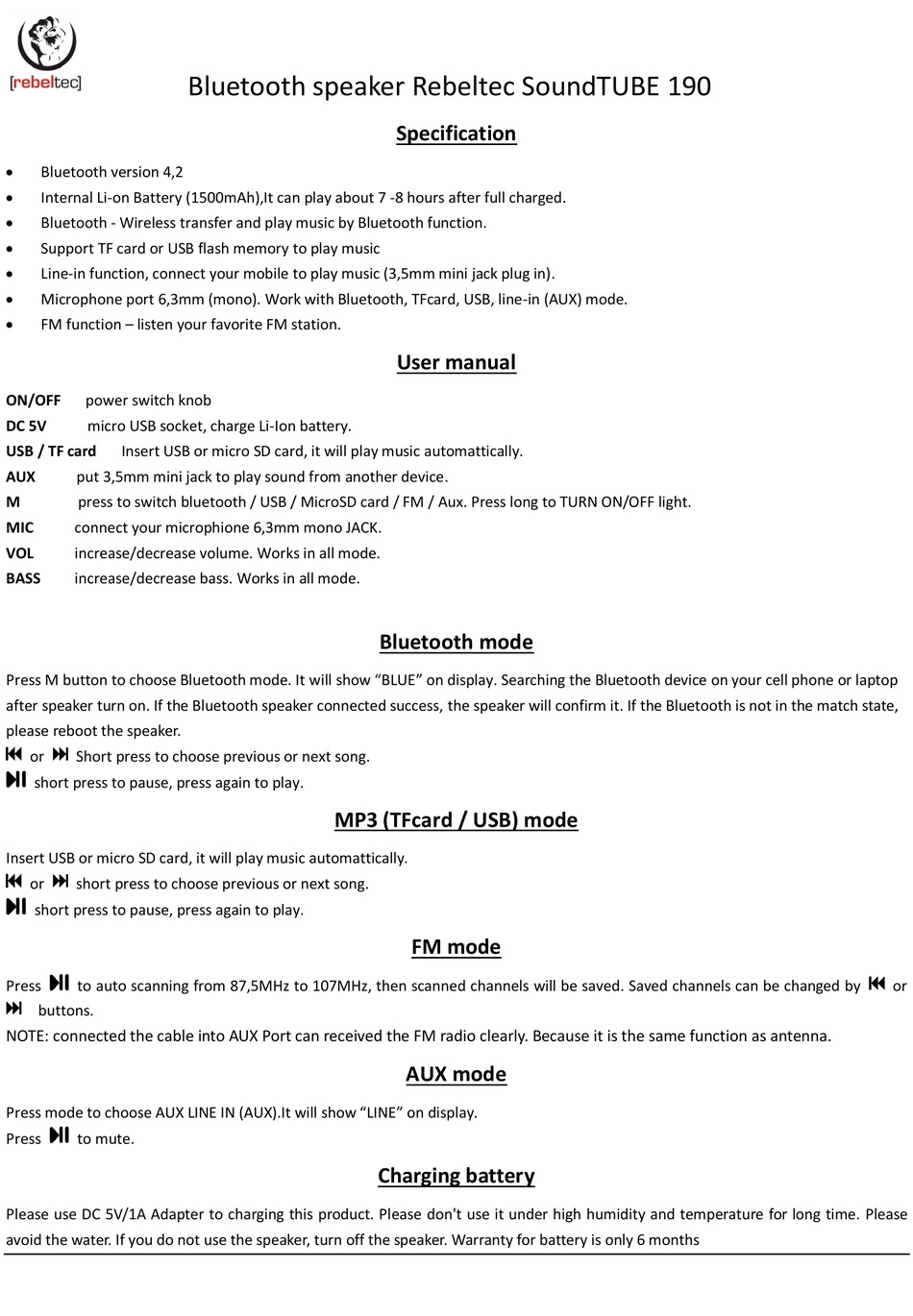

Bluetooth speaker Rebeltec SoundTUBE 190

MP3 (TFcard / USB) mode

Specification

User manual

Bluetooth mode

FM mode

AUX mode

Charging battery

or
