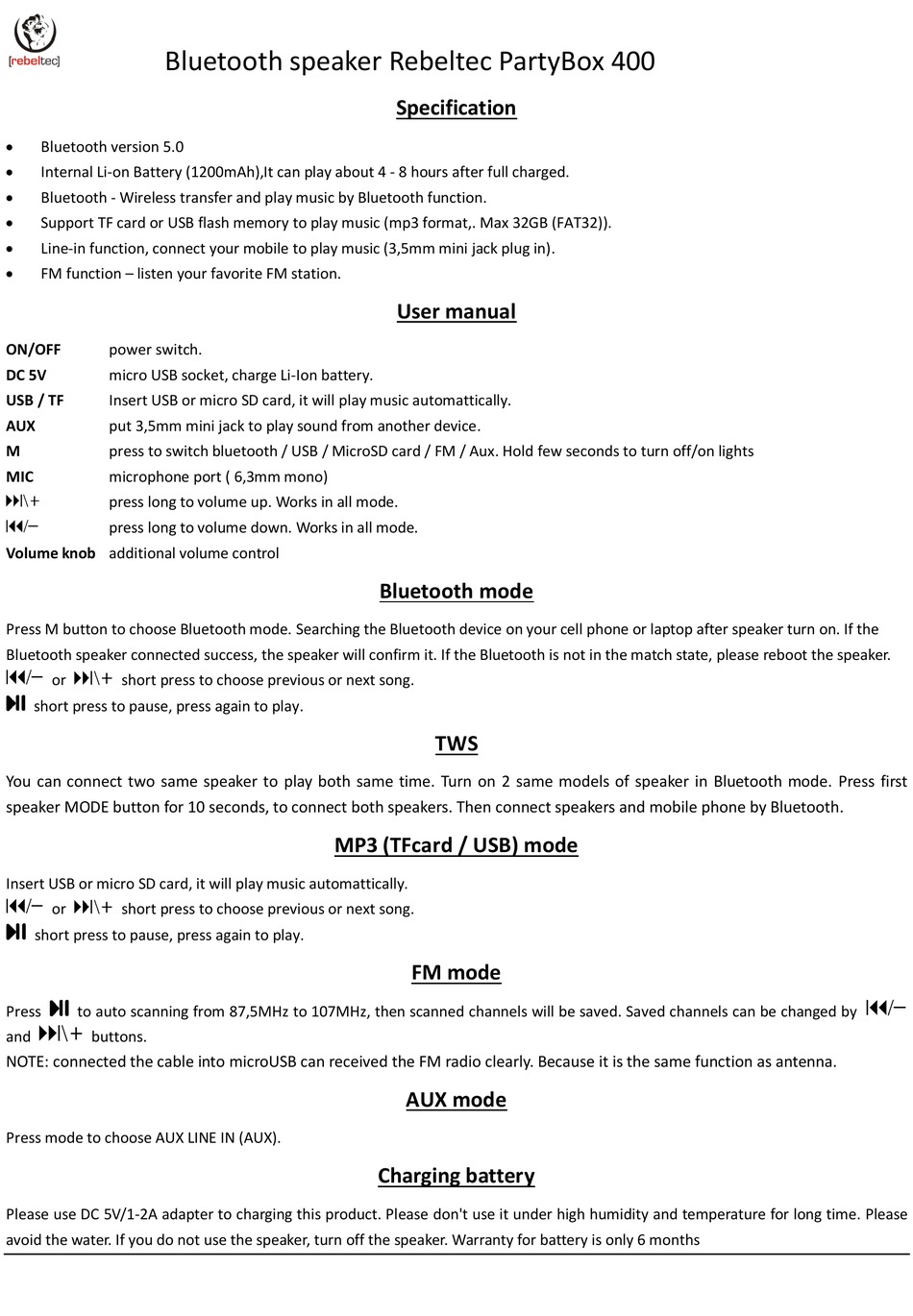

REBELTEC PartyBox 400 Quick Start Manual

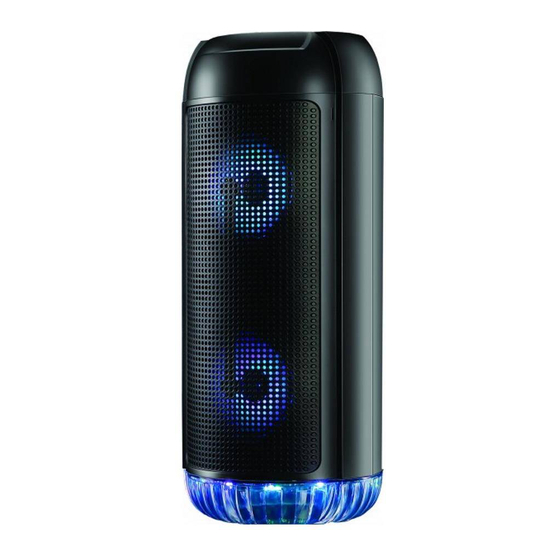

Bluetooth speaker Rebeltec PartyBox 400

Bluetooth version 5.0

Internal Li-on Battery (1200mAh),It can play about 4 - 8 hours after full charged.

Bluetooth - Wireless transfer and play music by Bluetooth function.

Support TF card or USB flash memory to play music (mp3 format,. Max 32GB (FAT32)).

Line-in function, connect your mobile to play music (3,5mm mini jack plug in).

FM function – listen your favorite FM station.
ON/OFF power switch.
DC 5V micro USB socket, charge Li-Ion battery.
USB / TF Insert USB or micro SD card, it will play music automattically.
AUX put 3,5mm mini jack to play sound from another device.
M press to switch bluetooth / USB / MicroSD card / FM / Aux. Hold few seconds to turn off/on lights
MIC microphone port ( 6,3mm mono)
press long to volume up. Works in all mode.
press long to volume down. Works in all mode.
Volume knob additional volume control
Press M button to choose Bluetooth mode. Searching the Bluetooth device on your cell phone or laptop after speaker turn on. If the
Bluetooth speaker connected success, the speaker will confirm it. If the Bluetooth is not in the match state, please reboot the speaker.
or short press to choose previous or next song.
short press to pause, press again to play.
You can connect two same speaker to play both same time. Turn on 2 same models of speaker in Bluetooth mode. Press first
speaker MODE button for 10 seconds, to connect both speakers. Then connect speakers and mobile phone by Bluetooth.
Insert USB or micro SD card, it will play music automattically.
or short press to choose previous or next song.
short press to pause, press again to play.
Press to auto scanning from 87,5MHz to 107MHz, then scanned channels will be saved. Saved channels can be changed by
and buttons.
NOTE: connected the cable into microUSB can received the FM radio clearly. Because it is the same function as antenna.
Press mode to choose AUX LINE IN (AUX).
Please use DC 5V/1-2A adapter to charging this product. Please don't use it under high humidity and temperature for long time. Please
avoid the water. If you do not use the speaker, turn off the speaker. Warranty for battery is only 6 months

Specification

User manual

Bluetooth mode

TWS

MP3 (TFcard / USB) mode

FM mode

AUX mode

Charging battery
