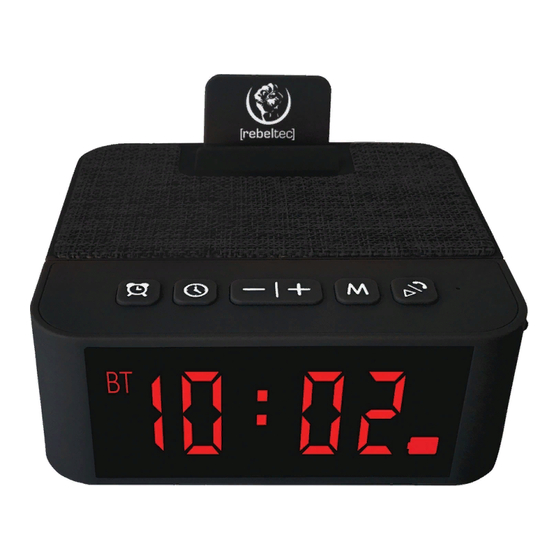

REBELTEC SoundClock 120 User Manual


Bluetooth version 4,2

Internal Li-on Battery (1200mAh),It can play about 7-8 hours after full charged.

Bluetooth - Wireless transfer and play music by Bluetooth function.

Support TF card or USB flash memory to play music (mp3 format).

Line-in (AUX) function, connect your mobile to play music (3,5mm mini jack plug in).

FM function – listen your favorite FM station.

Digital clock and alarm
ON/OFF Power switch of speaker
DC 5V micro USB socket, charge Li-Ion battery.
USB / TF Insert USB or micro SD card, it will play music automattically.
AUX put 3,5mm mini jack to play sound from another device.
M press to switch bluetooth / USB / MicroSD card / FM / Aux.
+ press long to volume up. Works in all mode (except clock)
- press long to volume down. Works in all mode (except clock)
Press M button to choose Bluetooth mode. Searching the Bluetooth device on your cell phone or laptop after speaker turn on. If the
Bluetooth speaker connected success, the speaker will confirm it. If the Bluetooth is not in the match state, please reboot the speaker.
- or + short press to choose previous or next song.
short press to pause, press again to play.
Insert USB or micro SD card, it will play music automattically.
- or + short press to choose previous or next song.
short press to pause, press again to play.
Press and hold to auto scanning stations. Scanned channels will be saved. Saved channels can be changed by - and + buttons.
NOTE: connected the USB cable into microUSB ort can received the FM radio clearly. Because it is the same function as antenna.
Connect music source by 3,5mm mini jack cable to speaker. Press M to choose AUX LINE IN (AUX).
Clock time &alarm is visible when speaker is ON or device is charging (connected by microUSB cable).
Set clock: press clock button, then hour clock is flashing, then press – or+ to set hour time. To set minutes press clock button again, then
minutes clock is flashing, then press – or + to set minutes clock. Press clock button to complete the setting.
Alarm set: press alarm button button, then hour clock is flashing, then press – or+ to set hour time. To set minutes press alarm button
again, then minutes clock is flashing, then press – or + to set minutes clock. Press alarm button to complete the setting.
Please use DC 5V/1A Adapter to charging this product. Pls don't use it under high humidity and temperature for long time. Please avoid
the water. If you do not use the speaker, turn off the speaker. Warranty for battery is only 6 months

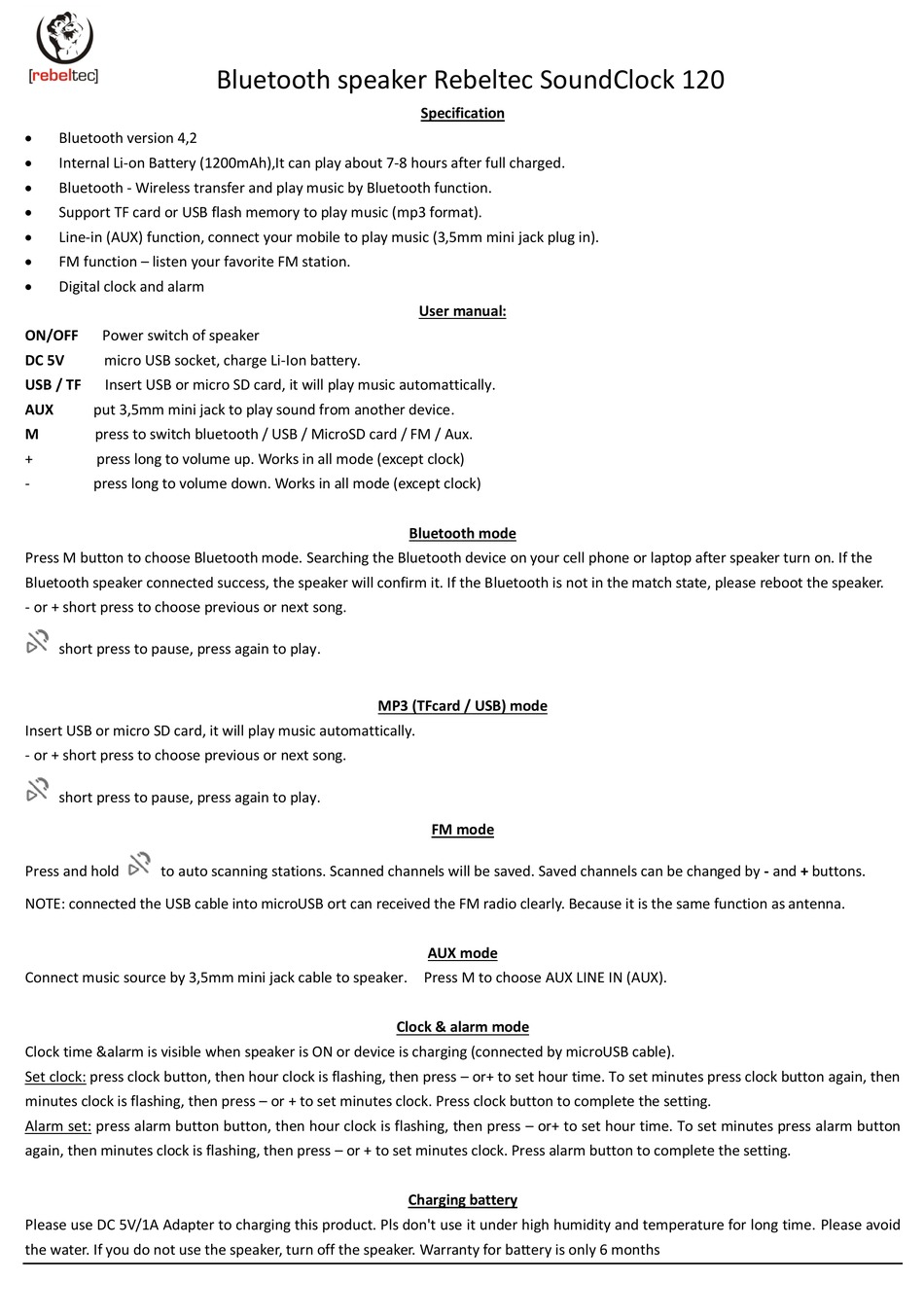

Bluetooth speaker Rebeltec SoundClock 120

MP3 (TFcard / USB) mode

Specification

User manual:

Bluetooth mode

FM mode

AUX mode

Clock & alarm mode

Charging battery
