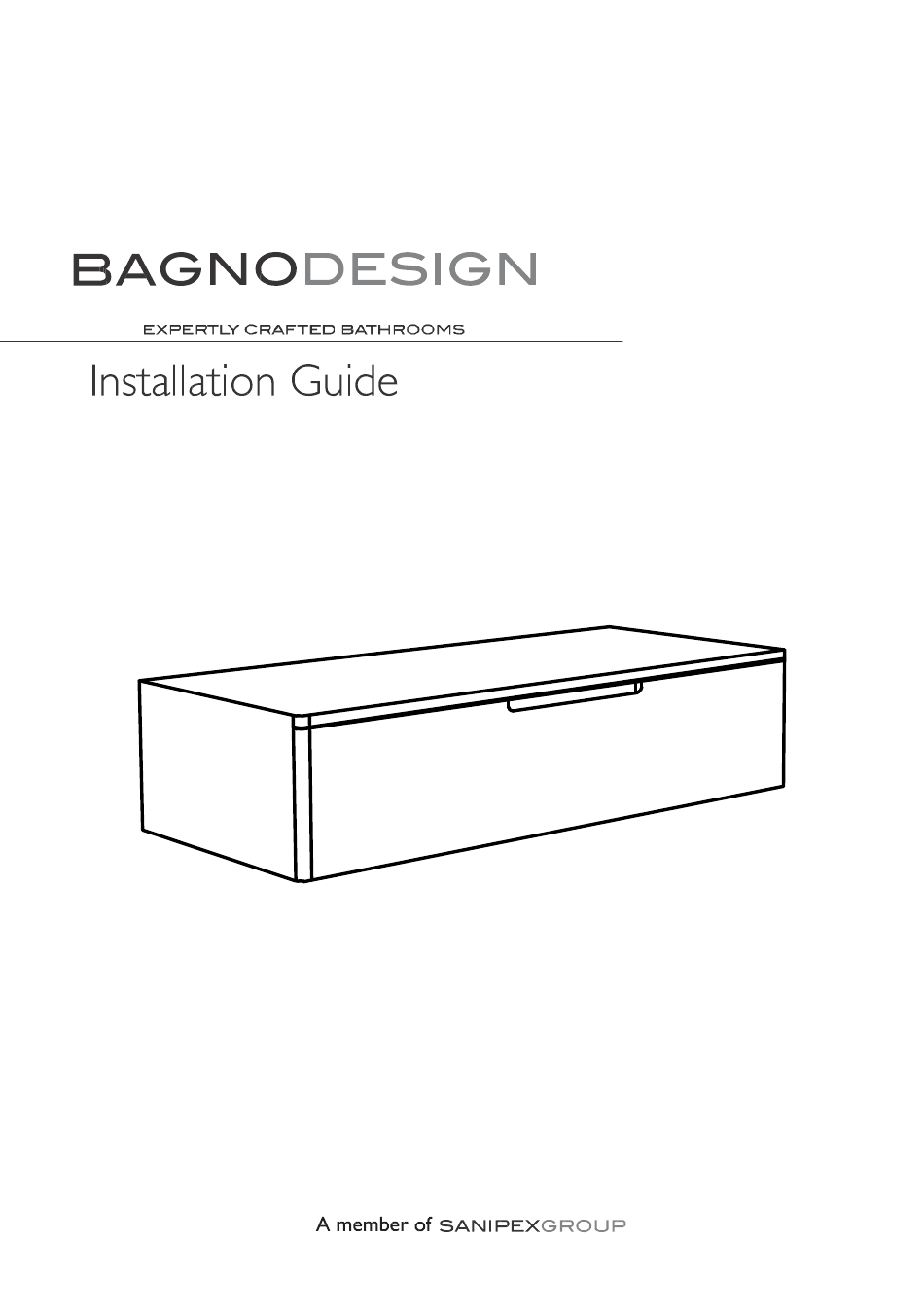

- Page 1 BDF-HOK-V120-TK HOKKAIDO WALL MOUNTED DOUBLE DRAWER VANITY UNIT 1150X450X450MM www.sanipexgroup.com...
- Page 3 IMPORTANT PLEASE READ All products manufactured and supplied by BAGNODESIGN are fit for purpose as long as they are Installed, used correctly, cleaned and receive regular maintenance in accordance with these instructions ... Remove all packaging and check the product for damage or missing parts before commencing with the installation.
- Page 4 HANGING CABINET • Please read all instructions before beginning assembly • Place all parts on a carpet or foam in shipping box. Find the letter (A,B,C,...) on each part and check with below part list to ensure we have all components. •...
- Page 5 81 cm 99 cm BACK VIEW Assembly Instructions : 1. Lay Cabinet onto clean smooth surface (carpet or cardboard 2. Drill the wall following distance X (99 cm). Insert the small wall plugs (c wall wall 3. Fix Metal Support (aa) to the wall. Secured by small fischer screw (bb). Tighten using wrench (not included) 4.
- Page 6 5. . Hang cabinet (A) to the metal support on the wall (aa) 6. . Fix big fischer screw (dd) to the wall from back of inside cabinet (A) make sure it fits the wall as per distance Y wall FISCHER SCREW 7.
- Page 7 Note:...
- Page 8 www.sanipexgroup.com INF-HOK-V120-TK-09-22...
