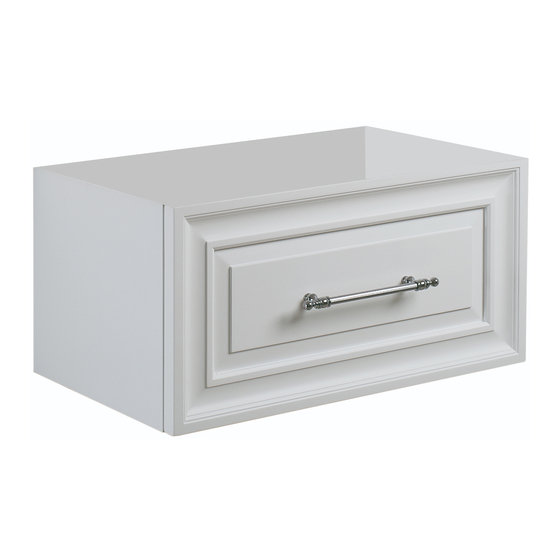

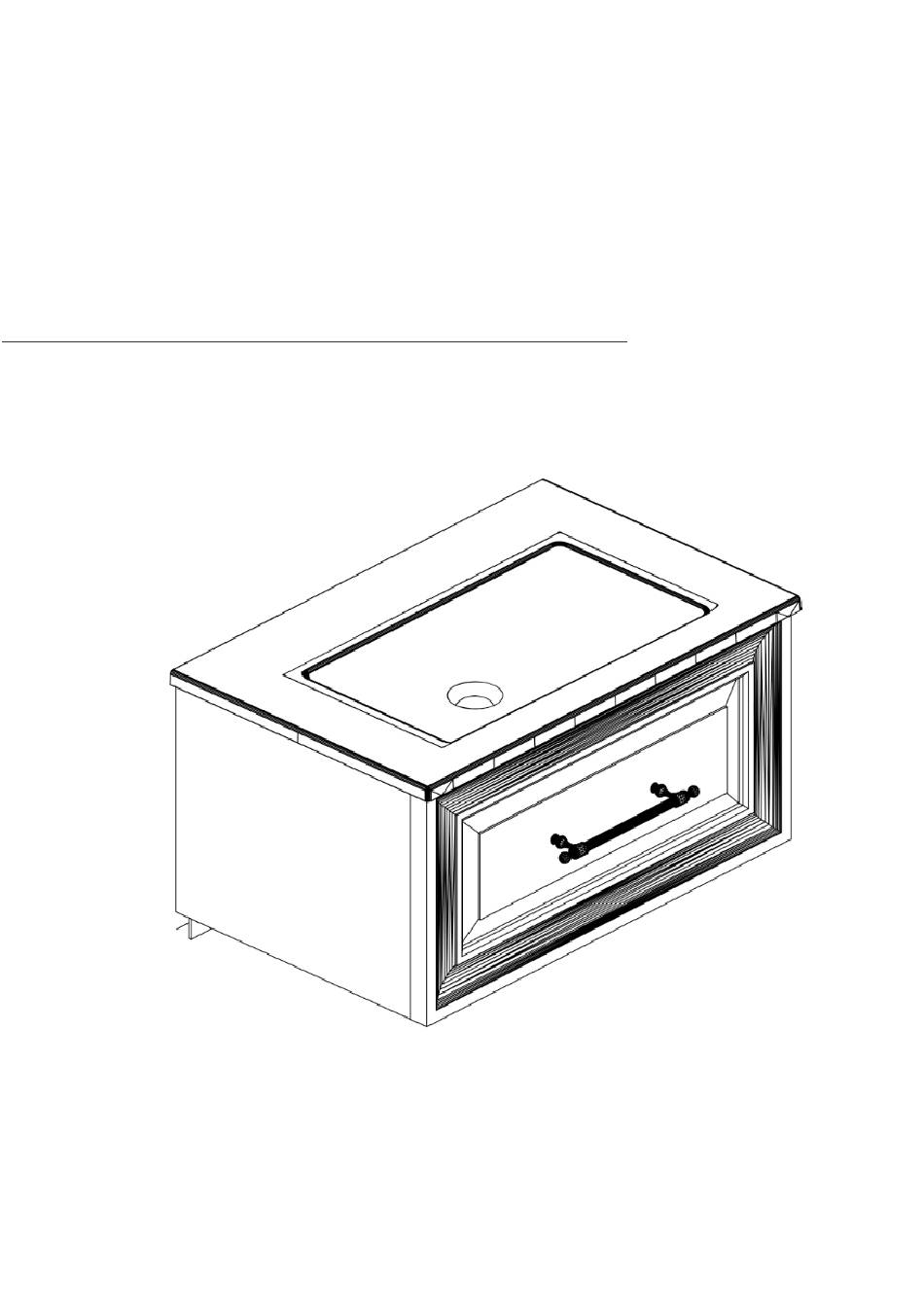

- Page 1 BAGNODESIGN EXPERTLY CRAFTED BATHROOMS General Installation Guide BIARRITZ WALL MOUNTED VANITY BASIN UNIT NOTE: Wash basin not included, it is only used for illustrative purposes. A member of SANIPEXGROUP Please leave these instructions with the customer...
- Page 3 TOOLS REQUIRED (Not supplied) � SealantGun CD ! � 1 r-----: o �, � �0�1 Spirit Level (_,J � Tape Measure Drill and dril I bits Required when securing the cabinet to a wall. Use an appropriate size bit to match the wall fixing chosen (wall screws and fixings not supplied).
- Page 4 Once you have decided on a suitable position for your vanity unit, measure 850-900 from finished floor level, mark out the drilling positions on the wall. Then measure the distance between the fixing holes to the bottom of the vanity. Use this measurement to draw a horizontal line across to fix the support bracket.
- Page 5 Fix the support bar on the wall Gently lift the cabinet into position and place on the support bracket. Make sure that the cabinet is securely held in place before letting go. When you are happy with the position of the cabinet, using wall fixings , fix the cabinet through the angle brackets at the rear of the unit, and then secure the vanity to the support bar fixing screws from the bottom vanity.
- Page 6 Put the drawer back into the unit. Fully extend the drawer runners and lower the drawer onto the runner pushing it closed, the drawer will click into place. Then fix the handles (Not included). Install basin as per the basin installation, to finish please a bead of silicon around the top perimeter of the basin.
- Page 7 Note:...
- Page 8 INF-BIA-VANITY-02-21...
