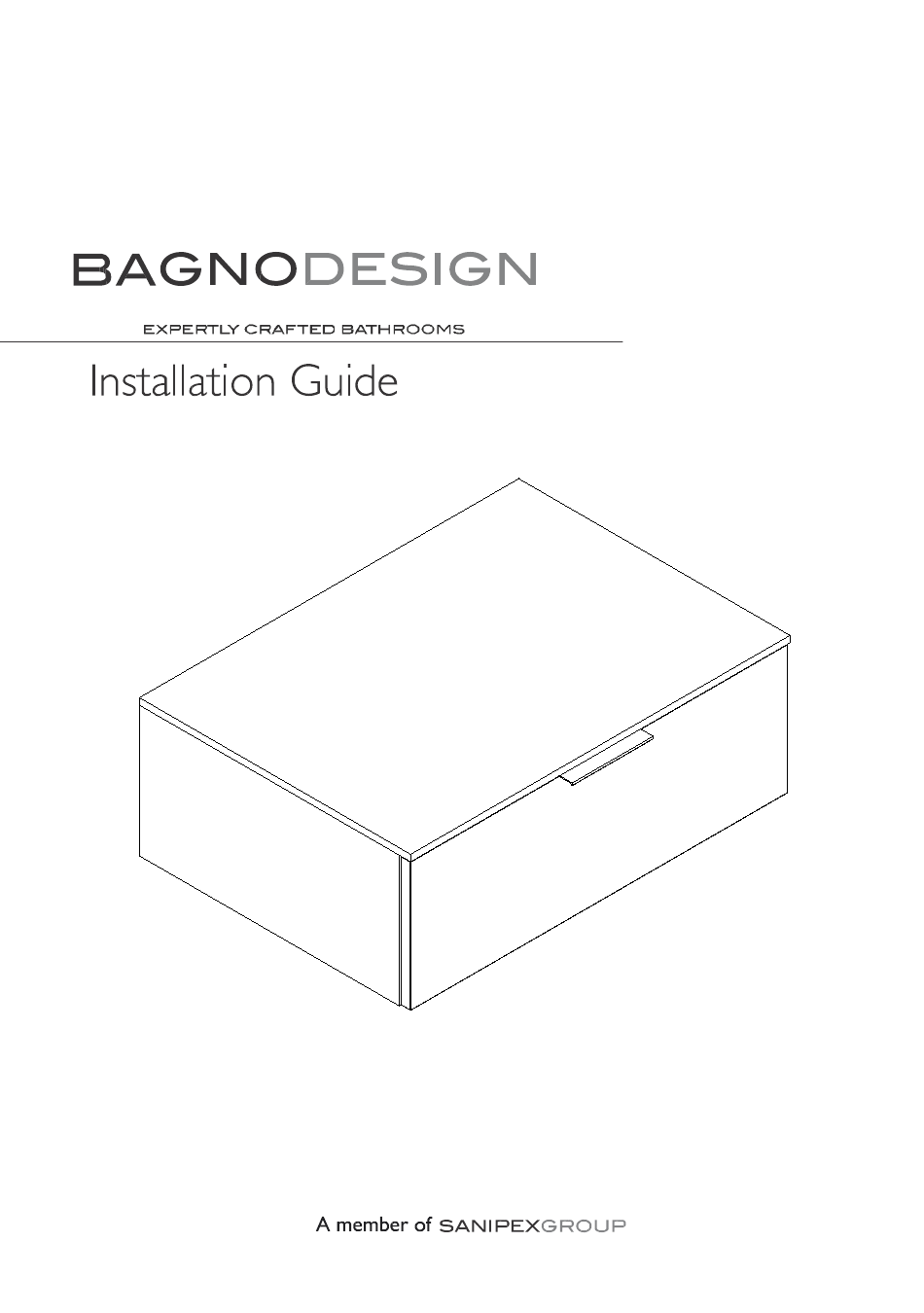

- Page 1 BDF-OMB-XX OMBRA WALL MOUNTED VANITY UNIT WITH COUNTER www.sanipexgroup.com...
-
Page 2: Important Please Read
IMPORTANT PLEASE READ All products manufactured and supplied by BAGNODESIGN are fit for purpose as long as they are Installed, used correctly, cleaned and receive regular maintenance in accordance with these instructions ... Remove all packaging and check the product for damage or missing parts before commencing with the installation. - Page 3 Tools Required (Not supplied) CROSS HEAD PENCIL WATER LEVEL SILICON GUN DRILL & BITS SCREWDRIVER Wall Mounted Base Unit Ø8mm To be used as storage unit Ø8mm Ø8mm To be used with sit on basin unit To be used with under mount basin unit...
- Page 4 Remove Drawer Install Suspended Base Gently lift the cabinets into the position of that the cabinets hangers sit onto the wall bracket.
- Page 5 Adjust Hanger Fix Suspended Base Ø8mm Ø8mm...
- Page 6 Optional for Basin Fixing Hole Cut Out for under mount basin Hole Cut Out for sit on basin Install top on counter Install Under Mount Basin with Bracket Countertop Silicon Sink Mounting Screw Bracket Install top on counter Install sit on basin...
- Page 7 Optional for Basin Fixing Adjust Countertop with water level...
- Page 8 Remove Drawer Drawer Assembly...
- Page 10 Installation Complete Can be used as storage unit. Can be used with sit on basin unit. Can be used with under mount basin unit.
- Page 11 Note:...
- Page 12 www.sanipexgroup.com INF-OMB-XX-03-21...
