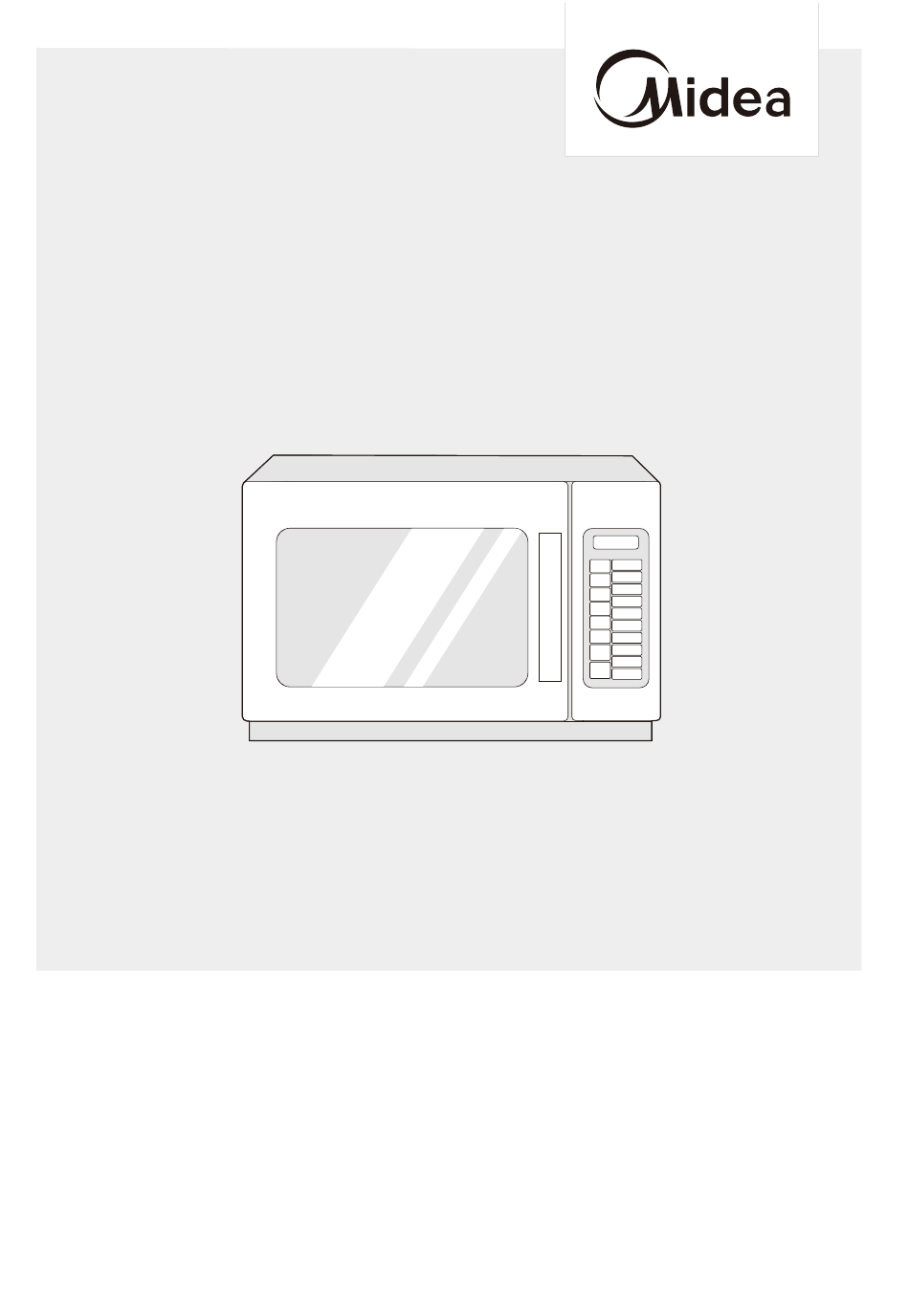

MICROWAVE OVEN
USER MANUAL
MCM1834G1F
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement. Consult
with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCM1834G1F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea MCM1834G1F

Summary of Contents for Midea MCM1834G1F

  • Page 1 MICROWAVE OVEN USER MANUAL MCM1834G1F Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

  • Page 2: Table Of Contents

    THANK YOU LETTER THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

  • Page 3: Safety Instructions

    If you find any damage, please contact to Midea’s nominated commercial product suppliers. Please note modifications or alterations to the appliance are not allowed for your safety concern.
  • Page 4 Precautions To Avoid Possible Exposure To Excessive Microwave Energy a. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. b.
  • Page 5 Important Safety Instructions WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision...
  • Page 6 • WARNING : The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. • Only use utensils that are suitable for use in microwave ovens. •...
  • Page 7 To Reduce The Risk Of Injury To Persons Grounding Installation DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock.
  • Page 8 • If a long cord set or extension cord is used: - The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. - The extension cord must be a grounding-type 3-wire cord.
  • Page 9 Utensils CAUTION Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."...
  • Page 10 Materials you can use in microwave oven Utensils Remarks Follow manufacturer’s instructions. The bottom of browning Browning dish dish must be placed smoothly on the ceramic board. Incorrect usage may cause the ceramic board to break. Microwave-safe only. Follow manufacturer's instructions. Do Dinnerware not use cracked or chipped dishes.

  • Page 11: Specification

    SPECIFICATION MODEL MCM1834G1F RATED VOLTAGE 240V~50Hz RATED INPUT POWER(MICROWAVE): 3000W RATED OUTPUT POWER(MICROWAVE): 1800 W External Dimensions: 574x528x368mm Net Weight: Approx. 32.3 kg...

  • Page 12: Product Overview

    PRODUCT OVERVIEW Control Panel and Features Power Buttons (2) Time Entry Button (3) Double Quantity Button (4) Stop/Reset Button (5) Start Button (6) Number Keyboard...
  • Page 13 Setting Up Your Oven Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: User Manual A) Control panel B) Observation window C) Safety interlock system D) Ceramic board NOTE: 1.

  • Page 14: Product Installation

    PRODUCT INSTALLATION Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Installation 1.
  • Page 15 2. The appliance can be installed with a degree of overlap (Figure2). The maximum overlap height is two layers. - Loosening screw,Taking off installation board, then replacing screw in its place tightly. - Taking off four screws as shown in the picture. - Putting installation board to the following location then fixing screw just taking off tightly.
  • Page 16 How To Remove And Install The Filter Turn the metal nails left to loosen them. Take off the filter. To restall, align the base plate mounting holes, clockwise the metal nails to tighten .
  • Page 17 How To Remove And Install The Oil Blockage WARNING Before remove and install the oil blockage,be sure to unplug the appliance from the power supply,and avoid high temperature scald. thumb pressed here hands with oil blockage, pressed on hands with oil blockage, pressed on the arrow shown, pushed back slamly, the arrow shown, pushed back slamly, then pulling down.
  • Page 18 Installation (supplement) 1. The switching operation of this microwave oven can cause voltage fluctuations on the supply line. The operation of this oven under unfavorable voltage supply conditions can have adverse effects. This device is intended for the connection to a power supply system with a maximum permissible system impedance Zmax of 0.2 Ohms at the interface point of the user’s supply.

  • Page 19: Operation Instructions

    OPERATION INSTRUCTIONS Appendix. A User Options Items bolded below are the default values. Option Setting Discription OP:10 3 seconds beep 1 EOC Tone OP:11 Continuous beep OP:12 5 quick beeps,Repeating OP:20 Beeper Off OP:21 2 Beeper Volume OP:22 Medium OP:23 High OP:30 Keybeep Off...
  • Page 20 Appendix. B Default Cook Times The oven shall ship with the following Preset Cook Times unless otherwise noted in the product Specification. Button Display (Time) Power Cook Factor 0:10 100% 0:20 100% 0:30 100% 0:45 100% 1:00 100% 1:30 100% 2:00 100% 2:30...
  • Page 21 Power Up _ _ _ _ _ _ _ “ ” displays when the oven is electrified for the first time. If “ ” button pressed, the oven will change to idle mode. NOTE: Under idle mode, no button can be pressed. Idle Mode 1.
  • Page 22 Pause Mode 1. This mode allow the users to temporarily stop the cooking cycle to inspect or stir the food item. 2. While in Manual Cook Mode, or Preset Program Cook Mode, if the door is open and then closed, or if the “ ”...
  • Page 23 Preset Program Cook Mode 1. This mode allows cooking of food items through a one pad touch operation. While in Ready Mode,pressing one of ten digit keys on the keyboard will cause the oven to run the Preset Program associated with that key. 2.
  • Page 24 Step1: Open the door, press number button “1” for 5 seconds, “PROGRAM” displays. Step 2: Press number button “3”, the screen will display “P:03”, After two seconds, the screen will display the related time “:30”. Step 3: Press number buttons “1”, “2” and “5” to input the cooking time. Step 4: Press “Med-Hi 70% ”...
  • Page 25 8. Press “ ” button to start cooking. 9. The total time coutns down. User Option Mode This allows the user choose between various ways for the oven to operate. 1. Open the oven door and press “2” pad for 5 seconds. The buzzer sounds once and enter this mode.

  • Page 26: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Be sure to unplug the appliance from the power supply. • Clean the inside of the oven after using with a slightly damp cloth. • Clean the accessories in the usual way in soapy water. • The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

  • Page 27: Trouble Shooting

    TROUBLE SHOOTING Normal Radio and TV reception may be interfered when microwave Microwave oven oven operating. It is similar to the interference of small interfering TV reception electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal. In low power microwave cooking, oven light may become Dim oven light dim.

  • Page 28: Trademarks, Copyrights And Legal Statement

    Midea may constitute trademark infringement or unfair competition in violation of relevant laws. This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

  • Page 29: Disposal And Recycling

    DISPOSAL AND RECYCLING DISPOSAL AND RECYCLING Important instructions for environment Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.
  • Page 32 Midea (HK)
