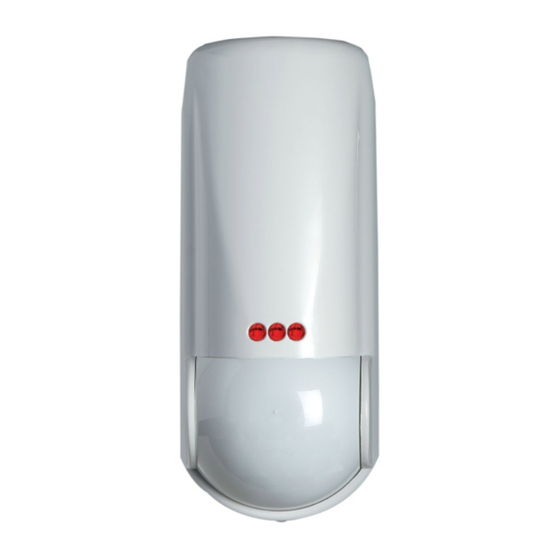

Pyronix Kudos AM 3 in 1 Quick Start Manual

OPERATION OF FEATURES
1. LED Enable / Disable (Switch A)
ON = LED Enable (Override the E- control)
OFF = LED Disable (E- controls the LEDs)
2. Operational Mode (Switch B)
ON: The detector operates in AM dual mode
OFF: The detector operates in AM PIR mode only and is intended for
use with a curtain or long range lens only.
In AM PIR mode, a triggering of the PIR causes the alarm relay to open
and the alarm LED to turn on. The PIR and Microwave LEDs are disabled.
Mask processing will work the same in both modes, i.e. the microwave signal
will be used to reset mask processing or a latched mask event
3. Mask (Switch C)
ON = Only mask relay opens and stays open upon mask processing
concluding a genuine mask situation has occurred.
OFF = Mask and alarm relays open and stay open upon mask processing
concluding a genuine mask situation has occurred.
F3
ANTI - MASKING Refer to
The KUDOS AM incorporates a unique anti-masking feature which will
prevent the alarm panel from being set if an attempt to block the PIR or
Microwave coverage pattern is detected. When something moves in close
proximity to the detector an anti-mask processing sequence will be
activated. This is indicated by the Red LED which will flash at half second
intervals. Processing will normally take 60 seconds to complete and during
this time the detector mask relay output will remain closed. If the detector
verifies that an attempt to block its coverage has been made then the
appropriate relay(s) will open (according to the alarm relay mode switch).
The relay(s) will remain open until the block has been removed. In addition
the Green and Orange LEDs will turn on regardless of whether LED disable
has been selected. To reset the detector to normal operating mode, remove
the blocking material, while the RED alarm LED is flashing the detector should
be walk tested to activate both technologies. After 60 seconds the RED alarm
LED should stop flashing. When the RED Alarm LED is no longer flashing the
detector should be walk tested again to activate both technologies. Under
certain conditions it may be possible for anti-masking system not to recognise
masking of one technology only. See Options 5 & 6.
NB. The above description assumes the relay mode switch G is set to
Normally Closed.
C
MASK - ADJUSTMENT Refer to
Mask sensitivity adjustment is provided by a potentiometer on the PCB.
Maximum sensitivity is achieved when the pot is turned fully clockwise.
To disable the anti-masking feature the pot should be turned fully counter
clockwise.
.
4. PIR Signal Processing (Switch D) refer to
PC1 = One detection zone must be crossed
SPP+ = Two opposing detection zones must be crossed
5. And /Or (Switch E)
Single technology masking can be prevented by switching switch E to OFF
(OR mode is functional).
AND = Conventional dual tech, both technologies need to be
triggered simultaneously to generate an alarm.
OR = If either single technology detects prolonged intruder activity
an alarm will be generated independently.
Immunity testing carried out in AND mode.
6. Mask Security Mode (Switch F)
ON = Normal Anti Mask Security Mode
OFF = High Anti Mask Security Mode
Single Technology Masking can be prevented by using the Normal/High Anti
Mask Security Mode function. Switch F to OFF (Anti-Block)
When this mode is selected the RT input must be connected to a control
panel programmable (PGM) output.
When the panel is disarmed this input must be at 0V. When the panel is
armed the input must switch to 12V.
If an attempt to mask the detector is made during a disarmed state, then the
alarm relay will be held open until the detector masking is removed.
This fault is displayed as shown in diagram H7.
7. Relay mode (Switch G)
ON = Relay is in normally closed mode. (N/C)
OFF = Relay is in normally open mode. (N/O)
8. 50/60 Hz (Switch H)
Factory set.
9.
E- Remote LED enable terminal
To use the remote LED enable feature switch A must be in the OFF position.
9.1 Connections
To remotely enable LEDs 0 volts must be applied to the E- terminal.
9.2 Pyronix panels
Connect detector input E- to a PGM output and configure as walk test.
LED INDICATIONS
H1 H2 H3
Power up. Normal alarm. Micowave.
H5
PIR sensor
Microwave sensor
failed self test. failed self test.
H7
H6
Indication of a valid mask activation.
Mask processing in progress.
DIP switches (see diagram
Note: As Factory Default all switches are ON
SWITCH FEATURE POSITION MEANING
A LED Enable ON
OFF
B Operational ON
Mode
OFF
C Mask Relay ON
Action
OFF
D PIR ON
Processing
E
OFF
E AND/OR ON
OFF
F Mask ON
Security Mode
(Anti-Block) OFF
G Relay Mode ON
OFF
H Frequency of ON
Operation
OFF
WEIGHTS AND
A
DIMENSIONS
Kg
79.2 g
65mm
INSTALLATION
1. Remove the case lid by unscrewing the fixing screw illustrated in.
2. Remove the lens as shown in.
3. Remove the PCB, taking care not to touch the pyro sensor labeled.
4. Choose wall fixing holes, labeled
5. Mark wall for fixing positions (Do not route wires near mains cabling,
avoid vibrating surfaces and mount only on a solid wall)
6. Drill fixing holes
H4
7. Fix the case to the wall.
PIR
8. Replace the PCB taking care not to touch the pyro sensor, labeled
9. Using the DIP switches (See diagram
features and modes of operation.
Note:
The technology
10. Carry out walk test.
which has failed will be
indicated by a cylic flash 11. Refit the case lid and lens as shown in
and pause of the LED.
POTENTIAL FALSE ALARM HAZARDS.
1. Direct sunlight on detector
2. Pets and animals
3. Mounting detector near heaters
4. Draught's from open windows
Diagrams
)
C
Weights And Dimensions
A
Coverage Patterns
B
15m Volumetric Lens
B1
25m Curtain Lens
B2
LED Enable
45m Long Range Lens
B3
Board Layout
LED Disable
C
Mounting & Cable Entry
D
Dual Tech Mode
PIR Detection Methods
E
Wiring to Control Panel
F
AM PIR Mode
Remote LED Enable
F1
Open Mask relay
Tamper Operation
F2
only when in mask
Mask Operation
F3
Normally Closed Operation
F4
Open Mask and Alarm
relay when in mask F5 Normally Open Operation
Optional Tamper Unit
G
SPP+
H Front Cover & Lenses
Removing Cover
H1
PC1
H2 Removing Lens
AND mode is functional
SPECIFICATIONS (QUICK REFERENCE)
OR mode is functional
Model:
Normal Anti Mask Security Mode
Casing:
High Anti Mask Security Mode
Lens:
Relays Normally Closed
.
Detection method:
Relays Normally Open
Digital signal processing: PC1, SPP+
Detection speed:
50Hz
Operating Voltage:
60Hz
Current consumption:
@13.8V
Relay Output:
Mounting Height:
Tamper Switch:
Storage Temp:
155mm
Operating Temp:
Emissions:
Immunity:
Accessories:
This product is sold subject to our standard warranty conditions and is warranted against defects in
55mm
workmanship for a period of two years. In the interest of continuing improvement of quality, customer care and design,
Pyronix Ltd reserve the right to amend specifications without giving prior notice.
GB
H1
H2
C1
D2 and D3 on diagram.
C1
) select the required
C2
H1 and H2
Kudos AM 3 in 1
White 3mm ABS Back / Front cover
0.7mm HDPE in lens area
Volumetric: 15m, 74 zones, 7 planes, 2.4m mounting height
Curtain 25m, 24 Zones, 6 planes, 5m mounting height
Long Range 45m, 46 zones, 6 planes, 2.4 mounting height
Low noise dual element pyroelectric sensor + microwave
0.25 - 2.5 m/s
9-16 VDC
40mA Quiescent
35mA Alarm
105mA self test (short burst per test)
60Vdc, 50mA (42.4Vac peak)
1.8 - 2.4m Volumetric
1.8 - 5.0m Curtain
1.8 - 2.4m Long Range
Normally closed voltage free contacts
(12V 50mA max rating)
0 0 0 0
-40 C / 80 C (-40 F / 176 F )
0 0 0 0
-30 C / 70 C (22 F / 158 F )
EN55022 Class B
To new European Standard EN50130-4
Optional back tamper
WARRANTY
K
udos AM
3 in 1
Pyronix Limited
Pyronix House
Braithwell Way
Hellaby, Rotherham
S66 8QY, ENGLAND
Customer Support:
+44(0)845 6434 999 (local rate)
or +44(0)1709 535225
Hours: Mon to Fri, 8:00am till 6:30pm
Email: customer.support@pyronix.com
Website: www.pyronix.com
PYRONIX LTD
R
0C03
This product is approved for use in the
Residential, Commercial and Light Industrial Environment.
TS50131-2-4
EN50131-1
PD6662:2004
Security Grade 3
Environmental Class 2
This product complies with TS50131-2-4. at security grade 3,
environmental class 2.
UK = Suitable for use with systems installed to PD6662:2004 (AMD)
EXPORT = Suitable for use with systems installed to EN50131-1
RINS845-3
