Freelap LED Display Instructions For Use

3
FURTHER INFORMATION

BATTERY AND BATTERY LIFE

Your LED Display has a rechargeable 12V 8Ah LiPo battery.
> Low battery indicator: When the battery is low the "ON/OFF" button,
normally green, turns red.
> Recharging the battery:
- Connect the power cable (supplied, with 2 pins) to the charging port on
the side of the device.
- It is recommended to make complete charges (charging time: 8h).
- When the battery is full, the device has a battery life of 5 hours.

TECHNICAL SHEET:

• Dimensions: 320 x 160 x 95 mm
• Weight: 3.1 kg (+ tripod 600 g)
• Display: LED
• Resolution: 64 X 16 dots
• Visible at: 50 m
• Compatibility: Relay Coach BLE, FxChip BLE
• Technology: Bluetooth
• Bluetooth detection distance: up to 50 meters
• Battery: 12V 8Ah LiPo
• Battery life: 5 hours (charging time 8 hours)
• Water resistance: 3ATM
• Operating temperatures: -20°C to +50°C
• Included: tripod, charger and carrying case

TECHNICAL SUPPORT

Our FAQ (Frequently Asked Questions), as well as other manuals and user
guides, can be found on our website at:
http://www.freelap.ch/support/
If you cannot find the answers to your questions, please contact your
Freelap dealer. Find the list of Freelap dealers at:
http://www.freelap.ch/freelap-contact/
AFTER-SALES SERVICE & WARRANTY
Your LED Display is guaranteed 2 years. If you have any questions or if
you need assistance with your device, please contact your Freelap
dealer.
www.freelap.ch
Follow Freelap on &
MADE BY FREELAP SA
Av. D.-Jeanrichard 2A
CH-2114 Fleurier – Switzerland
+41 32 861 52 42 - www.freelap.ch

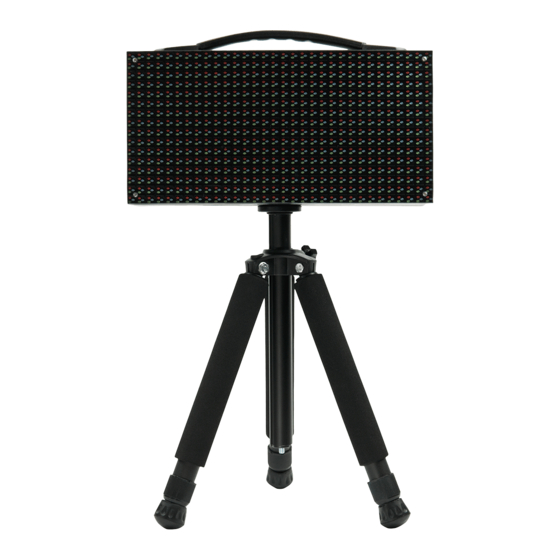

LED DISPLAY
LED DISPLAY OF FREELAP
AUTOMATIC TIMING SYSTEM
INSTRUCTION FOR USE
