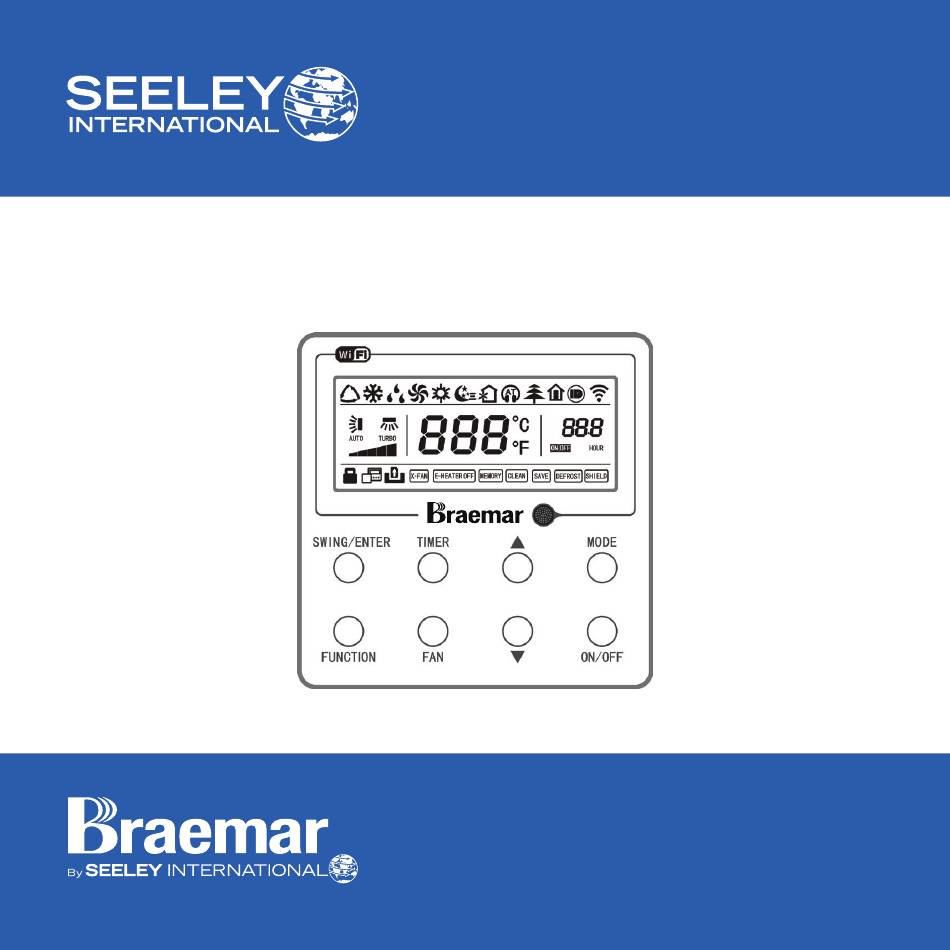

- Page 1 OWNER’S MANUAL WIRED CONTROLLER XE73-44E (English)(NDHV SERIES) SEELEY INTERNATIONAL - OWNER’S MANUAL...
- Page 2 IMPORTANT As with any product that has moving parts or is subject to wear and tear, it is VERY IMPORTANT that you maintain your air conditioner and have it regularly serviced. Accordingly, it is a condition of warranty cover for your air conditioner that you comply with all of the maintenance and service requirements set out in this manual.
-
Page 3: Table Of Contents
Table of contents INTRODUCTION AND SAFETY CONTROLLER LAYOUT SYMBOLS ON LCD BUTTONS ON THE WIRED CONTROLLER OPERATION ON/OFF MODE SETTING TEMPERATURE SETTING FAN SETTING TIMER SETTING UP & DOWN SWING SETTING LEFT & RIGHT SWING SETTING FRESH AIR VALVE FUNCTION SETTING SLEEP SETTING TURBO SETTING ENERGY SAVING FUNCTION SETTING... -
Page 4: Introduction And Safety
INTRODUCTION AND SAFETY Congratulations on purchasing a new Braemar Air Conditioner! Please keep this Manual and the Warranty Booklet in a safe place, along with the original purchase documents, plus all relevant certificates of compliance relating to the installation work performed. Please register the Warranty straight away, by following the steps set out in the Warranty Booklet. - Page 5 Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 6: Controller Layout
CONTROLLER LAYOUT Your Braemar Air Conditioner has been designed and built with reliable, quality components. To ensure many years of trouble free, dependable service please read the following pages very carefully, and please ensure that you follow all of the instructions. WIRED CONTROLLER Please follow the below cautionary notes when using the wired controller:- Do not install the wired controller in a damp place or under direct sunlight. - Page 7 Secondary wired Icon of secondary wired controller, it will display when secondary controller wired controller is set (this function is unavailable for this unit.) Table 01: Description of symbols SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 8: Buttons On The Wired Controller
CONTROLLER LAYOUT cont. BUTTONS ON THE WIRED CONTROLLER Fig. 02 Table 02.1 NDHV Series Bulkhead Unit... - Page 9 “°C” Table 02.2 SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 10: Operation
OPERATION ON/OFF Press ON/OFF to turn on the unit and turn it off by another press. Note: The state shown in Fig. 03 indicates the “OFF” state of the unit after power on. The state shown in Fig. 04 indicates the “ON” state of the unit after power on. Fig. -
Page 11: Temperature Setting
1°C (1°F) every 0.5s, as shown in Fig.06. In the Cooling, Dry, Fan or Heating mode, the temperature setting range is 16°C~30°C (61°F~86°F). In the Auto mode, the setting temperature is not adjustable. Fig. 06 SEELEY INTERNATIONAL - OWNER’S MANUAL... -
Page 12: Fan Setting
OPERATION cont. FAN SETTING Under the “ON” state of the unit, press the “Fan” button to vary the speeds as shown in the sequence below. Fig. 07 TIMER SETTING Under the “ON”/”OFF” state of the unit, press Timer to set timer off/on. Timer “ON”... - Page 13 Fig. 08: Timer off setting under the “ON” State of the unit SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 14: Up & Down Swing Setting
OPERATION cont. UP & DOWN SWING SETTING There are two ways for up and down swing mode: Simple swing and Fixed swing. Simple Swing: if selected, the vanes will oscillate up and down continuously. Fixed Swing: if selected, you can set a range of different swing settings. Under off status, press “SWING/ENTER”... - Page 15 1. Sleep, Turbo or X-fan setting is the same as the Swing setting. 2. After the setting has been done, it has to press the key “SWING/ENTER” to back to the setting status or quit automatically five seconds later. SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 16: Fresh Air Valve Function Setting
OPERATION cont. FRESH AIR VALVE FUNCTION SETTING Turn on fresh air valve function: Under unit on status, press FUNCTION button on the panel to select “Fresh air valve” function option. When icon flashes, it enters fresh air valve setting mode. Previous temperature display position will display the level of fresh air valve. - Page 17 Fig. 10: Fresh Air Function Setting SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 18: Sleep Setting
OPERATION cont. SLEEP SETTING Sleep on: Press FUNCTION under on state of the unit till the unit enters the Sleep setting interface. Press SWING/ENTER to confirm the setting. Sleep off: When the Sleep function is activated, press FUNCTION to enter the Sleep setting interface. Next, press SWING/ENTER to can this function. -
Page 19: Turbo Setting
SWING/ENTER to confirm the setting. When the Turbo function is activated, press FUNCTION to enter the Turbo setting interface and then press SWING/ENTER to cancel this function. Turbo function setting is as shown in Fig.12. Fig. 12: Turbo setting SEELEY INTERNATIONAL - OWNER’S MANUAL... -
Page 20: Energy Saving Function Setting
OPERATION cont. ENERGY SAVING FUNCTION SETTING Turn on energy saving function: Energy Saving Setting for Cooling When the unit runs under the COOL or DRY mode, press FUNCTION button to select “SAVE” function option, with “SAVE” flashing, and then press ▲ or ▼ to adjust the lower limit, next, press the SWING/ENTER button to activate this function. - Page 21 Fig. 13 Energy Saving Function Setting SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 22: E-Heater Setting
OPERATION cont. E-HEATER SETTING E-heater (auxiliary electric heating function): In the Heating mode, E-heater is allowed to be turned on for improvement of capacity. Once the wired controller or the remote controller enters the Heating mode, this function will be turned on automatically. -
Page 23: X-Fan Setting
2 min, with “X-FAN” displayed on the LCD. While, if the X-fan function is deactivated, the indoor fan will be turned off directly. (2) X-fan function is unavailable in the Fan or Heating mode. SEELEY INTERNATIONAL - OWNER’S MANUAL... -
Page 24: Quiet Function Setting
OPERATION cont. QUIET FUNCTION SETTING Turn on quiet function: Under unit on status, press FUNCTION button on the panel to select “Quiet” function option. When “Quiet” or “Auto quiet” flashes, it enters quiet function setting mode. Press ▲ or ▼ button to switch between “Quiet”... -
Page 25: Health Setting
Health on: Press FUNCTION under on state of the unit till the unit enters the Health setting interface. Press SWING/ENTER to confirm the setting. Health off: When the Health function is activated, press FUNCTION to enter the Health setting interface. Next, press SWING/ENTER to cancel this function. Fig. 17: Health setting SEELEY INTERNATIONAL - OWNER’S MANUAL... -
Page 26: Absent Setting
OPERATION cont. ABSENT SETTING Absent on: Press FUNCTION under on state of the unit till the unit enters the Absent setting interface. Press SWING/ENTER to confirm the setting. Absent off: When the Absent function is activated, press FUNCTION to enter the Absent setting interface. After that, press SWING/ENTER to cancel this function. -
Page 27: I-Demand Setting
This function and sleep function cannot be on simultaneously. If I-demand function is set firstly and then sleep/quiet function is set, I-demand function will be cancelled while sleep function will be valid, and vice versa. SEELEY INTERNATIONAL - OWNER’S MANUAL... - Page 28 OPERATION cont. Turn on the unit,without turning on Press “FUNCTION” button into Press “SWING/ENTER” button to turn I-demand function I-demand state on I-demand function Press “SWING/ENTER” button to turn Press “FUNCTION” button into off I-demand function I-demand state Fig. 19: i-Demand setting NDHV Series Bulkhead Unit...
-
Page 29: Wifi Function Setting
Press FUNCTION under on state of the unit till the unit enters the WiFi setting interface, the temperature area will display the WiFi status. Press “▲” or “▼” button to turn on WiFi(“ON” is displayed) or turn off WiFi (“OFF” is displayed), and then press “SWING/ENTER”button to confirm it. SEELEY INTERNATIONAL - OWNER’S MANUAL... -
Page 30: Dred Function Setting
OPERATION cont. DRED FUNCTION SETTING When outdoor unit enters DRED mode: when it detects DRED signal, the whole unit executes DRED mode. When it enters DRED mode, the outdoor unit does timekeeping and feeds back the signal to indoor unit. Under power-on state, the set temperature area displays corresponding code, DRED1, DRED2, DRED3 correspond to “d1”, “d2”, “d3”. -
Page 31: Other Functions
Select the temperature sensor at the wired controller under the cooling, dry and fan modes, and select the temperature sensor at the return air inlet under the heating mode and auto modes (04 displayed in the timer display area). SEELEY INTERNATIONAL - OWNER’S MANUAL... - Page 32 OPERATION cont. After the setting, press “SWING/ENTER” to make a confirmation and quit this setting status. Pressing the button “ON/OFF” also can quit this commissioning status but the set data won’t be memorized. Under the commissioning status, if there is no any operation in 20 seconds after the last button press, it will back to the previous state without memorizing the current data.
-
Page 33: Errors Display
LCD, as shown in Fig. 21. If multi errors occur at the same time, their codes will be displayed circularly. Note: In event of any error, please turn off the unit and contact the professionally skilled personnel. Fig. 21 SEELEY INTERNATIONAL - OWNER’S MANUAL... - Page 34 Error Error Error Error Code Code Indoor ambient temperature sensor is open/short circuited Indoor evaporator temperature sensor is open/short circuited Compressor phase loss/reversal protection System charge shortage or blockage protection Table 03.1 NDHV Series Bulkhead Unit Error Error Error Error...
- Page 35 Error Error Error Error Code Code Compressor inhalation temperature sensor error Jumper cap malfuntion protection Loading EEPROM malfunction Table 03.2 SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 36: Maintenance Schedule
MAINTENANCE SCHEDULE Please NOTE: The Maintenance Schedule covers Year 1 to Year 5 Installation Date: Installer: Items to be done by the (please sign in the places indicated) Home Owner/User Monthly Annually Year 1 Year 2 Year 3 Year 4 Year 5 Air filter cleaning Air filter replacement Maintain required clearance... - Page 37 To preserve your investment for many years after the expiry of warranty, we strongly recommend that you continue to maintain and service the Braemar Air Conditioner appliance as per the items and frequency set out in the Schedule, and as indicated elsewhere in the Owner’s Manual. SEELEY INTERNATIONAL - OWNER’S MANUAL...
-
Page 38: Operation Tips
OPERATION TIPS The following events may occur during normal operation: 1. Protection of the air conditioner. Compressor protection -The compressor cannot restart for 3 minutes after it stops. -The supply air drops below a pre-determined set point; this prevents the indoor coil from freezing. - Page 39 3. ‘Clicking’ sound plastic parts may expand or shrink due is heard from the air 3.1 This is normal. to a sudden temperature change. In this conditioner. event, a clicking sound may occur. Table 04 SEELEY INTERNATIONAL - OWNER’S MANUAL...
- Page 40 Warranty Service Australia 1300 650 644 It is the policy of Seeley International to introduce continuous product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected. NDHV-01-A...
