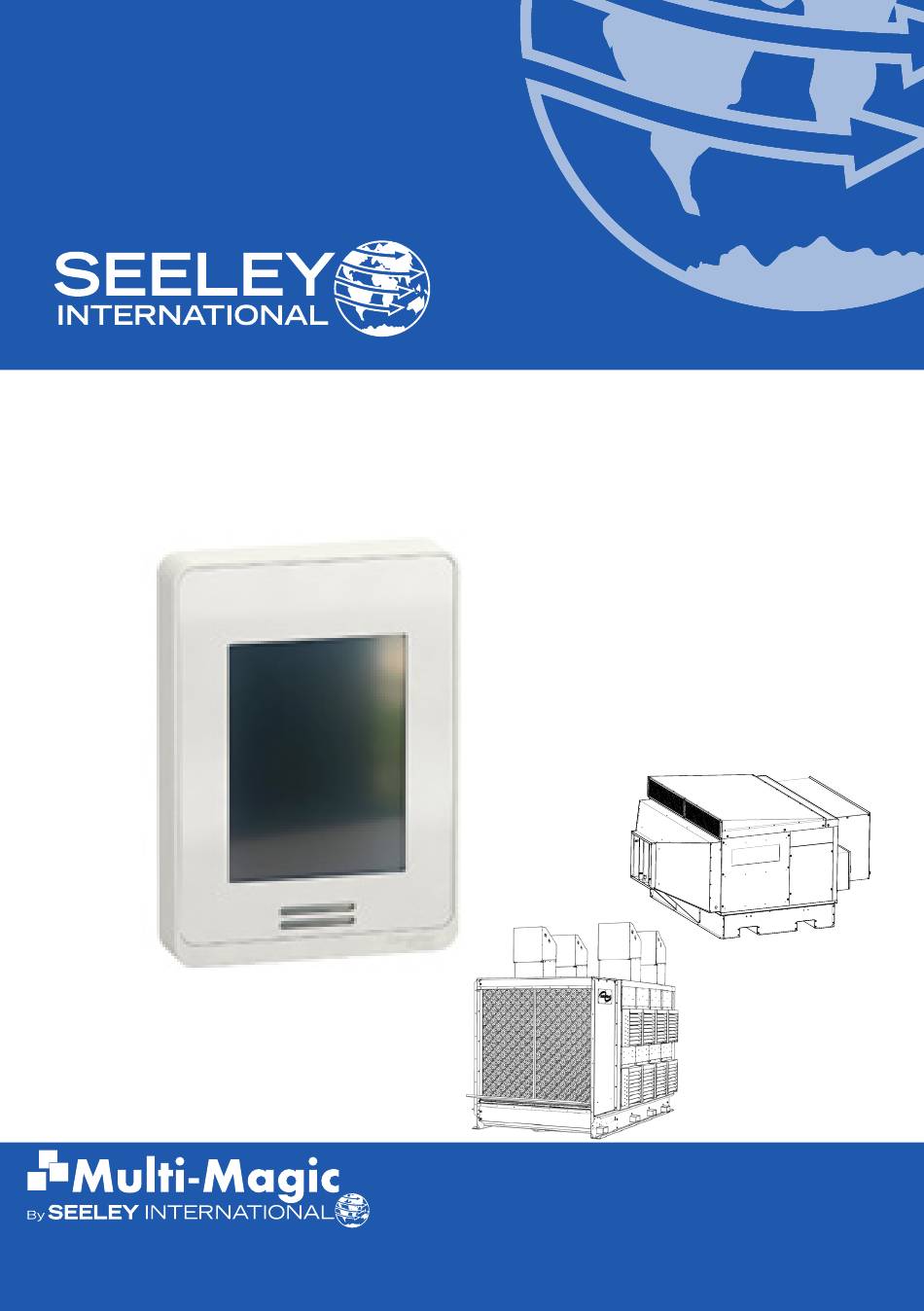

- Page 1 USER MANUAL MULTI-MAGIC WALL CONTROLLER ILL2468-A ® Original English Instructions...
-
Page 3: Table Of Contents
MINIMUM - MAXIMUM FAN SPEED LIMITS MODBUS RS 485 NETWORK SETUP DEVICE MONITOR SCREENS MENU COOLER MONITOR FAULT HISTORY COOLER FAULTS AND TROUBLESHOOTING FAULT SCREEN DISPLAY FAULT CODE DESCRIPTIONS OTHER POTENTIAL PROBLEMS APPENDIX - EXAMPLE WIRING SCHEMATIC MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 4: Overview
OVERVIEW COOLER MODELS The Wall Controller is compatible with CW-H and CW-80 coolers with Multi-Magic controls These instructions are to be read in conjunction with the Installation and Operation and ITEM 1 ITEM 2 Maintenance literature supplied with the coolers. -
Page 5: Quick Start
QUICK START 24 V AC/DC POWER AND RS 485 MODBUS COMMUNICATIONS WIRING WALL CONTROLLER RS 485 + RS 485 - ILL3630-B CW-H COOLER CW-80 COOLER ILL3630-B ILL3631-E ILL3879-A MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 6: Main Screen Layout
ILL3632-B RS 485 MODBUS NETWORK SETUP - FIRST TIME USE IMPORTANT - The Multi-Magic Wall Controller can control up to 15 CW-H and/or CW-80 coolers. ILL3632-A Ensure each cooler is powered up and has a unique node address set. Refer to installation literature provided with the cooler for setup instructions. -
Page 7: Physical Description & Mounting
ILL3672-A Holes for temperature and humidity measurement The Multi-Magic Wall Controller should be placed indoors, approximately 1.5 metres (5’) above the floor, in the same zone in which cooling is required. Placement is critical for correct functioning of the temperature and humidity sensors inside the Controller. -
Page 8: Wall Controller Installation Instructions
PHYSICAL DESCRIPTION & MOUNTING WALL CONTROLLER INSTALLATION INSTRUCTIONS ILL3670-A Step Action Open unit by pulling on bottom side of the display (1) Ensure correct side of base faces up Pull cables 150 mm (5.90 in.) out from wall Align base and mark location of two mounting holes on wall or panel (2) ILL3670-A CAUTION! Always make sure there are no electrical cables, gas or water pipes, or the like, behind... -
Page 9: Connecting
ILL3705-A the Wall Controller Attach the 120Ω resistor (supplied with Multi-Magic coolers) between the "+" and "-" terminals of the last cooler on the RS 485 Modbus network. Do not fit the 120Ω resistor to coolers installed between the Wall Controller and the last cooler.. -
Page 10: Power
Fuse Recommendation (not included) Type T 500mA The Multi-Magic Wall Controller can be powered by either a cooler on the network or a dedicated power supply. Note: Should a networked cooler be used for providing power, turning power off the cooler will prevent the Wall Controller from controlling the remaining coolers on the network. -
Page 11: Terminating Resistor
WALL CONTROLLER ILL3638-B ILL3638-B Attach the 120Ω resistor (supplied with coolers) between the “+” and “-” terminals of the LAST cooler on the RS 485 Modbus network. CW-80 COOLER CW-H COOLER ILL3881-A ILL3882-A MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 12: Operation Screens
OPERATION SCREENS MAIN MENU DATE TIME DATE TIME ON OFF ON - OFF COOL MODE COOL MODE VENT MODE VENT MODE INTERNAL INTERNAL TEMPERATURE / TEMPERATURE / HUMIDITY HUMIDITY PROGRAM MODE PROGRAM MODE SETTINGS SETTINGS ILL3632-B ILL3632-A 859731-E... -
Page 13: Cool Mode (Manual Speed Control)
*Note: The DIRECT cooling stage button is only available if Supercool cooler(s) are detected during Network Setup. *Note: The DIRECT cooling stage can only be turned ON if the INDIRECT stage is also ON. MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 14: Cool Mode (Automatic Speed Control)
OPERATION SCREENS COOL MODE (AUTOMATIC SPEED CONTROL) Use COOL mode with automatic speed control to maintain space temperature and relative humidity* by automatically varying the connected cooler(s) fan speed. ON OFF COOL MODE (AUTO CONTROL) SETPOINT TEMPERATURE * SETPOINT RELATIVE HUMIDITY INCREASE / DECREASE INCREASE / DECREASE ILL3643-C... -
Page 15: Vent Mode
ILL3644-D To enable VENT mode with manual speed control, • Press the ON-OFF button. • Press the VENT mode button. • Press the FAN SPEED UP DOWN arrow buttons to set fan speed. MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 16: Program Mode
OPERATION SCREENS PROGRAM MODE Use PROGRAM mode to maintain space temperature and relative humidity* on a “set and forget” seven-day program. ON OFF ON - OFF EDIT BUTTON EDIT BUTTON PROGRAM MODE PROGRAM MODE READ ONLY READ ONLY DETAILS DETAILS ILL3645-C When PROGRAM mode is enabled, the wall controller will check the current day, time, temperature and relative humidity set points against the real time/current values and run the connected cooler(s) -
Page 17: Edit The 7-Day Program
SAVE DAY. Alternatively, press SAVE ALL to save the shown schedule to all days. *Note: Relative humidity set point options are only available if Supercool cooler(s) are detected during Network Setup. MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 18: Setting Screens
SETTING SCREENS MENU SETTINGS ILL3646-B ILL3646-B WALL CONTROLLER SOFTWARE VERSION SETUP TIME AND DATE SETUP LANGUAGE ENABLE/DISABLE CONFIGURATION MENU SECURITY LOCK CELSIUS/FAHRENHEIT DEVICE MONITOR PAGES SELECTION ILL3647-D 859731-E... -
Page 19: Time And Date
To change the Wall Controller language press the Change Language box and select from ENGLISH (default), SPANISH, ITALIAN and FRENCH. Note: The Wall Controller will automatically restart if the language is changed. MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E | ILL3827-A... -
Page 20: Security Lock
SETTING SCREENS SECURITY LOCK ENTER SERVICE PASSWORD ENTER USER PASSWORD VIEW CURRENT OPERATING STATE ILL3828-A First Time Use. Upon enabling Security Lock for the first time, the user is required to set a 4 digit user passcode. If enabled, the Security Lock screen will appear 60 seconds after the screen has been idle. Enter the user passcode to remove the Security Lock screen and make changes to the Wall Controller operating mode. -
Page 21: Configuration Screens
NOTE! Ambient Conditioning Monitoring mode is not compatible with the Minimum/Maximum Fan Speed functions. When Minimum/Maximum Fan Speed mode is enabled, Ambient Conditioning Monitoring is automatically disabled. MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 22: Minimum - Maximum Fan Speed Limits
CONFIGURATION SCREENS MINIMUM - MAXIMUM FAN SPEED LIMITS ILL3876-A Check the box to set specified minimum and maximum fan speed limits between Speeds 1 and 10. Minimum Speed For Vent Mode and Cool Mode (Manual Speed Control) • Users will be unable to manually select a fan speed below the specified minimum limit. For Cool Mode (Automatic Speed Control) and Program Mode •... -
Page 23: Modbus Rs 485 Network Setup
Error will be shown when no coolers are found on Error will be shown when no Devices are found the network. on the network. ILL3831-A MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 24: Device Monitor Screens
CLEAN WATER DRAIN The chlorinator has not run for 24 hours and a complete tank drain and fill cycle is in progress REMOTE SHUTDOWN Multi-Magic Wall Controller has been locked by a BMS input. Refer to Wall Controller manual. 859731-E... -
Page 25: Cooler Monitor
Each fault is time stamped based on the settings from the TIME AND DATE screen. ILL3652-B Press NEXT to cycle through 3 pages of fault history. Press CLEAR to remove all historical faults. MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... - Page 26 REMOTE BMS LOCK ILL3832-A ILL3832-A Use the BMS IEC or DEC input terminals on any connected cooler to remotely shutdown all connected coolers and lock the Wall Controller. When applied, no cooler control from the Wall Controller is possible and all connected coolers will display "REMOTE SHUTDOWN". •...
-
Page 27: Cooler Faults And Troubleshooting
Should a connected cooler detect a fault the following pop-up screen will appear on the Wall Controller. ILL3653-D Scan the QR Code with a compatible smartphone to be directed to the Seeley International Climate Wizard Technical Documents website. Press RESET to remove the pop-up screen and restart the effected cooler. If the fault re-occurs the pop-up screen will re-appear. -
Page 28: Fault Code Descriptions
COOLER FAULTS AND TROUBLESHOOTING FAULT CODE DESCRIPTIONS All faults below shut the individual cooler down unless stated. Other coolers on the same RS 485 Modbus network will continue to run. For cooler faults, please refer to the cooler manual for further details. Code Component Fault Description... -
Page 29: Other Potential Problems
Device Monitor Coolers may continue to run, but at an increased risk of Fault Code 2 (Failure to detect water at Low Prove) and Fault Code 3 (Failure to detect water at High Probe). MULTI-MAGIC WALL CONTROLLER USER MANUAL 859731-E |... -
Page 30: Appendix - Example Wiring Schematic
APPENDIX - EXAMPLE WIRING SCHEMATIC INTERMEDIATE COOLERS FAULT LOCK FINAL COOLER ROOM SENSOR FAULT (OPTIONAL KIT) ILL3706-F 859731-E... - Page 31 FIRST COOLER AMBIENT SENSOR (OPTIONAL KIT) FAULT WALL CONTROLLER...
- Page 32 6 Witton Road, Foundersview South, Modderfontein 1609, Gauteng, South Africa It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
