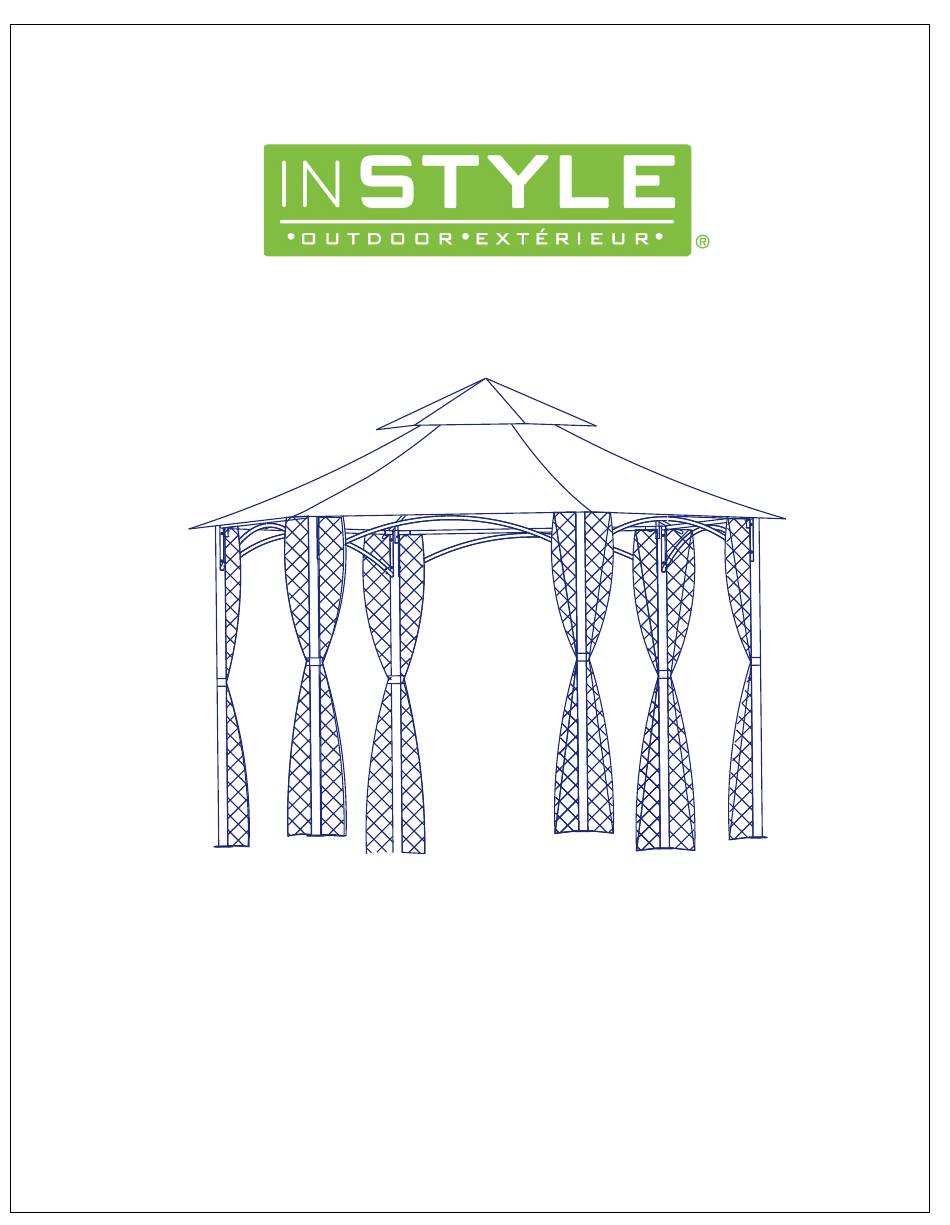

- Page 1 Instruction Manual SKU: 6414-304 Pinnacle Dia 13' Roof Style Hexagon Pavilion with All Around Netting...
-
Page 2: Safety Information
Safety Information WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This Tent is Made With Fabric That Meets CPAI-84 Specification For Flame Resistance. It is Not Fireproof. The Fabric Will Burn If Left In Continuous Contact With Any Flame Source. - Page 3 Extra Reminder:This gazebo has been created as a non-permanent structure. It is designed for sun shade and is not a shelter against adverse weather conditions. Do not use this gazebo in storms, hurricanes, typhoons, strong wind, and rain. Be aware that the water may sit and pool at the fabric canopy top after rain as indicated in the below diagram and may cause severe damage to the gazebo.
-
Page 4: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY It will take minimum two people to complete the assembly process. A free-standing ladder is needed during the assembly. While assembling the unit do not always tighten the bolts until the entire step is completed. You should begin the assembly no less than 6 feet from any fixed obstruction such as fences, a garage, a house, overhanging branches, electrical wires or laundry lines. -
Page 5: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Part Description Post Roof Tube Hub Upper Beam Tube Vent Cover Arched Beam Tube Main Canopy Roof Tube Netting Panel Beam Connector... - Page 6 Assembly STEP 1. Attaching the cross beams Fig. 2 Fig. 2 Click ! 1.1: Use Bolt (M6x45) BB to assemble Upper Beam Tube B and Arched Beam Tube C with Plas�c Spacer EE in between. Note: Don not forget to use Plas�c Spacer EE while assemble. 1.2: Depress the spring-loaded pin and insert Upper Beam Tube B and Arched Beam Tube C into Beam Connector E.
- Page 7 Assembly (continued) STEP 2. Setting Up the Main Frame 2.1: A�ach Beam Connector E to Post A with Bolt (M6x15) AA. Please ask for helping hands as you can during the main frame set up.
- Page 8 Assembly (continued) STEP 3. Attaching the Roof Frame Click ! 3.1. Depress the spring-loaded pin and insert Roof Tube D into Roof Tube Hub F. One a�er the another un�l spring pin pop out and lock the connec�on.
- Page 9 Assembly (continued) STEP 4. Attaching the Roof Frame 4.1. Depress the spring-loaded pin and insert Roof Tube D into Post A. One a�er another un�l spring pin pop out and lock the connector. Please move and adjust Roof Tube D to line up the hole posi�on to allow the spring-loaded pin pop out.
- Page 10 Assembly (continued) STEP 5. Assemble the Canopy 5.1. Pull the Main Canopy H over the roof frame. Extend the Main Canopy H over the frame. Pull corner pockets over each Roof Tube D. 5.2. Pull the Vent Cover G over the roof frame. Extend the Vent Cover G over the frame. Pull corner pockets over each Roof Tube D.
- Page 11 Assembly (continued) STEP 6. Assemble Netting Panels 6.1. Use the Ne�ng Ring FF to assemble the Ne�ng Panel J to the Cross Beam. Make sure Ne�ng Panel J match correctly to each side of the beams. Slide the Ne�ng Panel J open and close, make sure they run smoothly.
- Page 12 SKU: 6414-304 Code: 17JS00040101 Email: support@casualwayliving.com Home Hardware Stores Limited 34 Henry Street West, St. Jacobs, Ontario, Canada N0B 2N0...
