INSTYLE THORNCREST 6414-284 Instruction Manual

Poly carbonate hard top small space gazbo
Hide thumbs

Advertisement

Quick Links

Download this manual
Instruction Manual
SKU: 6414-284
THORNCREST 8'X5' POLY CARBONATE
HARD TOP SMALL SPACE GAZBO

Advertisement

loading
Need help?

Need help?

Do you have a question about the THORNCREST 6414-284 and is the answer not in the manual?

Questions and answers

Related Manuals for INSTYLE THORNCREST 6414-284

Summary of Contents for INSTYLE THORNCREST 6414-284

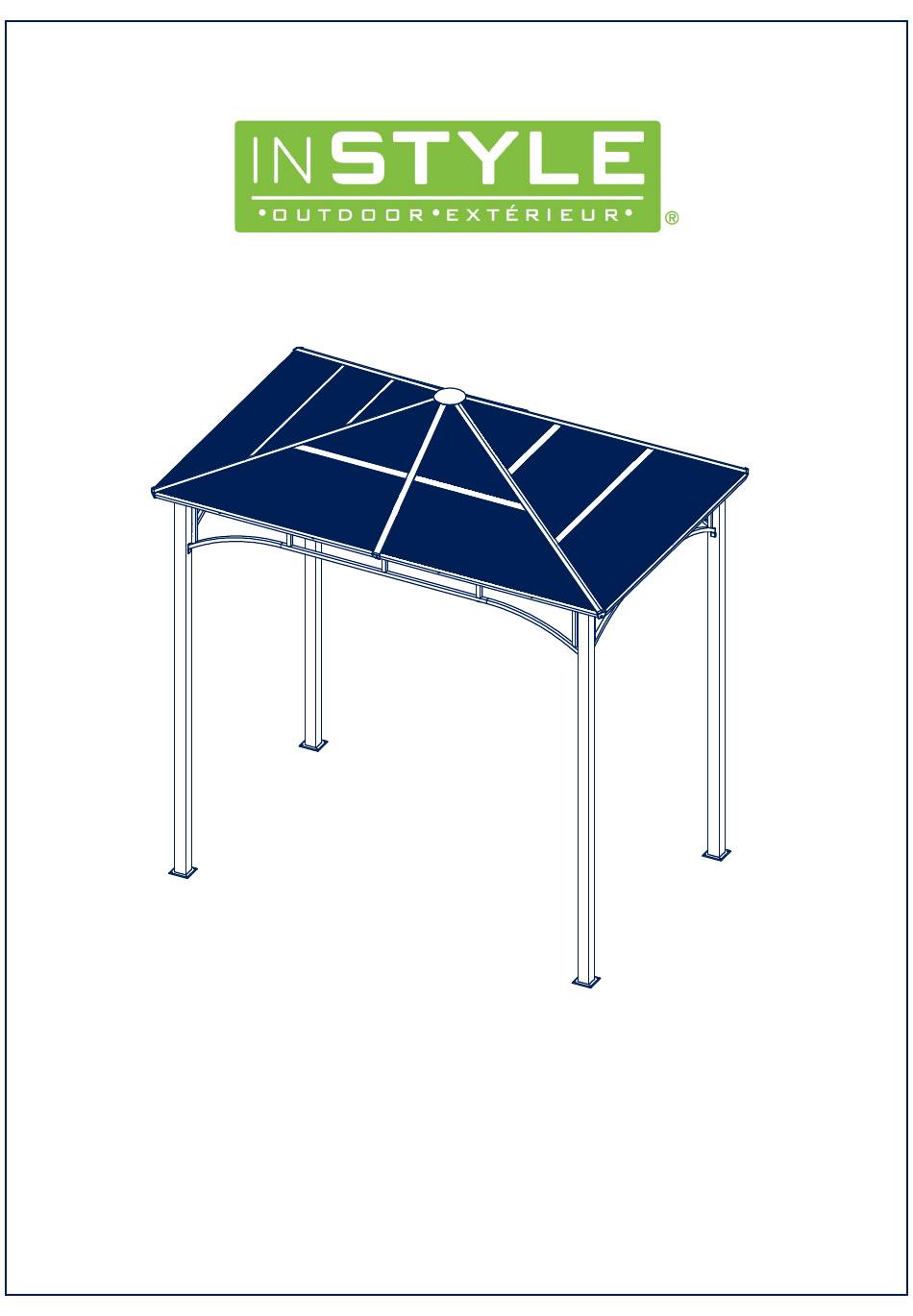

  • Page 1 Instruction Manual SKU: 6414-284 THORNCREST 8'X5' POLY CARBONATE HARD TOP SMALL SPACE GAZBO...

  • Page 2: Assembly Tips

    Always read and follow the instructions before use. When assembling and using this product, basic safety precautions must always be followed to reduce the risk of personal injury and damage to the product or surroundings. Be sure to keep all children and pets away from the assembly area. Do not attempt to assemble the gazebo in windy or wet conditions.

  • Page 3: Pre-Assembly

    Pre-Assembly HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Connect Pin Securing Wire Securing Knob Hook Anchor Bolt(M6X15) Allen Key...
  • Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Part Description Post U Bracket Long Beam Roof Cover Roof Connector Short Beam Corner Roof Rib Base Plate Middle Roof Rib Corner Connector Cap Left Slot Middle Connector Cap Right Slot Panel 1 Upper Slot Panel 2 Lower Slot Panel 3...
  • Page 5 Assembly STEP 1. Setting up the main frame Fig. 1B/1C Fig. 2 Fig. 1A Fig. 1A Fig. 1B Fig. 1C Fig. 2 1.1 Attach the Base Plate P to the Post A with Bolt (M6x15) FF as show in Fig.1A. 1.2 Attach the Long Beam B and Short Beam C to the Post A as show in Fig.1B.
  • Page 6 Assembly (continued) STEP 2. Attaching the roof frame Fig. 3 Fig. 3A Fig. 3B 2.1 Attach the Corner Roof Rib D to the long tube (78mm) on Roof connector N and attach the Middle Roof rib E to the short tube (68mm) on Roof connector N as show in Fig.3A. 2.2 Fix Hook DD to the central, insert the Hook DD through Roof Connector N and attach to the Roof Cover M as show in Fig.3B.
  • Page 7 Assembly (continued) STEP 3. Assembly roof frame Fig. 4 Fig. 4 Fig. 5 Fig. 4 Fig. 5 3.1 Mount the Corner Roof Rib D to U Bracket K at corner. Adjust to line up the pin holes at Corner Roof Rib D and U bracket K. Insert Pin AA through the pin holes to secure the Corner Roof Rib D to the U bracket K as show in Fig.4.
  • Page 8 Assembly (continued) STEP 4: Roof Panel assembly CAUTION: Critical step to finish the assembly! lt is recommended to have multiple hands to help for this assembly.Do not try to do this Fig. 6 assembly alone. It is a slow muscle taking Fig.
  • Page 9 Assembly (continued) STEP 5. Secure Gazebo to the ground Fig. 11 Fig. 11 5.1. Hammer Anchor EE through one of the holes at each post base into the ground to stablize the gazebo. Finally, please check and tighten all the bolts and nuts before you use it. Congratulations, you have done the gazebo set up!
  • Page 12 SKU: 6414-284 Code: 19JS00120203 Email: support@casualwayliving.com Home Hardware Stores Limited 34 Henry Street West, St. Jacobs, Ontario, Canada N0B 2N0...
